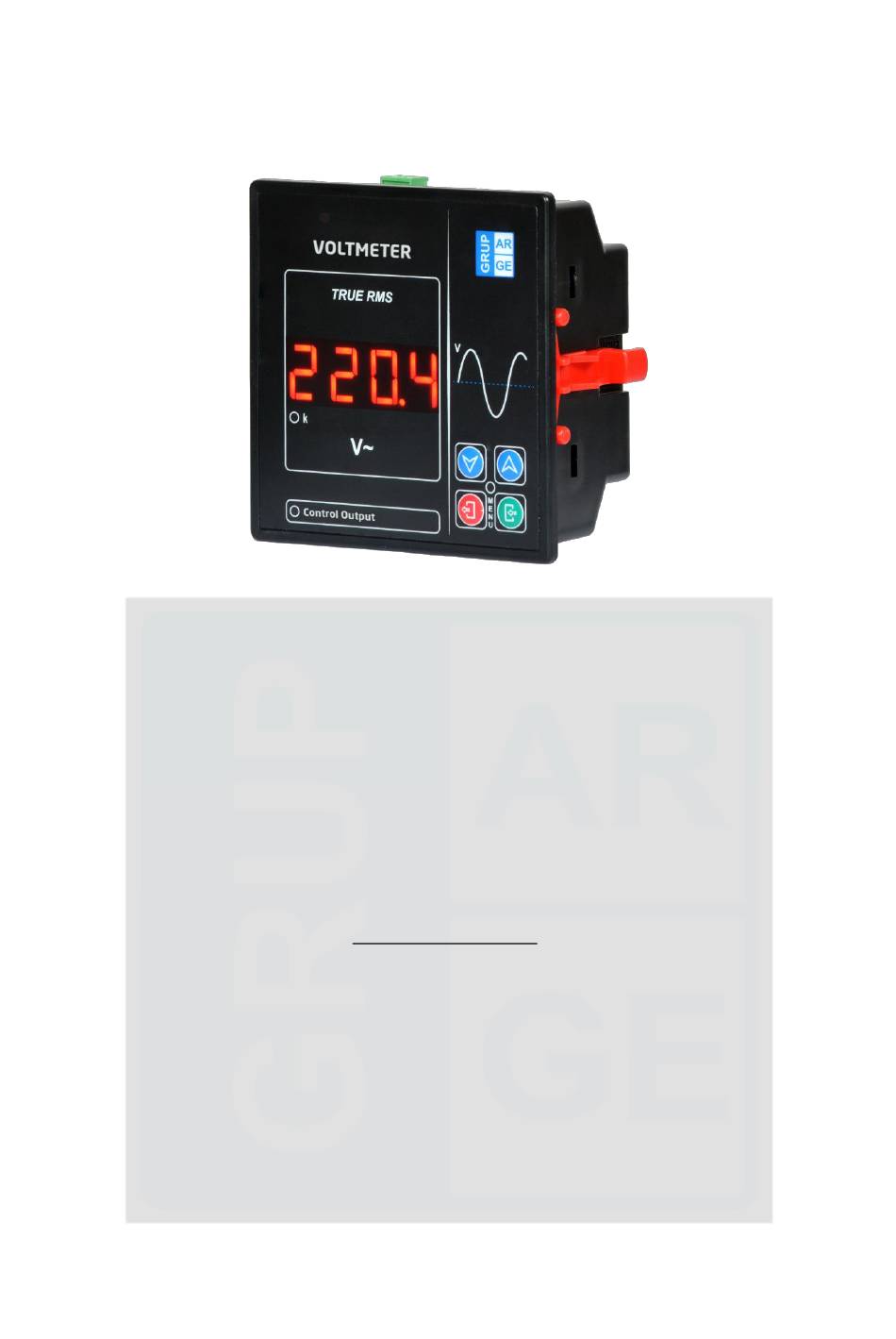

Voltmeter
Instruction Manual
GRUP ARGE ENERJİ VE KONTROL
SİSTEMLERİ SAN. ve TİC. LTD. ŞTİ.
İkitelli OSB Mah. YTÜ İkitelli Teknopark Sok.
No: 1/2B1-2B7-2B8-2B9 Başakşehir / İstanbul
Phone: +90 212 438 80 24
Fax: +90 212 438 80 25
Technical Support:
Phone: +90 212 438 61 17
Mobile Phone: +90 542 557 63 22
info@gruparge.com
www.gruparge.com
www.enerjitakibi.com
Version 19-2
Advertisement
Table of Contents
Summary of Contents for GRUP ARGE VTM 11
- Page 1 Voltmeter Instruction Manual GRUP ARGE ENERJİ VE KONTROL SİSTEMLERİ SAN. ve TİC. LTD. ŞTİ. İkitelli OSB Mah. YTÜ İkitelli Teknopark Sok. No: 1/2B1-2B7-2B8-2B9 Başakşehir / İstanbul Phone: +90 212 438 80 24 Fax: +90 212 438 80 25 Technical Support:...
-
Page 2: Table Of Contents
CONTENTS PROPER USE AND SAFETY REQUIREMENTS ......1 1. INTRODUCTION ................2 1.1 General Features................2 1.2 Technical Features ............... 2 1.3 Dimensions of the Device ............3 1.4 Measurable Line Parameters ............3 1.5 Buttons and Functions ..............3 1.6 Connection Diagram .............. -
Page 3: Proper Use And Safety Requirements
Voltmeter Instruction Manual PROPER USE AND SAFETY REQUIREMENTS Cut all the power when connecting and disconnecting the device to a panel. Do not clean the device with a solvent or similar material. Only use a dry cloth. Please do not intervene to the device when a technical problem is encountered and get in contact with a technical service within the shortest time. -
Page 4: Introduction

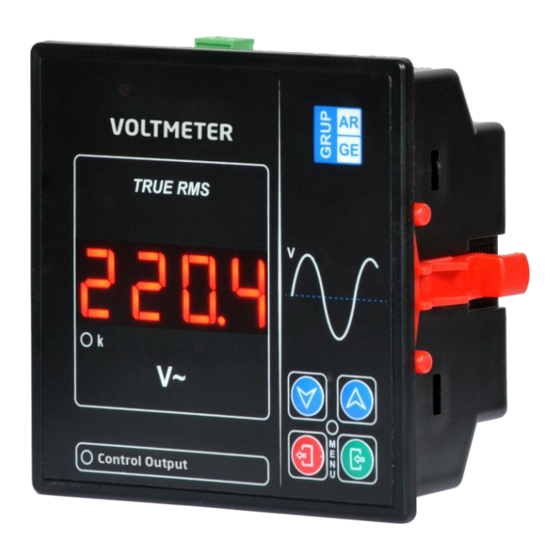

Voltmeter Instruction Manual 1. INTRODUCTION 1.1 General Features Voltmeter measures and calculate the voltage value that belongs to a single phase as True-RMS. The voltage transformer settings can be made via the menu. In the versions with the output feature, the relay is controlled according to the voltage value ranges that are set through the menu. -
Page 5: Dimensions Of The Device
Voltmeter Instruction Manual 1.3 Dimensions of the Device Figure 1.1 1.4 Measurable Line Parameters Voltmeter can make single phase voltage measurement. 1.5 Buttons and Functions PRG button enables to access the menu when on operation screen. It fulfills selection function when scrolling through the menu. It enables to return to the previous process and exit from the menu. -
Page 6: Connection Diagram
Voltmeter Instruction Manual 1.6 Connection Diagram Figure 1.2... -
Page 7: Installation
Voltmeter Instruction Manual 2.INSTALLATION 2.1 Device Installation Make the connections of the voltage input according to the Figure 1.2. Give energy to the device after checking and verifying the connections. 2.2 Installation Menu After giving energy to your device, the voltage measurement value is shown as in Figure 2.1 Figure 2.1 2.3 LED Descriptions... -
Page 8: Main Menu And Sub-Menus
Voltmeter Instruction Manual 3. MAIN MENU AND SUB-MENUS To enter menu, press the PRG button in the front panel of the device. The up and down buttons are used to scroll between menus in the device. There are five main menus in total. -
Page 9: Reverse Menu
Voltmeter Instruction Manual 3.3.1 Reverse Menu If “Yes” is selected in “Inur.” menu, the relay outputs are set reverse to the present status. 3.3.2 Type Menu By entering “type” menu, the parameter to produce output value will be selected. “Uolt” → The output controls are made via the voltage parameter. “None”... -
Page 10: Setb Menu
Voltmeter Instruction Manual 3.3.4 SetB Menu In “Set.b ” menu, a value is given if “Uolt” is selected in the “type” menu before. It indicates the quantity (0-1000) of B point in the Figure 3. If the voltage value is smaller than the value of point B that is determined in “Set.b” menu, the voltmeter output becomes “Off”... -
Page 11: Language Menu
Voltmeter Instruction Manual 4. LANGUAGE MENU The “lng” menu has two language options “tur” Turkish, and “Eng” English. When the language is changed, the menu and units will change. 5. SELECTION TABLE Table 5.1...
