Page 1 ® ESPRESSO COFFEE MACHINE Thermosiphonic System Multi Boiler System...

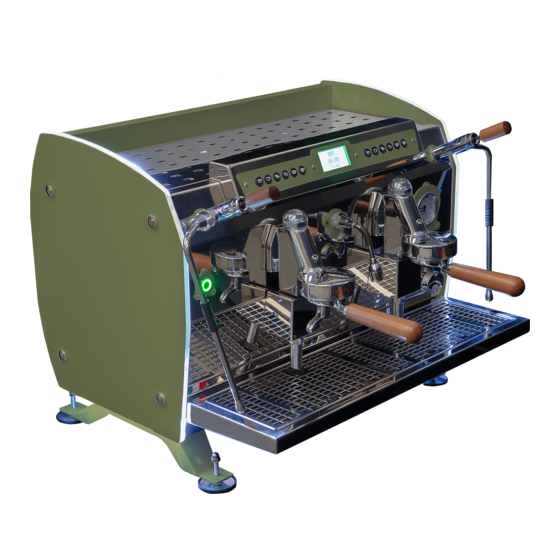

Page 3 ENGLISH Apollo Apollo is the machine that Prima Musa created to express the excellence of craftsmanship. In Greek mythology, the prophetic symbols of Apollo are the laurel, the bow and the arrows. Apollo...
Page 4: How To Use This Manual
• Before carrying out any maintenance operation, turn off the appliance from the mains using the main switch. • In case of failure or malfunction, immediately switch off the appliance, contact the specialized technician immediately, do not attempt any type of intervention and / or repair. Pag. 2 Apollo...
Page 5: Warranty
• Drain the entire volume of water from the boiler by making a continuous supply from the special lance, drain a minimum of 6 liters for 2 groups and a minimum of 8 liters for 3 groups. • Drain for at least 1 minute continuously from each individual steam wand. Apollo Pag. 3...
Page 6: Maintenance And Repair
The preparation of the machine and the installation operations must be carried out exclusively by qualified personnel. The installer must scrupulously observe the indications given in the chapter "warnings for the installer". Using the machine without carrying out all installation operations by technical personnel will void the warranty. Pag. 4 Apollo...
Page 7: Turning The Machine On
Insert the steam wand (s) into the liquid to be heated and operate the joystick or the tap knob, return the joystick to the central position or the knob closed after dispensing. Turning the knob anticlockwise the tap opens and allows the steam to escape, turning the knob clockwise closes the tap. Apollo Pag. 5...
Page 8: Cup Warmer
"Decrease" function of the numerical values or K2GR1 - (LESS) selection of the "preset" options relating to the parameter being programmed Confirmation function of some operations during K3GR1 ENTER programming Selection / selection function of the parameter to be - (MENU) K5GR1 programmed Pag. 6 Apollo...
Page 9 = customer name of your choice, functional states, alarms ……. that flow from right to left T°grx = group temperature T°cald = boiler temperature Max = boiler level Min = minimum boiler level IN IDLE-ON STATUS ALL LEDS ARE ON Apollo Pag. 7...
Page 10: Normal Mode
Pump and solenoid valve will remain active until the quantity of product (volumetric counter pulses) previously programmed is reached. The LED relating to the button for the selected dose remains lit for the duration of coffee brewing. Apollo Pag. 8...
Page 11 This operation de-energizes with immediate effect both the EVx delivery solenoid valve and the PUMP, interrupting the product delivery and returning the dosage to the IDLE-ON state STOP DELIVERY Apollo Pag. 9...
Page 12: Pre Infusion
IMPORTANT: THE START CONTINUOUS TO THE "CONTINUOUS" CYCLE IS ON THE RELEASE (WITHIN 5 SECONDS PENALTY TO THE PROGRAMMING PHASE) OF THE K5GRx KEY AND NOT ON ITS PRESSURE. THE POSSIBLE STOP DOSE, ON THE OTHER HAND, OCCURS ON PRESSING THE BUTTON ITSELF. Pag. 10 Apollo...
Page 13 Pressing the K6GRx key (of the group selected TECHNICAL Programming, see paragraph) activates the EVVAP until the temperature set in the Simulation Programming been reached (see paragraph below). However, you can stop early by pressing the steam button. START DELIVERY Apollo Pag. 11...
Page 14: Level Probe
-> LOW sensitivity 150 kΩ for example in the presence of a softener -> MEDIUM sensitivity 400 kΩ normal water -> HIGH sensitivity 1 MΩ for example in the case of mountain water or level glass Apollo Pag. 12...
Page 15 - any request for steam or tea dispensing without a coffee in progress keeps the boiler temperature active regardless of whether the coffee group heaters are active or not 17.2 PID ADJUSTMENT (DEFAULT SETTING) The default temperature adjustment is made following an algorithm called PID. The constants that determine thermoregulation are called Apollo Pag. 13...
Page 16 To turn on the heating, first press the K5GRx button and immediately after the K1GRx button. It is possible to switch off the heating of the steam boiler by following a specific procedure described in TECHNICAL Programming. Pag. 14 Apollo...
Page 17: Economy Mode
At the same time the LED relative to the programmed dose turns off and the remaining LEDs turn on; it is therefore possible to proceed with the programming of the remaining doses (also tea and steam doses if enabled) without having to repeat the entry operation (see point 1). Apollo Pag. 15...
Page 18 - ground coffee too fine or too pressed which allows a little water to filter 18.3 TEA DOSING PROGRAMMING It is possible to modify and memorize the quantities related to the tea doses (through timed control) following the following procedure: Apollo Pag. 16...
Page 19: Clock Programming
= current minute XXX = day of the week If you want to change the parameter, use the K1GR1 (+) or K2GR1 (-) keys then confirm with K5GR1. Pressing the K5GR1 key again switches to the automatic ignition setting. Apollo Pag. 17...
Page 20 If you do not wish to set a day off, select "------------". Only one day off can be set. 18.7 CONSUMPTION READING, LITERS, MAINTENANCE the display shows in the foreground Clock adjust pressing the K5GR1 key again switches to the reading of the counts: Pag. 18 Apollo...
Page 21: Technical Programming
TECHNICAL Programming and programming operations can only be carried out from the pushbutton panel of group 1. By accessing the TECHNICAL Programming in the previously described mode, the first TECHNICAL parameter appears on the display, i.e. the DISPLAY MODE: Apollo Pag. 19...
Page 22 K3GR1 (ENTER) key to confirm the letter / symbol / number and move on to the selection of the next letter / symbol / number. Arrangement of available characters blank " & < > ¥ Pag. 20 Apollo...
Page 23 If you want to change, you need to use the K1GR1 (+) or K2GR1 (-) keys; to go to the display of the next parameter, press K5GR1 (MENU). The choice to enable TEA DISPENSING WITH PUMP is displayed Apollo Pag. 21...
Page 24 If you want to change the parameter, use the K1GR1 (+) or K2GR1 (-) keys; to go to the display of the next parameter, press K5GR1 (MENU). The choice of the LEVEL SENSITIVITY setting is displayed: the display shows in the foreground ProbeSensivity Pag. 22 Apollo...
Page 25 0000 the function is disabled. If you want to change the parameter, use the K1GR1 (+) or K2GR1 (-) keys; to go to the display of the next parameter, press K5GR1 (MENU). Apollo Pag. 23...
Page 26 If you want to change the parameter, use the K1GR1 (+) or K2GR1 (-) keys; to go to the display of the next parameter, press K5GR1 (MENU). The ECONOMY FUNCTION SETPOINT TEMPERATURE setting is displayed. the display shows in the foreground Economy temper. xxxxx Pag. 24 Apollo...
Page 27 0.1 ÷ 99.9 ° C in 0.1 step. NOTE: the values are valid for all 3 groups By default, the regulation is PID with the following parameters: Apollo Pag. 25...
Page 28: Special Functions
K5GR1 (MENU) key until you return to the OFF state. SPECIAL FUNCTIONS 20.1 WASH The washing function can be activated for each group by first pressing the K5GRx button and immediately after the K1GRx button. T° gr1 T° gr2 T° gr3 xxxxxxxxxxxxxxxxx 1° T° Cald 2° Pag. 26 Apollo...
Page 29 LEDs, the intermittent acoustic signal will sound simultaneously. by the buzzer on the back of the RGB display board. The alarm is reset by removing and restoring voltage to the dosage. Apollo Pag. 27...
Page 30 If no pulses are detected for more than 5 consecutive seconds, the LED for the selected dose starts to flash (½ ON ½ OFF). THE LED IS FLASHING Apollo Pag. 28...
Page 31 NOTE: If the BUZZER function is enabled from the technical menu (see dedicated chapter), each time the above-described display occurs, the buzzer on the back of the RGB display board will sound simultaneously with 5 beeps consecutive. Apollo Pag. 29...
Page 32 NOTE: If the BUZZER function is enabled from the technical menu (see dedicated chapter), every time this signal intervenes, the buzzer on the back of the RGB display card will sound acoustically, through 5 consecutive beeps. To reset this signal, simply feed the dosage by holding down the K1GR1 and K2GR1 keys simultaneously. Pag. 30 Apollo...
Page 33 ATTENTION: the total deriving from the sum of all the deliveries made for each single key of each group cannot be reset NOTE: the consumption reset operation DOES NOT RESET the reading of the liters consumed; for this reset, refer to the appropriate paragraph. Apollo Pag. 31...
Page 34 When the preset is complete, the display shows: the display shows in the foreground Preset values completed To return to normal operation it is necessary to disconnect and restore power. The factory preset also clears all the counters, including the total doses performed. Pag. 32 Apollo...
Page 35: Default Parameters
Economy temperature 110°C Economy time 60 min Heated groups Group 1 temperature 117°C Group 2 temperature 117°C Group 3 temperature 117°C Offs TSet coffee 0.0°C KP KI KD 3.0 0.15 4.0 PID regulation 10°C Filling time-out Water filter Apollo Pag. 33...
Page 36 Failure to comply with the rules described above can cause serious damage to people, things and animals. Never work on the electrical and electronic system with the machine still connected to the electrical network and live. Deactivate the machine completely by disconnecting it from the network before carrying out any operation. Pag. 34 Apollo...
Page 37: Checks And Maintenance
INTERVENTION FOR TECHNICAL ASSISTANCE. DO NOT ATTEMPT ANY REPAIR INTERVENTION THE DISINSTATIONS OF THE EQUIPMENT MUST BE MADE BY SPECIALIZED TECHNICIANS SO THAT SUCH OPERATIONS DO NOT RESULT IN THE RELEASE OF MATERIALS HARMFUL FOR FOOD USE. Apollo Pag. 35...
Page 38 NECESSARY TO FOLLOW THE CLEANING FEATURES AND PRODUCTS SUITABLE FOR THIS PURPOSE DO NOT IMMERSE THE MACHINE IN WATER NEVER USE ALKALINE DETERGENTS, SOLVENTS, ALCOHOL OR AGGRESSIVE SUBSTANCES THE DESCALING OF THE EQUIPMENT MUST BE MADE BY SPECIALIZED TECHNICIANS Apollo Pag. 36...
Page 39 THERMAL PROTECTOR INTERVENES FOR Pump failure Technical Assistance AN OVERLOAD THE PUMP WORKS BELOW THE RATED Request the intervention of Pump failure CAPACITY Technical Assistance Request the intervention of THE PUMP IS NOISY Pump failure Technical Assistance Apollo Pag. 37...
Page 40 ON / OFF REGULATION WITH HYSTERESIS OF 2 ° C ONLY FOR STEAM BOILER Pag. 17.4 SWITCHING OFF AND SWITCHING ON OF INDIVIDUAL GROUPS Pag. 17.5 ECONOMY MODE Pag. PROGRAMS AND READINGS Pag. 18.1 COFFEE DOSES PROGRAMMING Pag. Pag. 38 Apollo...
Page 41 DEFAULT DATA PRESET Pag. 22.1 DEFAULT PARAMETERS Pag. PROCEDURES IN THE EVENT OF A NETWORK FALL Pag. TIPS FOR GETTING A GOOD COFFEE Pag. LIST OF RISKS Pag. CHECKS AND MAINTENANCE Pag. CLEANING Pag. MALFUNCTIONS AND RELATED REMEDIES Pag. Apollo...
Page 42 Copying and reproduction of content and images in any form is prohibited. Redistribution and publication of contents and images not expressly authorized by the author is prohibited. Apollo...
