Neilsen CT1562 Original Instructions

IMPORTANT:
PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY. NOTE THE SAFETY INSTRUCTIONS
& WARNINGS. USE THE PRODUCT CORRCTLY AND WITH CARE FOR THE PRRPOSE FOR
WHICH IT IS INTENDED.
Parameter
CAPACITY : 450Kg
MIN HEIGHT : 210 MM
MAX HEIGHT : 760 MM
Features
1. Air or Hydraulic Powered Mechanism
2. Removable plate for increased access, such as rear wheel removal
3. Adjustable foot for increased safety and stability
4. Safety set increases safety against accidental descent of table
Operation
1. Ensure that the table is at the minimum height, and that the ramp is in place.
2. Lock off the release valve, steadily pump the foot pedal until the table reaches a
required height, or using the air pump to lifting the motorcycle lift. Connect the
hose to the air feeder directly before operate the air pump, then press valve to
rise the table, and loosen the valve to stop.
3. Lock the safety set at the required height. Then repair the motorcycle.
4. After repairing, remove the safety set.
5. Steadily pump the foot pedal, Let the table lower
6.Remove the motorcycle from its stand and wheel it off the back of the table via the
ramp.
Maintenance
1. The mechanical parts of the lift, such as the foot pedal and release shafts should
be occasionally lubricated with heavy oil or grease.
2. Protect the lift cylinder from dirt or dust. If it becomes dirty, wipe it off with a clean
cloth.
3.Maintain and store the Lift in a reasonably protected environment. Do not expose
to rain or excess moisture. Protect from salt water or other corrosive materials.
Warning
1. Always check the lift before use,
2. Do not operate under the table, keeping hands and body away from the table
when it's operating. The air hose should be pulled from bottom, not on the table.
3. When lowing the table, take care to control the speed of descent.
4. When the table is at its highest elevated position, do not attempt to pump the
table higher as this can damage the mechanism.

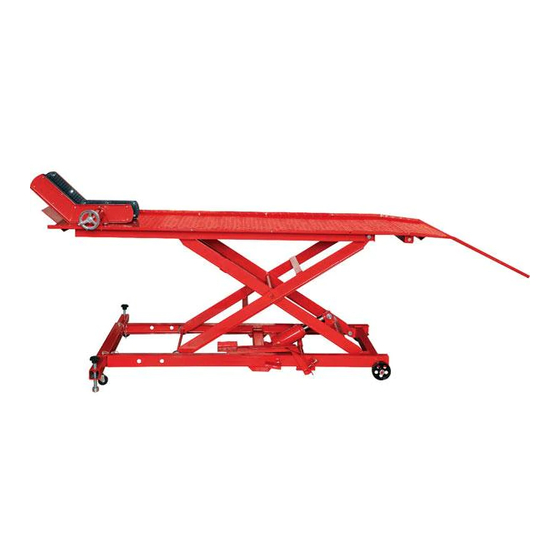

MOTORCYCLE LIFT - HEAVY DUTY CT1562
ORIGINAL INSTRUCTIONS
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE
