- Page 1 SHORT GUIDE Electrode inverter BOOSTER.PRO 230 REHM SCHWEISSTECHNIK...
- Page 2 17/08/2020 © REHM GmbH u Co. KG, Uhingen, Germany 2020 The content of this description is the property of Rehm GmbH u. Co. KG The copying and distribution of this document, its use and communication of its contents are strictly prohibited unless expressly authorized.
-
Page 3: Table Of Contents
Contents General safety instructions ................3 System description ..................5 Operation description ..................6 Overview oft he operating panel ..............6 Operation in the main menu (Menu 1) ............7 Current curve (Menu 2) ................8 Settings (Menu 3) ..................10 Circuit diagram ..................... -
Page 4: General Safety Instructions
• REHM welding systems are, except when this is expressly stated in writing by REHM, only for sale to commercial / industrial users and are only intended to be used by commercial / industrial users. - Page 5 DIN EN60974-10: 2008-09, Annex A. Qualification of the operating personnel REHM welding systems should be operated only by persons who are trained and instructed in the use and maintenance of welding systems. Only qualified, assigned and trained personnel may work on and with the system.
-
Page 6: System Description

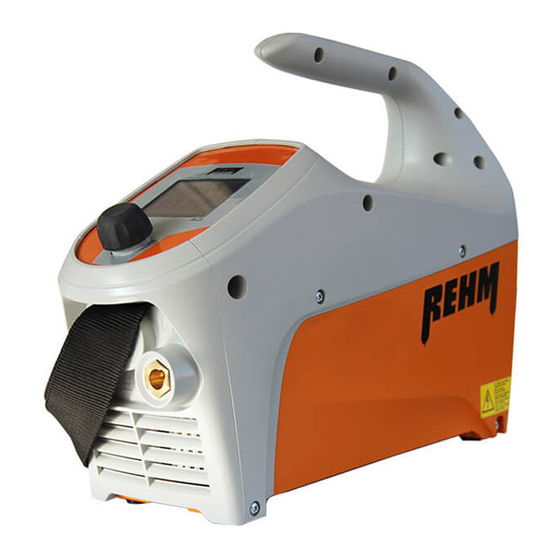

System description Front view Rear view Symbol Description Symbol Description Drawer – storage for Control panel - See "Description of electrodes, gas controls" nozzles, etc. Control panel push Main switch - On / Off and rotate knob Current socket "negative" TIG: TIG welding torch Power cable... -
Page 7: Operation Description
Operation description 3.1 Overview oft he operating panel Fig 1: BOOSTER.PRO 230 control elements Controls Function Main screen Operation via rotary encoder with push button. Fig. 1 Main screen Rotary encoder with push-knob Moves the pointer (cursor) on the screen clockwise or counter clockwise. -
Page 8: Operation In The Main Menu (Menu 1)
24V. If there are active pulses, the average value is used to set the current in the main menu. An error has occurred, restart the device. Contact the REHM customer service if the error persists. -
Page 9: Current Curve (Menu 2)
3.3 Current curve (Menu 2) Fig. 3: Current curve Symbols Description / function Menu Current curve Text display of the selected setting value (parameter) • Hotstart • Hot-start-time • Current I1 setpoint • Current I2 setpoint • Frequency for hyperpulses (frequency pulses) •... - Page 10 Symbols Description / function Pulse-current (I2) Only visible when time or hyperpulses (frequency pulses) are set. Pulse-current time (t2) or frequency (f) The time t2 or the alternating frequency f is set depending on whether time or hyperpulses (frequency pulses) are set. Arc Force Power to keep the arc stable.
-
Page 11: Settings (Menu 3)
3.4 Settings (Menu 3) Fig. 4: Settings menu Symbols Description / function Menu Settings Process menu: • Rutile electrode • Basic electrode • WIG LiftArc Software version of the machine - Power control Software version of the operation The fuse limitation can be activated or deactivated here. -
Page 12: Circuit Diagram
Circuit diagram... -
Page 13: Maintenance Work
When replacing parts only use REHM original spare parts. If maintenance or repair work is performed on this unit by persons who have not been trained and authorised to carry out the work by REHM, then claims against REHM beco- me void. - Page 14 EC. Directive 2006/42/EC article 1, paragraph 2 the above mentioned products fall exclusively within the scope of the directive 2014/35/EC relating to electrical equipment designed for use within certain voltage limits. This declaration is given for the manufacturer: REHM GmbH u. Co. KG Schweißtechnik Ottostr. 2 73066 Uhingen Uhingen, 17.08.2020 submitted by R.
- Page 16 Stand 08/2020 | Artikel-Nr. 7302157...
