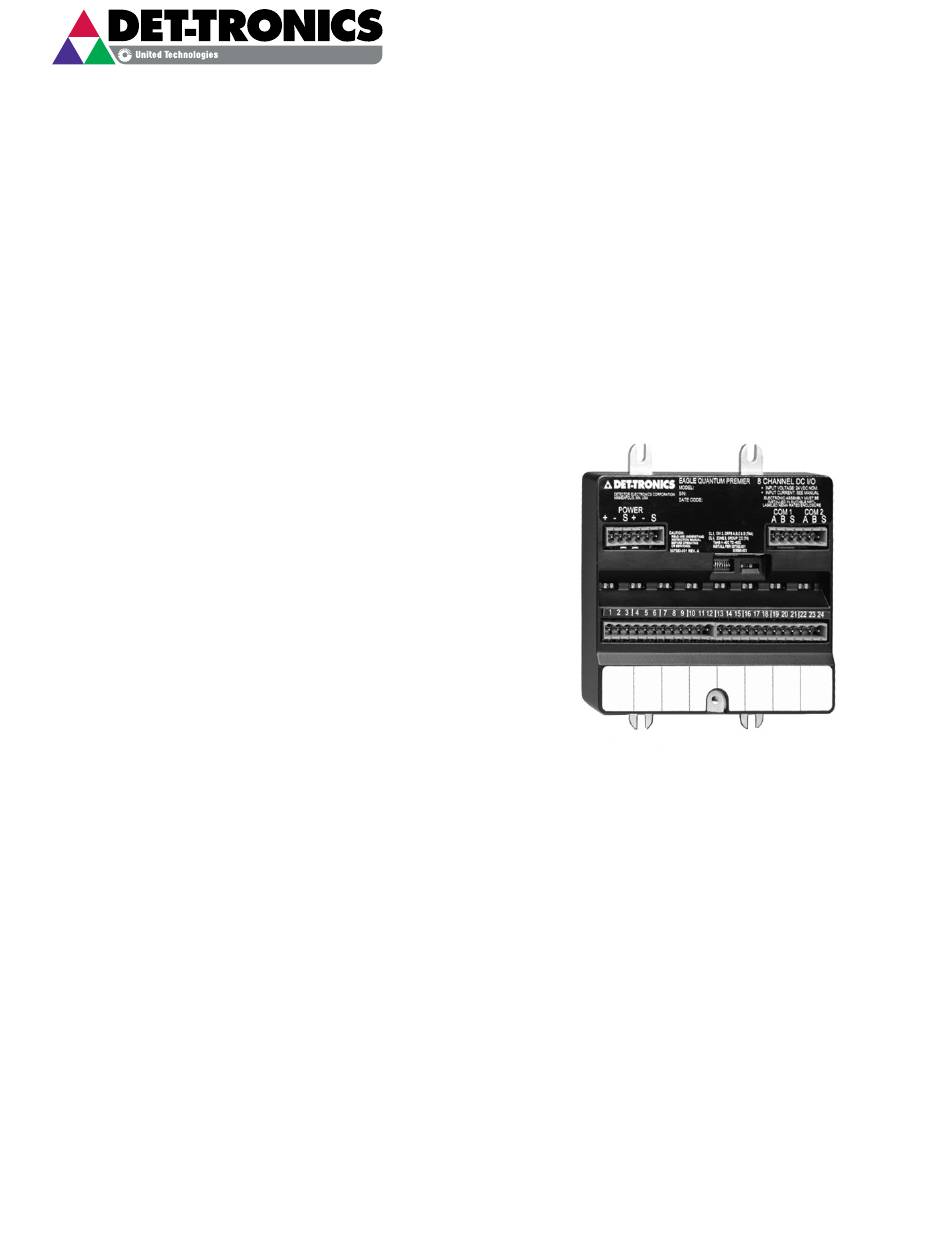

Det-Tronics Eagle Quantum Premier EQ3700DCIO Specification Datasheet

DESCRIPTION

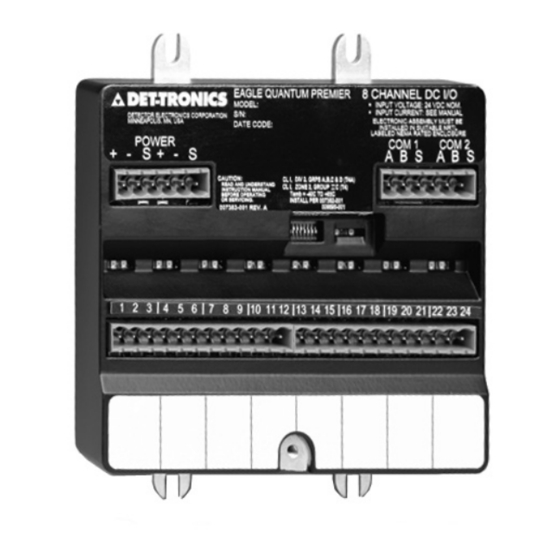

The 8 Channel DCIO Module is specially designed to
expand the Input and Output capability of the Det-
Tronics Eagle Quantum Premier
The unit is designed to provide continuous and
automated fire/gas protection, while ensuring system
operation through continuous supervision of System
Inputs/Outputs and Local Operating Network/Signalling
Line Circuit (LON/SLC) monitoring in the controller.
The DCIO module provides eight channels of
configurable input or output points that can be
programmed for supervised or unsupervised operation.
Each input point can accept fire detection devices such
as heat, smoke, or unitized flame detectors. Each output
point can be configured for signaling or releasing output
operation. Each channel on the module is provided with
individual indicators for active and fault conditions.
An input must be active for at least 750
milliseconds in order to be recognized.
The DCIO module can be mounted directly to a panel,
or it can be DIN rail mounted. System status can be
determined using the troubleshooting procedures,
Eagle Quantum Safety System Software (S
status indicators on the module.
©
Detector Electronics Corporation 2016
3.1
® (EQP) System.
NOTE
3 ) and the
Eagle Quantum
8 Channel Discrete
Input/Output Module (DCIO)

THEORY OF OPERATION

Each channel on the DCIO module can be configured
as an input to accept a connection from manual alarm
stations, heat sensors, smoke sensors, pressure
sensors, or as an output for notification or releasing.
Both input and output circuits can be configured as
either a supervised or an unsupervised point. Each
input point is also assigned a circuit type, such as:
Alarm, Trouble, Supervisory, Gas High, or Low Alarm, or
other. The DCIO module reports to the EQP Controller
and activates the appropriate static or user logic in the
EQP Controller.
SPECIFICATION DATA
® Premier
EQ3700DCIO
2/16 90-1149
