Allterco Robotics Shelly DUO WW/CW User Manual

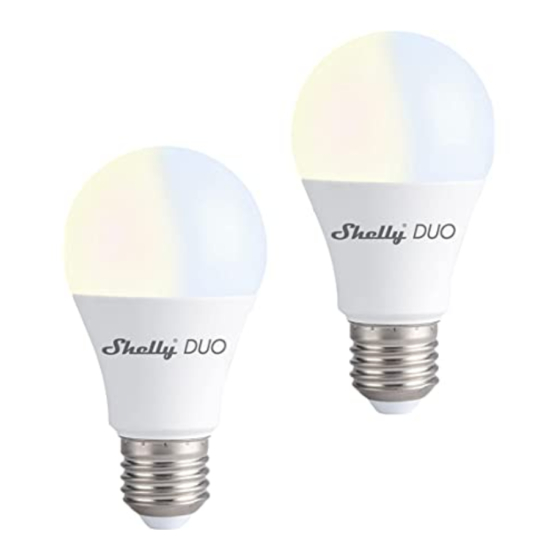

SHELLY DUO SMART BULB
The Shelly DUO (WW/CW or RGBW model) smart WiFi LED
bulb by Allterco Robotics is intended to be installed into a
standard light socket (E27/E26 or GU10) in order to change
the white temperature or color (depending on model) and to
dim the light. Shelly may work as a standalone device or as
an accessory to a home automation controller.
Specification
Power supply
Socket
Power Rating
Brightness
Color Temperature
Beam Angle
Working temperature
Complies with EU
standards
Radio signal power
Radio protocol
Frequency
Operational range
(depending on local
construction)
Dimensions
Electrical consumption
Technical Information
• Control through WiFi from a mobile phone, tablet, PC, automation
system or any other device supporting HTTP and/or UDP protocol
• Microprocessor management
• Controlled elements: multiple LED diods
• Shelly may be controlled by an external switch
Danger of electrocution. Plugging the device to
⚠CAUTION!
the power grid has to be performed with caution.
Do not allow children to play with the device.
⚠CAUTION!
Keep the devices for remote control of Shelly (mobile phones,
tablets, PCs) away from children.
Please handle with care! The Shelly
⚠CAUTION!
FRAGILE!
Introduction to Shelly
Shelly is a family of innovative Devices, which allow remote
®
control of electric appliances through mobile phone, PC or
home automation system. Shelly
the devices controlling it. They can be in the same WiFi net-
work or they can use remote access (through the Internet).
EN
110-230V ±10% 50/60Hz AC
E26/E27 GU10
9W 5W
Up to 800 lm Up to 400 lm
WW/CW (2700K-6500K); RGBW
190° 36°
From -20°C to 40°C
RED 2014/53/EU, LVD 2014/35/
EU, EMC 2004/108/WE, RoHS2
2011/65/UE
1mW
WiFi 802.11 b/g/n
2400 – 2500 MHz;
up to 30 m outdoors
up to 15 m indoors
60x122 mm 50x73 mm
< 1 W
®
uses WiFi to connect to
®
Shelly may work standalone, without being managed by a
®
home automation controller, in the local WiFi network, as well
as through a cloud service, from everywhere the User has
Internet access.
Shelly has an integrated web server, through which the User
®
may adjust, control and monitor the Device. Shelly
WiFi modes - access Point (AP) and Client mode (CM). To
operate in Client Mode, a WiFi router must be located within
the range of the Device. Shelly
directly with other WiFi devices through HTTP protocol.
An API can be provided by the Manufacturer. Shelly
may be available for monitor and control even if the User is
outside the range of the local WiFi network, as long as the
WiFi router is connected to the Internet. The cloud function
could be used, which is activated through the web server of
the Device or through the settings in the Shelly Cloud mobile
application.
The User can register and access Shelly Cloud, using either
Android or iOS mobile applications, or any internet browser
and the web site:
Installation Instructions
⚠CAUTION!
Device into the light socket please check if it has been pow-
ered off.
⚠CAUTION!
the accompanying documentation carefully and complete-
ly. Failure to follow recommended procedures could lead to
malfunction, danger to your life or violation of the law. Allterco
Robotics is not responsible for any loss or damage in case of
incorrect installation or operation of this device.
⚠CAUTION!
ply with all applicable regulations. Short circuit in the power
grid connected to the Device may damage the Device.
⚠CAUTION!
and the supplied voltage of your power grid before installing
the device! Installing the device to a non recommended power
supply may lead to malfunction, danger to your life or violation
of the law. Allterco Robotics is not responsible for any loss or
damage in case of incorrect installation or operation of this
device.
⚠RECOMMENDATION!
may control electric circuits and light sockets only if they com-
ply with the respective standards and safety norms.
Declaration of conformity
Hereby, Allterco Robotics EOOD declares that the radio
equipment type Shelly DUO is in compliance with Directive
2014/53/EU, 2014/35/EU, 2004/108/WE, 2011/65/UE. The
full text of the EU declaration of conformity is available at the
following internet address:
https://shelly.cloud/declaration-of-conformity/
Manufacturer: Allterco Robotics EOOD
Address: Sofia, 1407, 103 Cherni vrah Blvd.
Tel.: +359 2 988 7435
E-mail: support@shelly.cloud
Web: http://www.shelly.cloud
Changes in the contact data are published by the Manufac-
turer at the official website of the Device:
http://www.shelly.cloud
The User is obliged to stay informed for any amendments of
these warranty terms before exercising his/her rights against
the Manufacturer.
All rights to trademarks She
tual rights associated with this Device belong to Allterco Ro-
botics EOOD.
DUO is
devices can communicate
®
https://my.Shelly.cloud/.
Danger of electrocution. Before installing the
Before beginning the installation please read
Use the Device only with power grid which com-
Please check the working voltage of the device
The Device may be connected to and
and Shelly
®
has two
®
devices
®
, and other intellec-
®
