JRI YJ-390DA Instruction Manual

Dot multi printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DOT MULTI PRINTER
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YJ-390DA and is the answer not in the manual?

Questions and answers

Summary of Contents for JRI YJ-390DA

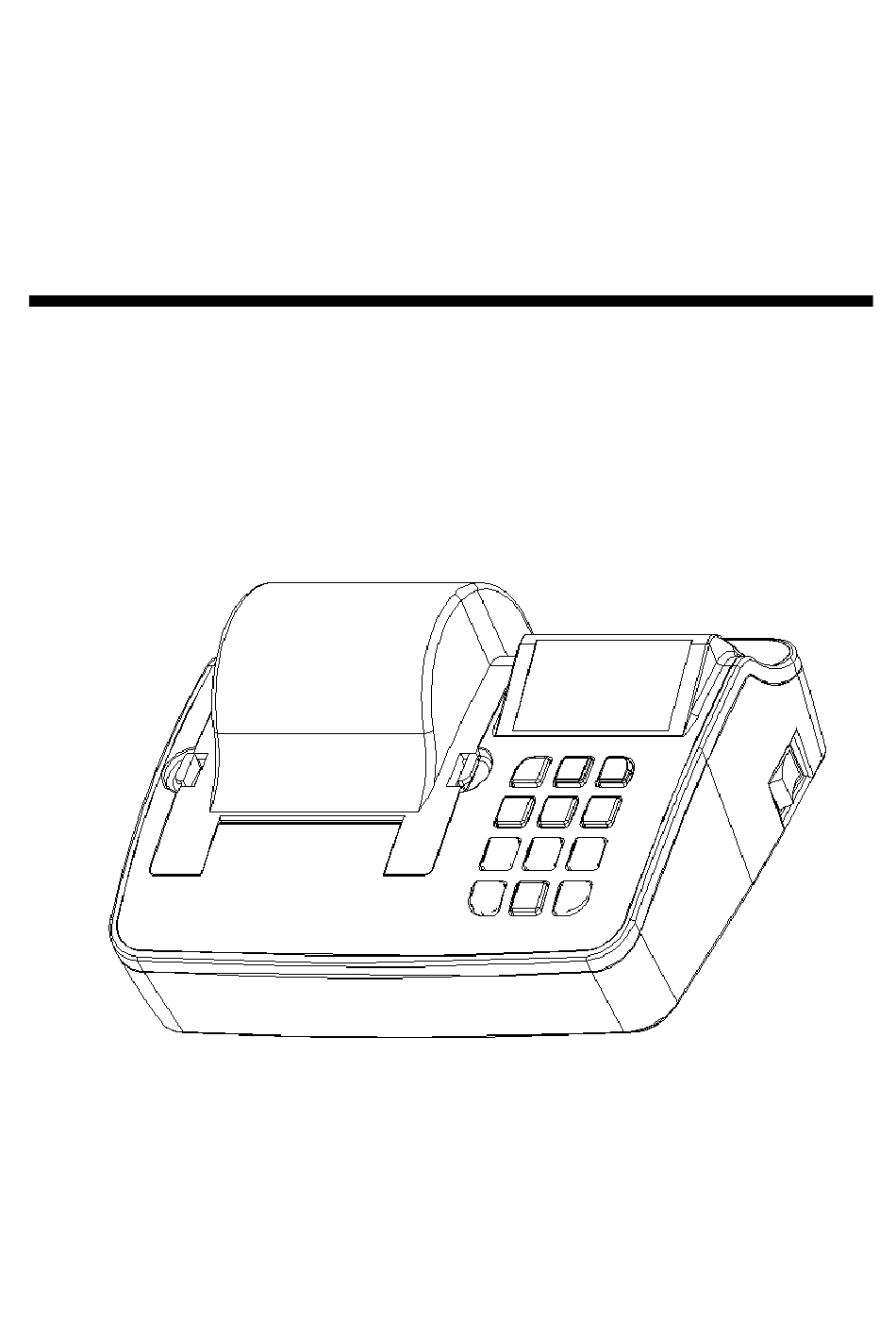

  • Page 1 DOT MULTI PRINTER INSTRUCTION MANUAL...
  • Page 2 Multi Printer CONTENTS Specifications 1-１ Items supplied 1-２ General specifications 1-３ Compatibility 1-４ External View 1-５ Names of Each Part 1-６ Installing the Printer Paper Functions 2-１ General Function Keys 2-２ General Settings 2-３ Printer Settings 2-４ Detailed Printer Functions Communication interface 3-１...

  • Page 3: Specifications

    Multi Printer Specifications 1-１ Items supplied The following items are supplied:  Printer  Test paper  Adapter  Serial cable  Instruction Manual 1-２ General Specifications ITEM Specifications Printing method 8 Pin Serial Impact dot matrix system Number of dot per line 240 DOT Printing speed 1.6 LINE/SEC...
  • Page 4 Multi Printer Company Model Balance, Scale SARTORIUS CP4201, BP410 AD Series, BW Series, CI Series, CUW/CUX Series, MW Series OHAUS Adventurer Series, Explorer Series PRECISA 480S,/480SCS Series, 24D Series, XB-4200C MATTLER AB204-S, PG5002-S SHIMADZU EL Series, BX-K Series, UW, UX Series, BL Series DESCOM GT-150,PC-100W SHINKO...
  • Page 5 Multi Printer 1-５ Names of Each Part [ Front ] Paper Cover Display Screen Paper Cover Fix Levers Power Switch Function buttons [ Rare ] Power Input Serial Interface External Input Port...

  • Page 6: Installing The Printer Paper

    Multi Printer Installing the Printer Paper 1-６ ① Do not send data to the print during installing the printer paper. ② Push the both fix levers to slide the printer paper cover in the direction of the arrow. ④ Insert the printer paper as shown below (the leading edge of the printer paper should head downwards).

  • Page 7: General Settings

    Multi Printer 2. Functions General Function Keys 2-１ Function "1" (TIME) Sets the time "2" (DATE) Sets the date "3" (MODE) Sets the modes "4" (CODE) Inputs or changes codes (this key does not function in NORMAL MODE) "5" (S-TOTAL) Prints subtotals (subtotal number of prints, weights measured, etc.) "6"...
  • Page 8 Multi Printer 2-2-1. Time Setting - Switch the power on and press “1” to enter the time setting mode. - The time is to be set in a 24-hour format, and use “0”~”9” keys to do so. (Example) TIME SET 10:48:57 Hour Minute Second ...
  • Page 9 Multi Printer 2-2-3. Mode Setting - In the turning on print, press “3”key for 1~2 seconds to move “PRINT MODE” setting. - In the print mode setting, use “▲” and “▼” buttons to change print mode. (Display) PRN MODE EXT.KEY* - Press “ENT”...
  • Page 10 Multi Printer 2-2-5. Various Keys to Print [Press PRINT or “0” to print measured data.] [ Press G-TOTAL to print totals ] Code : 00000001 = = = = = = = = = = = = = = = = = *****<...
  • Page 11 Multi Printer 2-2-6. Special Functions To access these functions, press and hold one of the following buttons as shown in the table when the power is off. Then, turn the power back on while pressing and holding the selected button. These functions allow users to access Printer Setting mode, print Printer Set-up Status and print or select Hex Dump.

  • Page 12: Printer Settings

    Multi Printer 2-３ Printer Settings This function is used to configure the printing as well as data communication methods between the printer and scales/balances. To access this function, press and hold “ESC” for 2 to 3 seconds when the power is on. (Example) ITEM SEL 1=SERIAL...
  • Page 13 Multi Printer  Printer Settings Flow Chart Make sure the power is on. Press and hold “ESC” button for 2 to 3 seconds to enter Printer Setting mode. 2 KEY 1 KEY 3 KEY ITME SEL ITME SEL ITME SEL 1 = SERIAL 2=VENDER 3=MODE...
  • Page 14 Multi Printer UNIT ※ Unit selection is applicable when some specified scales and balances TOTAL MD T/D YES are used T/D YES T/D NO 20 COL 24 COL COLMNS 30 COL 20 COL 40 COL ※ “COLMNS” is only available in PRINT CODE PRN NORMAL MODE...
  • Page 15 Multi Printer Detailed Printer Functions 2-４ 2-4-1. Serial Communication Item Description BAUDRATE - Configures Baud rate - The second line on the screen displays optional “BAUDRATE” values, and “*” at the right end of the screen is the current printer setting value of Baud rate. - Optional values : 300/600/1200/2400/4800/9600/19200 PARITY - Configures Parity.
  • Page 16 Multi Printer Item Value Description - Prints only when the print key on the electronic scales PRN MODE EXT. KEY * and balances is pressed by the user. (PRINT MODE) - Prints measured data only when “PRINT” key on the printer is MANUAL1 pressed by the user.
  • Page 17 Multi Printer CODE PRINT PRINT * Enables/Disables code printing. NOT PRINT CODE L <--- R * Configures the code progress direction. DIRECTION L ---> R NO PRINTER PRINT * Enables/Disables printing the number of measurements. NOT PRINT NONE * EXT IN1 Configures the functions when connected to EXT IN PORT1.
  • Page 18 Multi Printer 2-4-4. Details of Printer Mode AD-720Di provides 5 Printing Modes as follows. PRINT MODE Description  Prints only when “PRINT” key is pressed on the electronic scales and EXT. KEY MODE balances.  "ERROR" is not displayed on the screen although the printer is connected to an electronic scale.
  • Page 19 Multi Printer  Prints at a configured time interval. TIMER MODE  The interval time can be set within a range of 5 second to 1 hour.  If electronic scales/balances operate unusually for more than 6 seconds, “DATA ERR” is displayed on the screen and blinks the message.
  • Page 20 Multi Printer 2-4-5. Printer Data Forms Data can be printed in three different formats as below. Format Description  This format allows users to print measured data in sequence. FORM 1 Printing format e.g.) [Measured Data Printing ] [Total Printing ] CODE : 00000001 = = = = = = = = = = = = = = = = =...
  • Page 21 Multi Printer MANUAL 2 : Ready to receive TARE value. TARE RDY : Press “0” key to save TARE data. MANUAL 2 TARE RDY MANUAL 2 : Ready to receive NET value. NET RDY MANUAL 2 : Print “0” key to save NET data and proceeds PRINT to printing e.g.)
  • Page 22 Multi Printer  Press “ENT” key to save the tare value of the measured data. Prints FORM 3 Gross/TARE/NET by saving the “TARE” value in “ENT” key, and recognizing next measured data as “NET”.  Press “ENT” key to save the first measured data (not printed). ...

  • Page 23: Communication Interface

    Multi Printer Communication Interface Connector = D-SUB 9 MALE 3-１ RS-232C Serial Pin Pin No Signal Direction Description Input Receive data Output Transmit data  This signal indicates whether the printer can Output receive data or is not. Signal Ground 3-２...
  • Page 24 Multi Printer 3-４ External Input Pin  This signal allows users to print by the outer switch contact, when connected to serial interface.  This function can be supported by external input port.  Contact methods include Relay, Switch, and Photo-coupler. 3-4-1.
