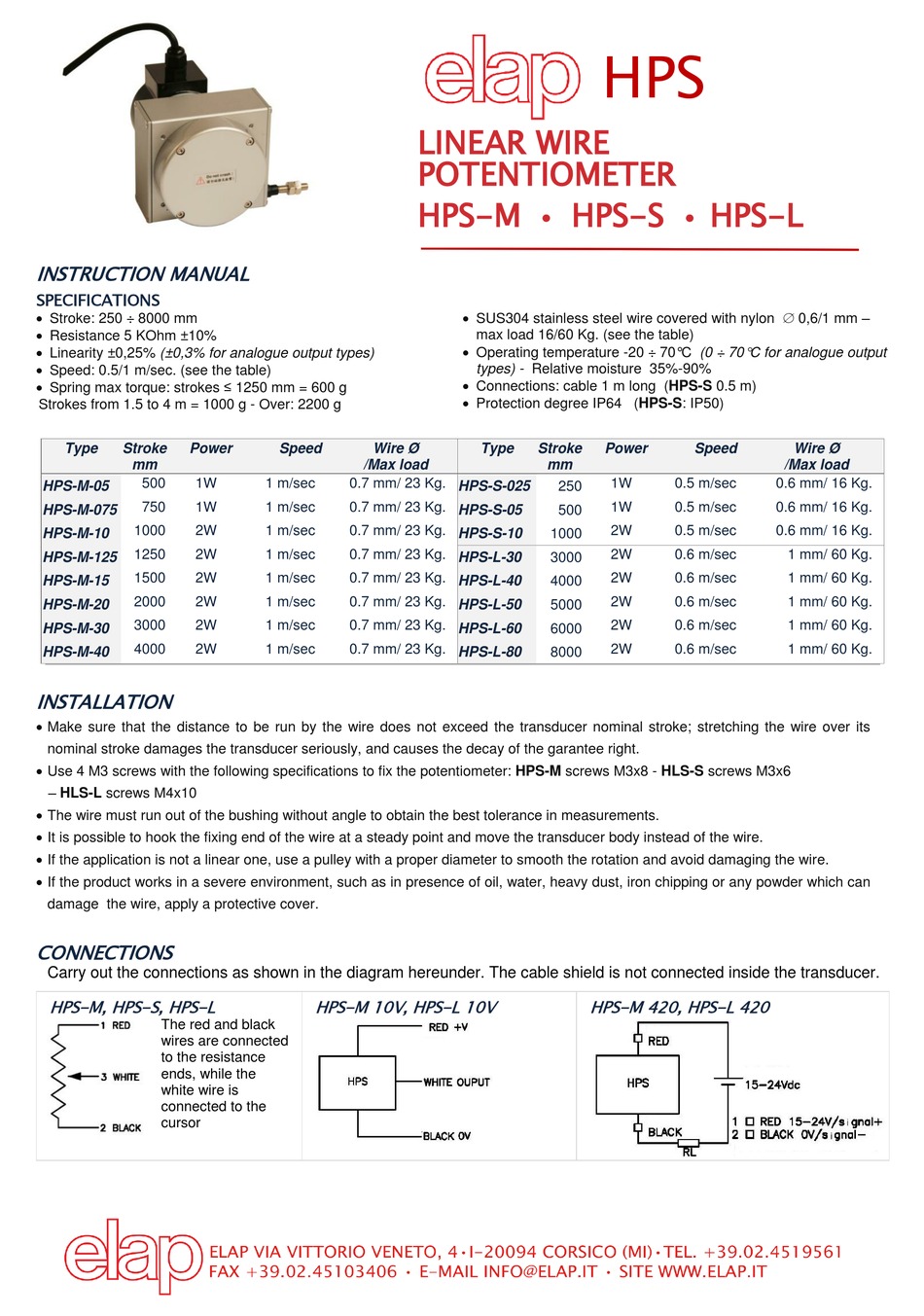

ELAP HPS-M-05 Instruction Manual

INSTRUCTION MANUAL
SPECIFICATIONS
 Stroke: 250 ÷ 8000 mm
 Resistance 5 KOhm ±10%
 Linearity ±0,25% (±0,3% for analogue output types)
 Speed: 0.5/1 m/sec. (see the table)
 Spring max torque: strokes ≤ 1250 mm = 600 g
Strokes from 1.5 to 4 m = 1000 g - Over: 2200 g
Type Stroke Power
mm
500 1W
HPS-M-05
750 1W
HPS-M-075
1000 2W
HPS-M-10
1250 2W
HPS-M-125
1500 2W
HPS-M-15
2000 2W
HPS-M-20
3000 2W
HPS-M-30
4000 2W
HPS-M-40
INSTALLATION
 Make sure that the distance to be run by the wire does not exceed the transducer nominal stroke; stretching the wire over its
nominal stroke damages the transducer seriously, and causes the decay of the garantee right.
 Use 4 M3 screws with the following specifications to fix the potentiometer: HPS-M screws M3x8 - HLS-S screws M3x6
– HLS-L screws M4x10
 The wire must run out of the bushing without angle to obtain the best tolerance in measurements.
 It is possible to hook the fixing end of the wire at a steady point and move the transducer body instead of the wire.
 If the application is not a linear one, use a pulley with a proper diameter to smooth the rotation and avoid damaging the wire.
 If the product works in a severe environment, such as in presence of oil, water, heavy dust, iron chipping or any powder which can
damage the wire, apply a protective cover.
CONNECTIONS
Carry out the connections as shown in the diagram hereunder. The cable shield is not connected inside the transducer.
HPS-M, HPS-S, HPS-L
The red and black
wires are connected
to the resistance
ends, while the
white wire is
connected to the
cursor

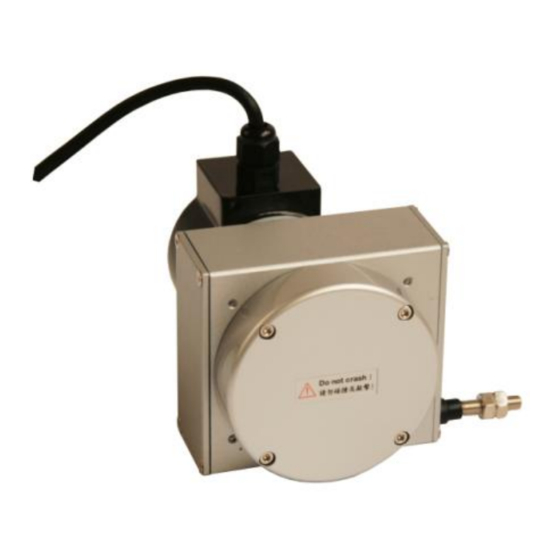

LINEAR WIRE
POTENTIOMETER
HPS-M
Speed Wire Ø
/Max load
1 m/sec 0.7 mm/ 23 Kg. HPS-S-025
1 m/sec 0.7 mm/ 23 Kg. HPS-S-05
1 m/sec 0.7 mm/ 23 Kg. HPS-S-10
1 m/sec 0.7 mm/ 23 Kg. HPS-L-30
1 m/sec 0.7 mm/ 23 Kg. HPS-L-40
1 m/sec 0.7 mm/ 23 Kg. HPS-L-50
1 m/sec 0.7 mm/ 23 Kg. HPS-L-60
1 m/sec 0.7 mm/ 23 Kg. HPS-L-80
HPS-M 10V, HPS-L 10V
HPS
HPS-S
●
 SUS304 stainless steel wire covered with nylon  0,6/1 mm –
max load 16/60 Kg. (see the table)
 Operating temperature -20 ÷ 70°C (0 ÷ 70°C for analogue output
types) - Relative moisture 35%-90%
 Connections: cable 1 m long (HPS-S 0.5 m)
 Protection degree IP64 (HPS-S: IP50)
Type Stroke Power
mm
1W
250
1W
500
2W
1000
2W
3000
2W
4000
2W
5000
2W
6000
2W
8000
HPS-M 420, HPS-L 420
HPS-L
●
Speed Wire Ø
/Max load
0.5 m/sec 0.6 mm/ 16 Kg.
0.5 m/sec 0.6 mm/ 16 Kg.
0.5 m/sec 0.6 mm/ 16 Kg.
0.6 m/sec 1 mm/ 60 Kg.
0.6 m/sec 1 mm/ 60 Kg.
0.6 m/sec 1 mm/ 60 Kg.
0.6 m/sec 1 mm/ 60 Kg.
0.6 m/sec 1 mm/ 60 Kg.
