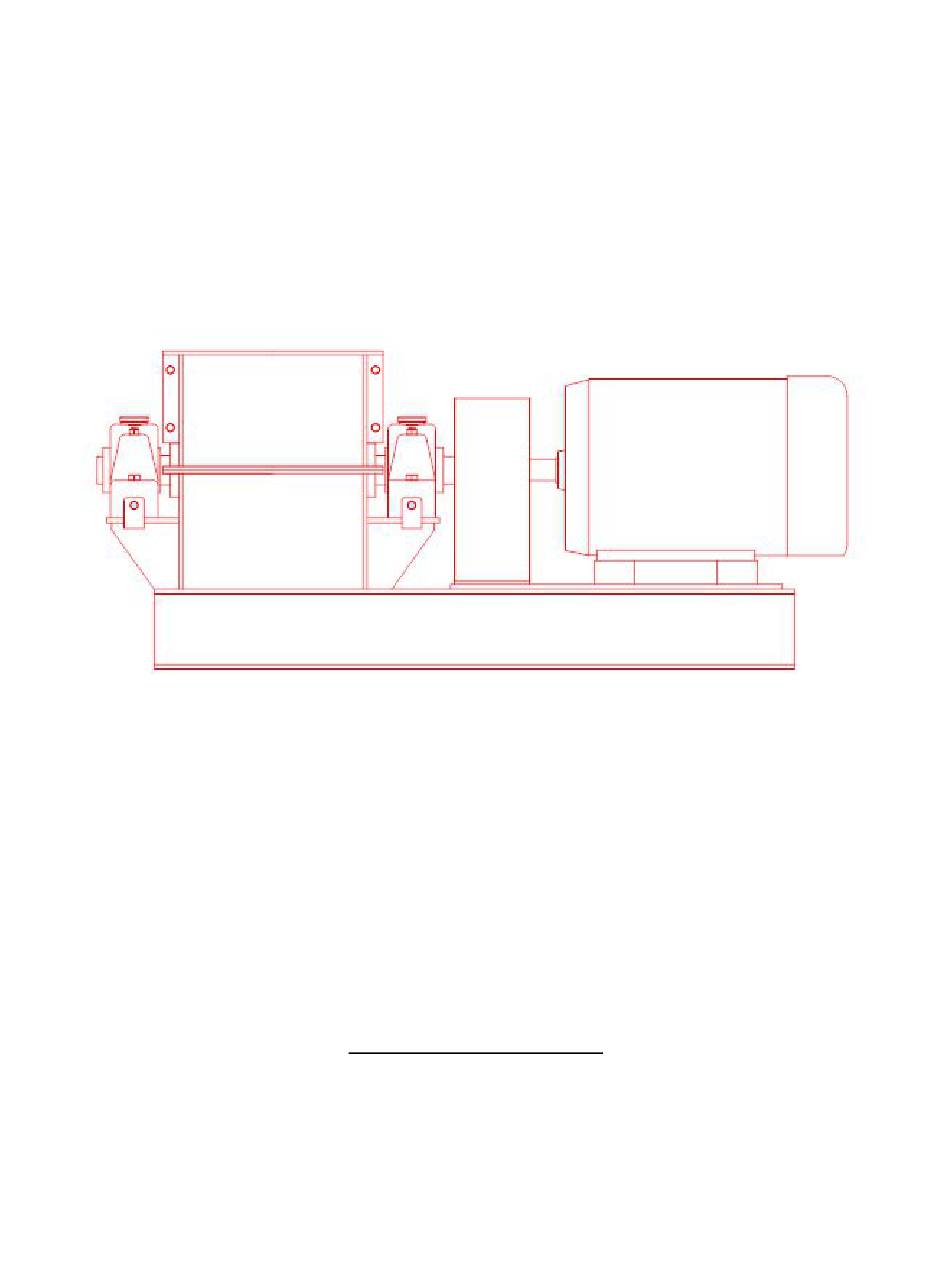

- Page 1 Operation & Maintenance Manual Series VS Shredder Vincent Corporation 2810 East 5th Avenue Tampa, FL 33605-5638 www.vincentcorp.com vincent@vincentcorp.com...
- Page 2 This page intentionally left blank.
-
Page 3: Table Of Contents
Contents Description Safety Installation and Mounting Electrical Service Connection Start Up Shut Down Cleaning Maintenance Order Information Nomenclature Drawing... -
Page 4: Description
The top of the housing is flanged for connection to the chute that feeds the shredder, assuring a tight fit. The Vincent Shredder is powered by a motor ranging from 10 hp on a small unit to 75 hp motor on a large unit. The motor is direct coupled to the rotor shaft. -
Page 5: Electrical Service Connection
supported to avoid misalignment. If the shredder is installed on a structural steel platform, leveling should be done by proper shims at the bolting points. The following service connections are required: 1) Electrical power for the main drive motor 2) Water hose connection for wash down ELECTRICAL SERVICE CONNECTION The shredder motor requires the specified rated voltage at the motor terminals under all operating conditions. -
Page 6: Shutdown
This is the purpose of this section. Bearings: The shredder is furnished with high quality bearings that have been selected by Vincent Corporation for the rated loads of the machine. However, this does not mean that the bearings do not need regular maintenance to have a long service life. - Page 7 Bearings should be greased while the shredder is running. One or two shots from a hand grease gun should provide a sufficient amount of grease. Familiarity with the machine will determine the exact amount required. The time interval from one application of grease to the next can only be determined from experience with the shredder in the environment in which it must operate.
-
Page 8: Order Information
EXAMPLE: (1) drive side bearing For shredder Model VS-18 Serial #20041-A Direct all correspondence to: VINCENT CORPORATION 2810 East 5th Ave. Tampa, Florida 33605 Tel: (813) 248-2650 Fax: (813) 247-7557 E-Mail: vincent@vincentcorp.com...
