Alpha Motors RS005 Instructions

ALPHA RS005 Motion Sensor Instructions
Note: cannot be used in conjunction with a sun/wind sensor
Techanical data:
Battery: 2 x AAA
Protection Index: IP44
Frequency: 433.92MHz

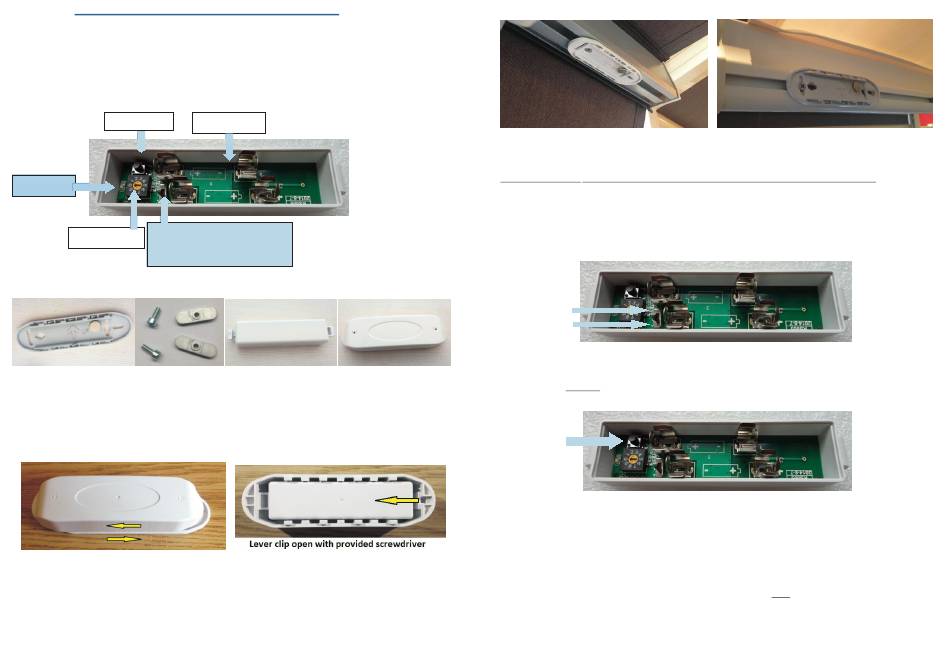

The Parts:

Learning button
Indicator light
Orientation switch for front/back or
Sensitivity Switch
underside installation
(Shown in front/back position)
Mounting Base Channel fixings
Opening the unit.

Installation:

Firstly, find a suitable position on the front bar of the folding arm awning to house the motion sensor. This
position should not obstruct the operation of the awning and should ideally allow the motion sensor to be
secured to the hollow channel and be close to either end. Mounting near the centre will affect the quality of
operation. The device can be mounted on either the front, back or underside of the bar as circumstances
allow.
Working current: 8mA
Temperature: -20℃ to +60℃
AAA battery x 2
Inner Casing
Outer Cover
(Contains the circuit board) (Contains the inner casing and
clips onto the mounting base)
Underside Mount
NOTE: Make sure to select the correct switch position on the circuit board for the mounting position used.
This is a crucial step , as incorrect switch position will render the unit unreliable or inoperable.
Setup
Select the correct position on the orientation switch (see image below)
NOTE: If mounted to the front or back of the leading bar then put switch into position 1.
If installed on the underside of the leading bar, then put switch into position 2.
Position 2
underside
Position 1
front/back
Install Batteries
Install 2 x AAA Alkaline batteries in the battery holders . The LED will flash to confirm the batteries are
correctly installed. If not, check if the batteries' + and – are correct.
Learning button

1. Assigning the Motion Sensor to the motor

Pick up the awnings remote and make sure it is on the correct channel for the awning if it's a multi-
channel remote.
Press remote's up and down simultaniously then release, then press stop 8 times, the motor will jiggle
th
after the 8 press.
Within 10 seconds of getting the jiggle, press and quickly release the "Learning Button" on the motion
sensor, the motor will jiggle again, motion sensor's LED will flash once. The motion sensor is now paired
to the motor.
Note: If the LED flashes several times, you have held the learning button for too long and sent a
delete command instead. Repeat the step above and make sure to only give the learning button a
quick press and release.
Page 1.
Back Mount
