PIEXX FT-726T Manual

Direct reading ctcss tone encoder/decoder for the yaesu ft-726 transceiver

Table of Contents

Download this manual

Direct Reading CTCSS Tone Encoder/Decoder for the Yaesu

Introduction

The PIEXX FT-726T is a version of our ToneLCD board

specifically manufactured for use in the Yaesu FT-726 transceiver.

The FT-726T mounts in place of the original scan board in the top

cover of the FT-726 and replaces the functionality of that board as

well as adding CTCSS tone encoder and decoder functions.

• Encoder / Decoder for both transmit encode and receive tone

squelch decode operation.

• Find mode detects CTCSS tone that the receiver hears for

automatic operation.

• Mounts in place of the original FT-726 scan switch board.

• Low power consumption

• Easy installation

• Easy to Operate

• Fully configurable Power Up State.

PIEXX FT-726T

FT-726 Transceiver

Table of Contents

Do you have a question about the FT-726T and is the answer not in the manual?

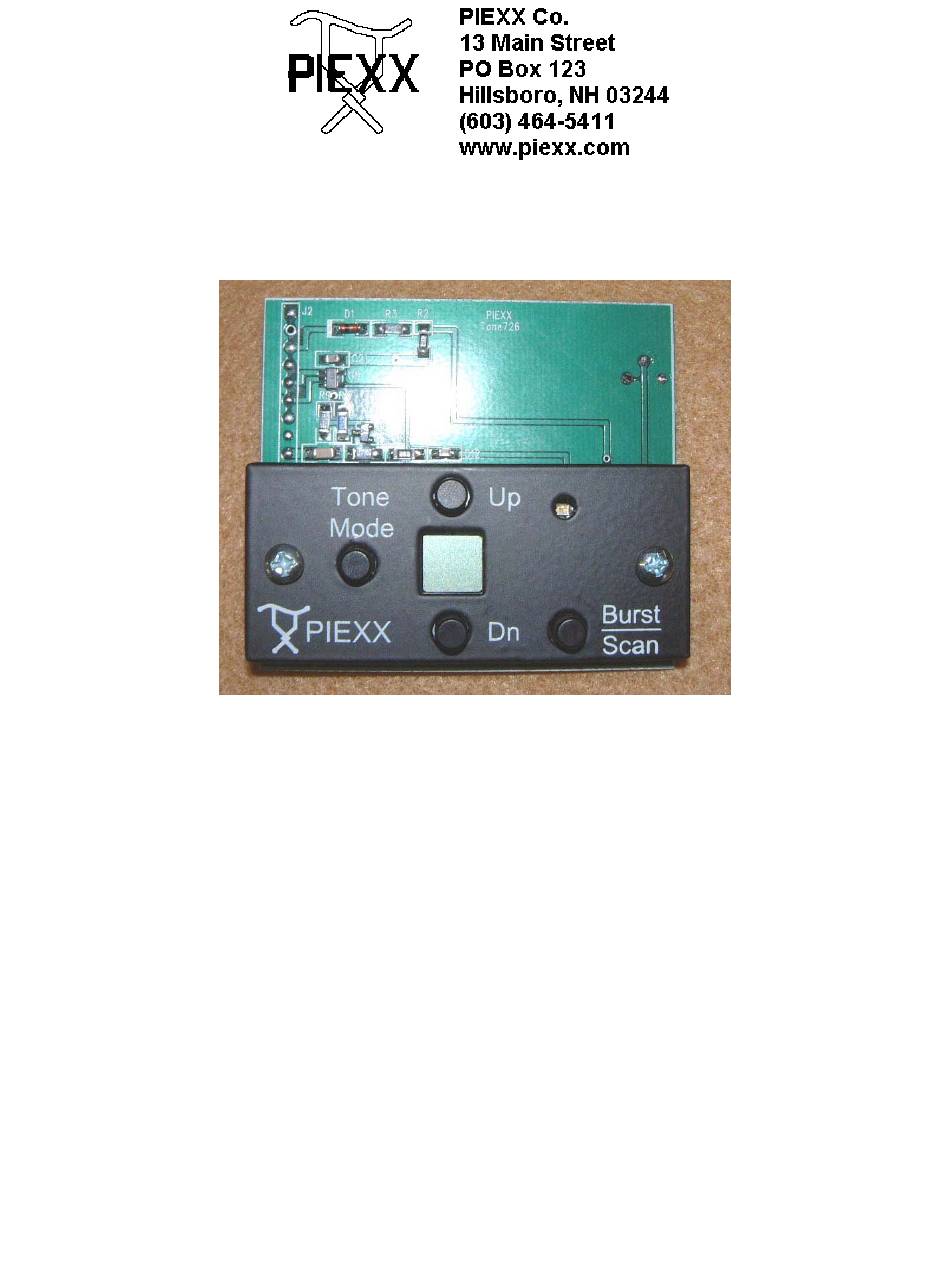

Page 1 The PIEXX FT-726T is a version of our ToneLCD board specifically manufactured for use in the Yaesu FT-726 transceiver. The FT-726T mounts in place of the original scan board in the top cover of the FT-726 and replaces the functionality of that board as well as adding CTCSS tone encoder and decoder functions.
Page 2 Scan Switch board. Install the 12 position cable onto the connector pin strip on the FT-726T. Note that there is a missing pin on the FT-726T that should align with the missing pin hole in the connector.
Page 3 Operation The FT-726T has four modes of operation associated with the CTCSS as well as various setup functions that take the place of the original Scan Switch operations. CTCSS Tone Mode The 4 CTCSS modes of operation are selected by momentarily pressing the...
Page 4 If no valid CTCSS tone is sensed, --- is displayed. In the FIND mode, if a valid CTCSS tone is present for approximately ½ second, the FT-726T’s tone frequency is set to that tone. This allows a semi automatic mode of operation. If the FT-726T finds a valid tone, the next time you key up you will be transmitting on that same tone.
Page 5 60 seconds until the Scan / Burst setup mode times out. If the Scan / Burst setup mode times out, the parameter you changed will not be saved. http://www.piexx.com/...
