SPREAD CYLINDERS
"CY0109" "CY0109G"
"CY0122" "CY0122P"
LARZEP, S.A.

Avenida Urtiaga, 6
48269 Mallabia, Spain
Tel.  +34  943 171200
Fax. +34  943 174166
e‐mail: info@larzep.com
www.larzep.com
V12.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CY0109 and is the answer not in the manual?

Questions and answers

Summary of Contents for Larzep CY0109

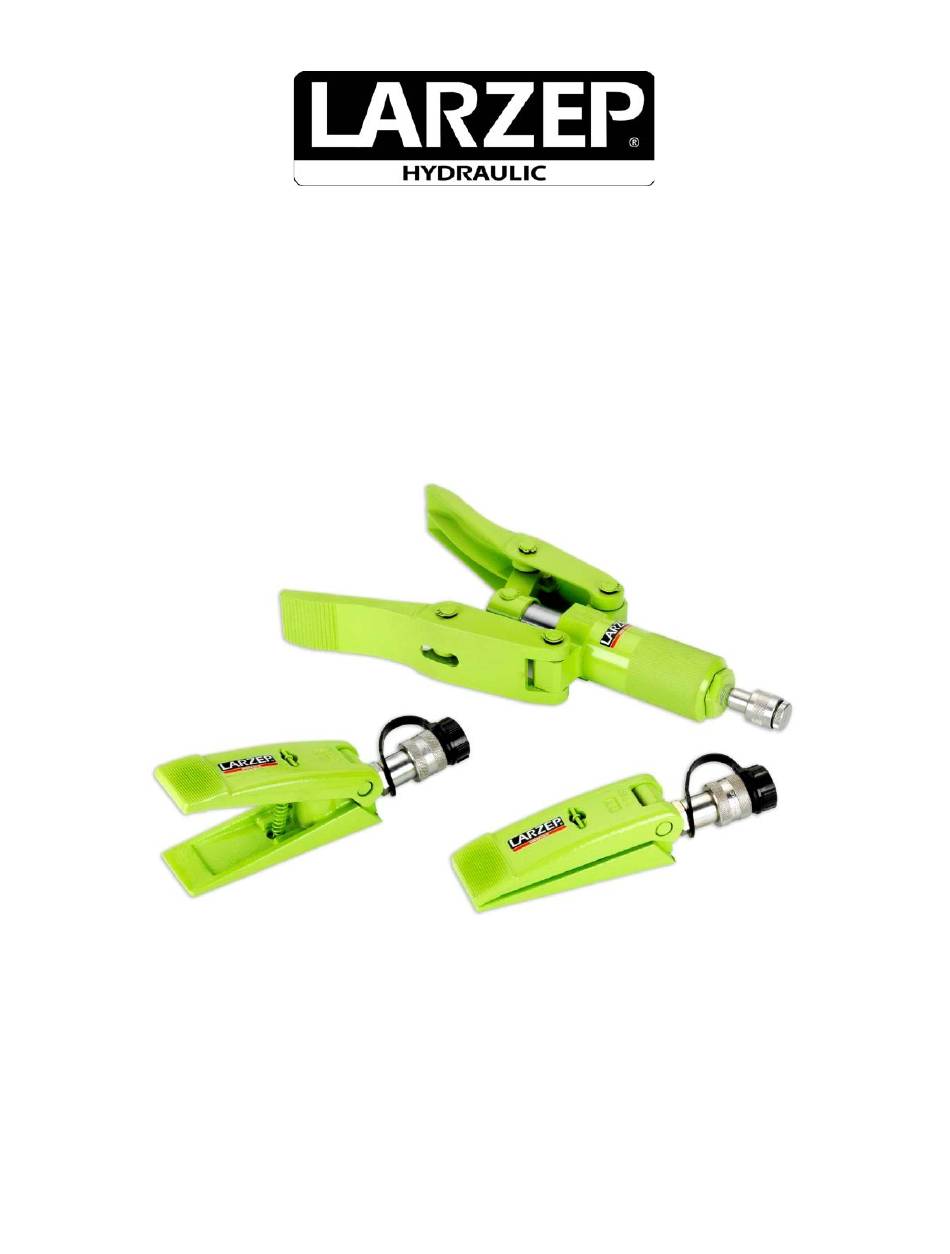

  • Page 1 SPREAD CYLINDERS  “CY0109” “CY0109G”   “CY0122” “CY0122P”  LARZEP, S.A.   Avenida Urtiaga, 6  48269 Mallabia, Spain  Tel.  +34  943 171200  Fax. +34  943 174166  e‐mail: info@larzep.com  www.larzep.com V12.20 ...
  • Page 2 124  6      Have in mind that the technical features for the references CY0109 and CY0122P are the same as the references   CY0109G and CY0122, except the coupler.   The references CY0109 and CY0122P are provided with a low flow female quick coupler AZ3240, whereas the references CY0109G and CY0122 are provided with a high flow female quick coupler AZ3140.
  • Page 3 LARZEP, S.A.    Please note that if the equipment is disassembled or serviced by anyone other than an authorized service dealer or by LARZEP, S.A.,  this guarantee is rendered null and void.    In  the  event  of  a  warranty  claim,  return  the  equipment,  to  LARZEP,  S.A.  or  the  authorized  dealer  which  sold  you  the  hydraulic  equipment, LARZEP, S.A. will repair or replace the faulty equipment, whichever is deemed most appropriate. LARZEP, S.A. shall not  be held liable for any consequential damages or losses, which may occur as a result of faulty equipment       ...
  • Page 4 Instruction Manual  Spread Cylinders “CY0109” “CY0109G” “CY0122” “CY0122P”  5. DECLARATION OF CONFORMITY    4 ...
  • Page 5 Instruction Manual  Spread Cylinders “CY0109” “CY0109G” “CY0122” “CY0122P”      SPREAD CYLINDER  CY0109G  CAPACITY  1 Tn (9.81 kN)  MINIMUN HEIGHT  15 mm  MAX.TIP CLEARANCE  90 mm  WEIGHT  2 kg          N  DESCRIPTION  REFERENCE  Nº  PIECES  1  BASE  50H0004  1  2  JAWS  24L0006  1  3  PISTON  53I0001  1  4  SADDLE  56P0001  1  5 ...
  • Page 6 Instruction Manual  Spread Cylinders “CY0109” “CY0109G” “CY0122” “CY0122P”        SPREAD CYLINDER  CY0122    CAPACITY  0.8 Tn (7.78 kN)    WORKING PRESSURE  700 bar    MIN. HEIGHT  36 mm    MAX. TIP`CLEARANCE  210 mm  AREA  11.34 cm2    OIL CAPACITY  62.37 cm3    WEIGHT  6.7 kg                *SEAL KIT JR.CY0122, for ref. CY0122 and CY0122P. ** Reference CY0122P is provided with the AZ3240 quick coupler.  6 ...

This manual is also suitable for:

Cy0109gCy0122Cy0122p
