StreetWise Instructions

Illuminated Digital

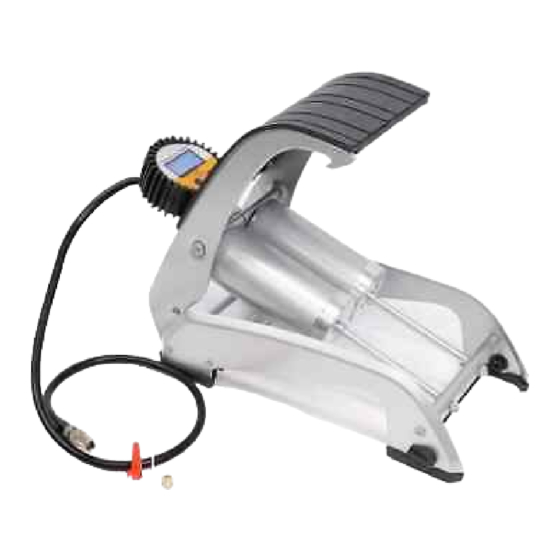

Double Piston Foot Pump
Stylish and practical foot pump with dual pistons and wide footpad
Instructions.
Please read and understand these instructions before any
use and retain for future reference.
Step 1: Open.
Press the pedal towards the feet and with the other hand,
rotate button/clasp (A) slowly, to release the black bar
from the hooks on the foot plate.
Step 2: Connect to tyre.
Place the valve (B) on to the vehicle valve and screw to tighten.
Step 3: Choose pressure unit.
Press the 'LIGHT' button (C), then press 'UNIT' button (C) to
select the pressure unit you require (PSI, Bar, Kgf/cm
Step 4: Pump up the tyre.
Check the correct pressure required for the item being
the tyre to the required pressure.
Step 5: Disconnect from the tyre.
Press the pedal towards the feet and with the other hand,
rotate yellow button/clasp slowly (A), to secure the black bar
onto the hooks on the foot plate.
Replacing batteries: Turn pressure gauge in the direction of
the arrow opposite (C). Remove from foot pump, underneath
are two battery compartments, remove the battery cover and
replace batteries (2 x AAA not supplied), taking care to ensure
the battery is inserted correctly. Replace the covers and
re-attach the pressure gauge turning in the opposite
direction until it is tight.
2
, or KPA).
SWFPJ3
A
B
