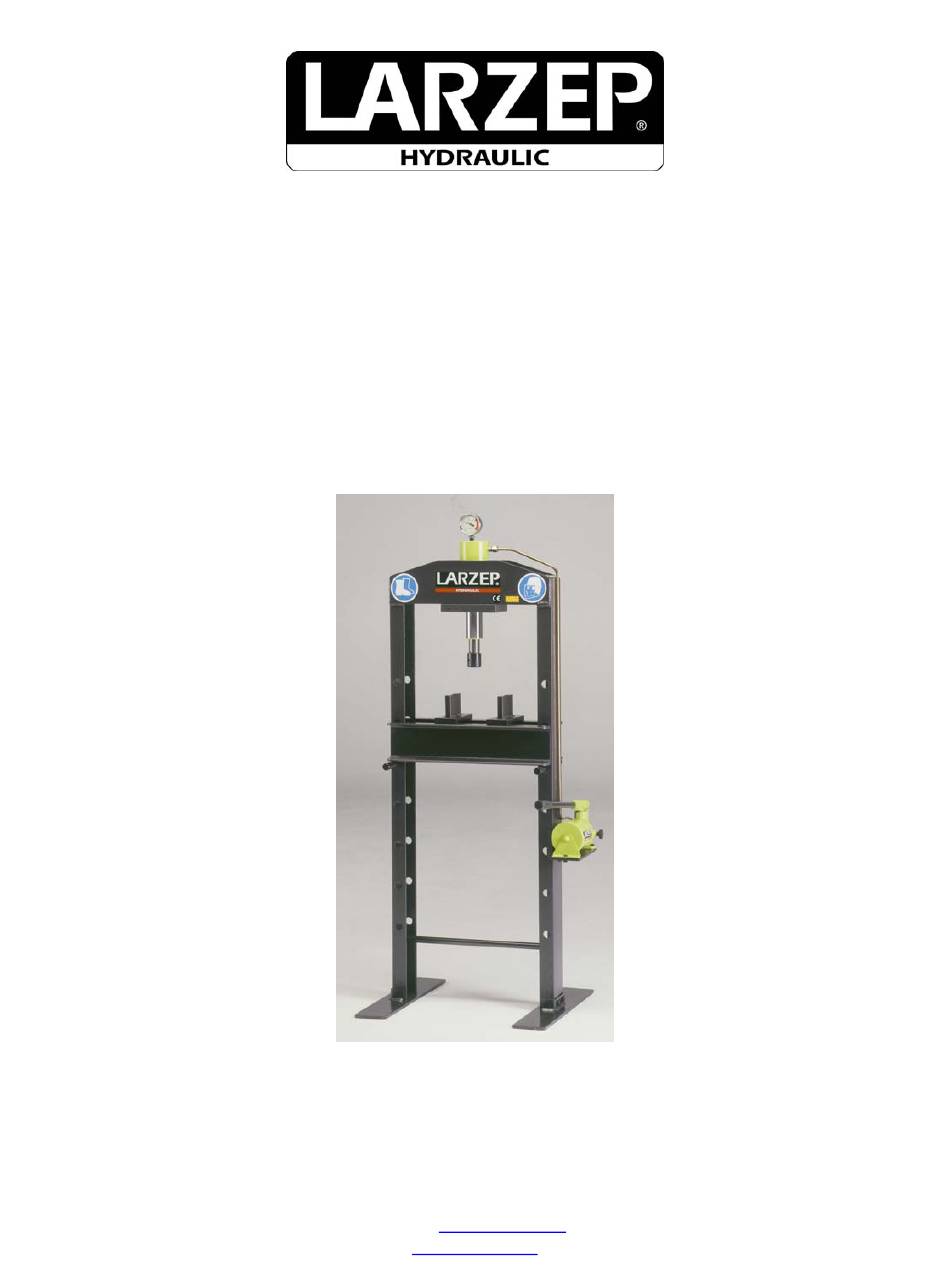

- Page 1 COLUMN PRESS 60 ton WITH HAND PUMP “EM06018” LARZEP, S.A. Avenida Urtiaga, 6 48269 Mallabia, Spain Tel. +34 943 171200 Fax. +34 943 174166 e‐mail: info@larzep.com www.larzep.com...
- Page 2 Hands protection Used materials and components are not for the health and safety of operators. The hand pump contains LARZEP hydraulic oil ISO: HV46. HIDRAULIC OIL IS TOXIC IF IT ENTERS THE BLOODS STREAM. NEVER PLACE A FINGER OVER ANY ORIFICE OR LEAK, WHICH COULD BE PRESSURIZED, SUCH AS THE HYDRAULIC LINE, AS THIS COULD CAUSE OIL TO BE INJECTED INTO BLOOD STREAM.
- Page 3 The hydraulic circuit of the press is closed, so in normal conditions no oil leakage should be coming up. In case of oil leakage, after the proper repairing work, you should fill up the tank with hydraulic oil by LARZEP (Ref. AZ8901); the pump is equipped with an oil level indicator to control the need quantity of oil.
- Page 4 INSTRUCTION MANUAL Column Press with Hand Pump "EM06018" 7. DECLARATION OF CONFORMITY...
- Page 5 INSTRUCTION MANUAL Column Press with Hand Pump "EM06018" GENERAL DRAWING...
- Page 6 INSTRUCTION MANUAL Column Press with Hand Pump "EM06018" CYLINDER SM06018...
- Page 7 INSTRUCTION MANUAL Column Press with Hand Pump "EM06018" HAND PUMP W21807...
