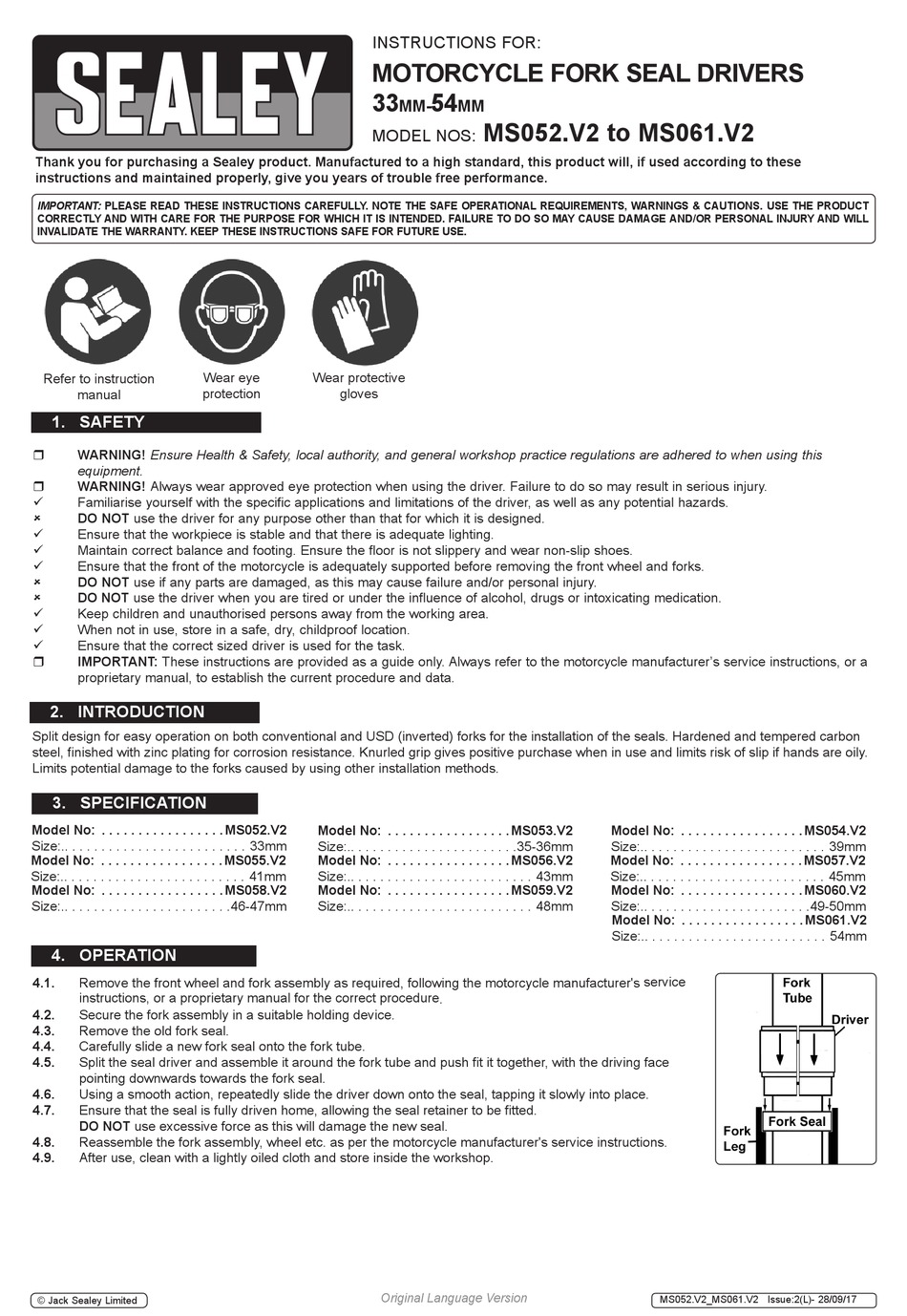

Sealey MS052.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to instruction
manual
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this

equipment.
WARNING! Always wear approved eye protection when using the driver. Failure to do so may result in serious injury.

Familiarise yourself with the specific applications and limitations of the driver, as well as any potential hazards.

DO NOT use the driver for any purpose other than that for which it is designed.

Ensure that the workpiece is stable and that there is adequate lighting.

Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

Ensure that the front of the motorcycle is adequately supported before removing the front wheel and forks.

DO NOT use if any parts are damaged, as this may cause failure and/or personal injury.

DO NOT use the driver when you are tired or under the influence of alcohol, drugs or intoxicating medication.

Keep children and unauthorised persons away from the working area.

When not in use, store in a safe, dry, childproof location.

Ensure that the correct sized driver is used for the task.

IMPORTANT: These instructions are provided as a guide only. Always refer to the motorcycle manufacturer's service instructions, or a

proprietary manual, to establish the current procedure and data.
2. INTRODUCTION
Split design for easy operation on both conventional and USD (inverted) forks for the installation of the seals. Hardened and tempered carbon
steel, finished with zinc plating for corrosion resistance. Knurled grip gives positive purchase when in use and limits risk of slip if hands are oily.
Limits potential damage to the forks caused by using other installation methods.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . MS052.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . . . . 33mm
Model No: . . . . . . . . . . . . . . . . . MS055.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . . . . 41mm
Model No: . . . . . . . . . . . . . . . . . MS058.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . .46-47mm
4. OPERATION
Remove the front wheel and fork assembly as required, following the motorcycle manufacturer's service
4.1.
instructions, or a proprietary manual for the correct procedure .
4.2.
Secure the fork assembly in a suitable holding device.
4.3. Remove the old fork seal.
4.4. Carefully slide a new fork seal onto the fork tube.
4.5. Split the seal driver and assemble it around the fork tube and push fit it together, with the driving face
pointing downwards towards the fork seal.
4.6. Using a smooth action, repeatedly slide the driver down onto the seal, tapping it slowly into place.
4.7. Ensure that the seal is fully driven home, allowing the seal retainer to be fitted.
DO NOT use excessive force as this will damage the new seal.
4.8. Reassemble the fork assembly, wheel etc. as per the motorcycle manufacturer's service instructions.
4.9. After use, clean with a lightly oiled cloth and store inside the workshop.
© Jack Sealey Limited
INSTRUCTIONS FOR:
MOTORCYCLE FORK SEAL DRIVERS
33
MODEL NOS:
Wear eye Wear protective
protection gloves
Model No: . . . . . . . . . . . . . . . . . MS053.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . .35-36mm
Model No: . . . . . . . . . . . . . . . . . MS056.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . . . . 43mm
Model No: . . . . . . . . . . . . . . . . . MS059.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . . . . 48mm
54
MM- MM
MS052.V2 to MS061.V2
Original Language Version
Model No: . . . . . . . . . . . . . . . . . MS054.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . . . . 39mm
Model No: . . . . . . . . . . . . . . . . . MS057.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . . . . 45mm
Model No: . . . . . . . . . . . . . . . . . MS060.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . .49-50mm
Model No: . . . . . . . . . . . . . . . . . MS061.V2
Size:.. . . . . . . . . . . . . . . . . . . . . . . . . 54mm
MS052.V2_MS061.V2 Issue:2(L)- 28/09/17
