A.u.S. Spielgeräte GmbH

A-1210 Wien Scheydgasse 48

Tel. +43-1-271 66 00

Fax. +43-1-271 66 00 75

e-mail: verkauf@aus.at

www.aus.at

MINI PROGRAMMER

Programmer for RM4-RM5 Electronic Coin Mechanism

G:/Formulare/Münzprüfer/Secci/RM5 Programmergb.doc

Table of Contents

Need help?

Do you have a question about the MINI PROGRAMMER and is the answer not in the manual?

Questions and answers

Summary of Contents for A.u.S MINI PROGRAMMER

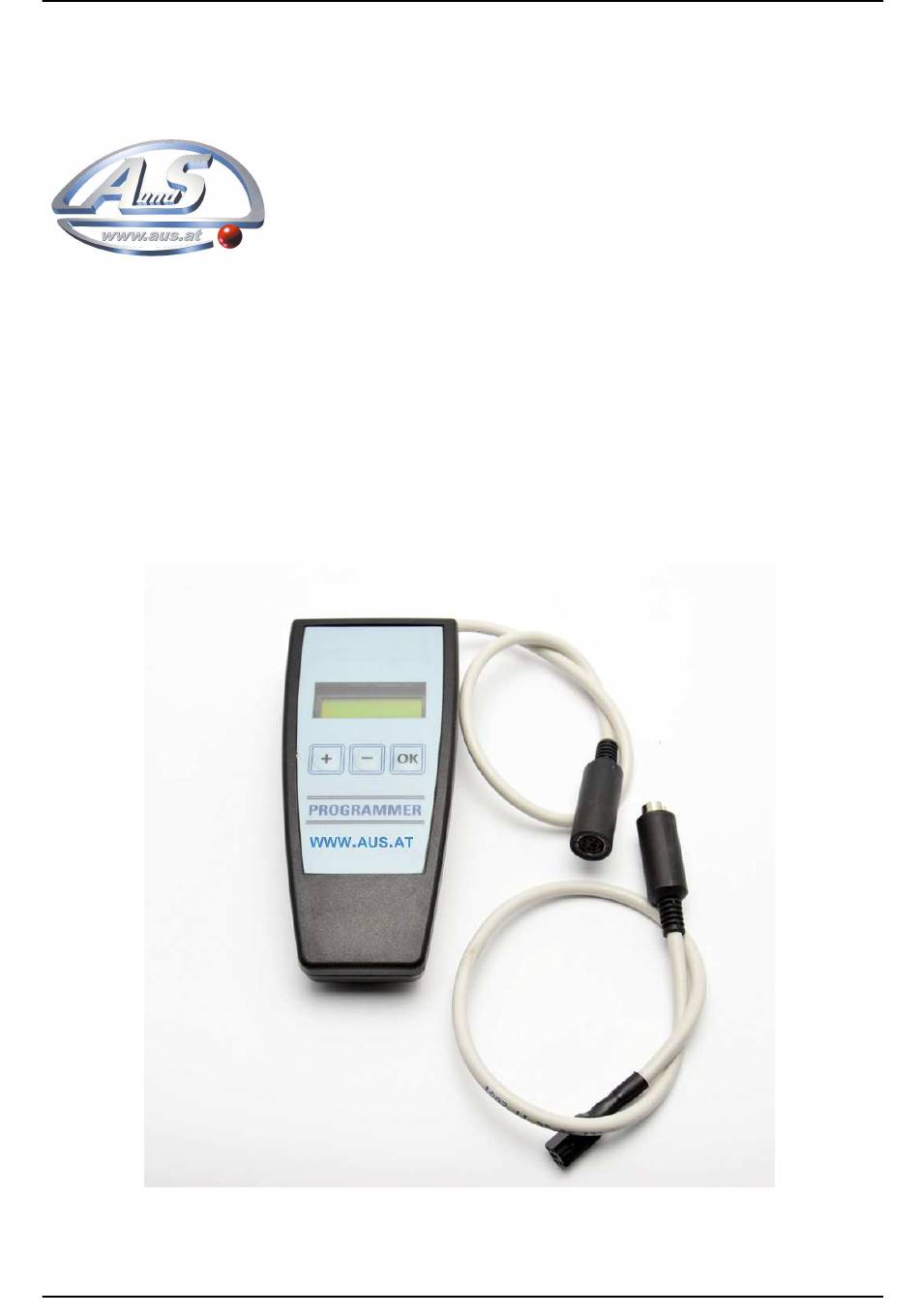

Page 1 A.u.S. Spielgeräte GmbH A-1210 Wien Scheydgasse 48 Tel. +43-1-271 66 00 Fax. +43-1-271 66 00 75 e-mail: verkauf@aus.at www.aus.at MINI PROGRAMMER Programmer for RM4-RM5 Electronic Coin Mechanism G:/Formulare/Münzprüfer/Secci/RM5 Programmergb.doc...
Page 2: Manual Structure
MANUAL STRUCTURE The manual is divided in four parts: A general description containing connection Contains function, descriptions of all versions of the PART 1 PART 3 details and warning signals which are valid for all coin mechanism. coin mechanism versions. PART 2 Contains the “MENU TABLES”.
Page 3: Part 1 General Characteristics
PART 1 GENERAL CHARACTERISTICS: The RM4-PROGRAMMER device is required to read and change data contained in the coin mechanism i.e.: • prices • bonus • times • counters • various options • adjustment parameters • duplication It has 3 keys to select the different functions •...
Page 4 “COMESTERO GROUP” (reference “MENU TABLE” – 2 part of manual). “MINI PROGRAMMER” NOTE: inside the programmer there is a battery type 6LR61- “ V.1.3 dated 05/12/01 “ 9V.When switching on the unit, if the battery is low, will be displayed the message “Battery Low”.
Page 5: Warning Signals
WARNING SIGNALS The warning signals during the process of different functions are: Connection to RM3 coin mechanism “SERIAL ERROR” – “CLONING ERROR” The PROGRAMMER can not be connected to RM3 coin The first refers to a wrong writing in the coinmech, the second to mechanism an error during cloning process.
Page 6 PART 2 MENU FUNCTIONS FOR RMX00: Validator RED COUNTER (Sec. 1.a) SALE PRICE CHANGE (Sec. 2.a) CREDIT PULSE LENGHT (Sec. 3.a) DUCT OPTION (Sec. 5) COUNTER RESET (Sec. 6.a) COUNTER ENABLING (Sec. 7.a) OUTPUT TYPE (Sec. 11 ) CHANNEL ENABLE (Sec.
Page 7 MENU FUNCTIONS FOR RMX10: 2 Prices totalizer for vending machines READ COUNTER (Sec. 1.b) SALE PRICE CHANGE (Sec. 2.b) DUCT OPTIONS (Sec. 5 ) COUNTER RESET (Sec. 6.b) COUNTER ENABLING (Sec. 7.b) CREDIT COLLECTION (Sec. 8.a) RESET TIME CHANGE (Sec. 9) DISPLAY OPTION (Sec.
Page 8 MENU FUNCTIONS FOR RMX20: Impulsive totalizer READ COUNTER (Sec. 1.a) SALE PRICE CHANGE (Sec. 2.c) CREDIT PULSE LENGHT (Sec. 3.a) DUCT OPTION (Sec. 5) COUNTER RESET (Sec. 6.a) COUNTER ENABLING (Sec. 7.a) CHANNEL ENABLE (Sec. 18 ) LIMIT CORRECTION (Sec. 19 ) VALUES TABLES (Sec.
Page 9 MENU FUNCTIONS FOR RMX40: Credit release totalizer upon request READ COUNTER (Sec. 1.a) SALE PRICE CHANGE (Sec. 2.c) CREDIT PULSE LENGHT (Sec. 3.a) DUCT OPTION (Sec. 5) COUNTER RESET (Sec. 6.a) COUNTER ENABLING (Sec. 7.a) CREDIT COLLECTION (Sec. 8.b) CHANNEL ENABLE (Sec.
Page 10 MENU FUNCTIONS FOR RMX60: Timed credit release totalizer upon request READ COUNTER (Sec. 1.a) SALE PRICE CHANGE (Sec. 2.c) CREDIT PULSE LENGHT (Sec. 3.b) DUCT OPTION (Sec. 5) COUNTER RESET (Sec. 6.a) COUNTER ENABLING (Sec. 7.a) CREDIT COLLECTION (Sec. 8.b) TIME DISPLAY OPTION (Sec.
Page 11 MENU FUNCTIONS RMX70: Totalizer for photocoping machines READ COUNTER (Sec. 1.a) SALE PRICE CHANGE (Sec. 2.e) DUCT OPTION (Sec. 5) COUNTER RESET (Sec. 6.a) COUNTER ENABLING (Sec. 7.a) CREDIT COLLECTION (Sec. 8.b) DELAY SETTING (Sec. 10) CHANNEL ENABLE (Sec. 18 ) LIMIT CORRECTION (Sec.
Page 12 PART 3 SEC. 1.b SEC. 1. a READ COUNTER READ COUNTER Sale counter visual display (for 10 version) Coin counter visual display (for 00-20-30-40-60-70 versions). This function allows the reading of counters connected to the 2 sale This function allows to gather collection of machine. lines.
Page 13 SEC. 2.a. SEC. 2.b. SALE PRICE CHANGE SALE PRICE CHANGE Sale price change (for 10 version) Limit price change and P2 (for 00 version) This function allows the setting or changing of the sale price. This function is on just in case a validator with a collection limit is Entering the function through key “OK”, the 1 sale price is used.
Page 14 SEC. 2c SALE PRICE CHANGE Entering the function through key “OK”, it is visualized on display Game price setting (for 20-40-60 versions) the basic cost (P1) which can be changed through keys “+” and/or “- “, and confirmed through key “OK”.Then the time (T) appears, Entering the function through key “OK”, the single game cost is which can be modified (from 1 to 255) by means of key +/- and then displayed.
Page 15 SEC. 2.e SEC. 3.a. SALE PRICE CHANGE CREDIT PULSE LENGHT Sale price setting (for 70 version) Programming of credit pulse lenght (for 00-20-40 versions) By means of this function it is possible to set the single sale cost Enter the function as previously mentioned and push key “OK” to and 2 bonus levels.
Page 16: Warning Time
SEC. 4. SEC. 5. WARNING TIME DUCT OPTION Warning time (for 30 version) Vending duct: antijam option (multiple activation of the coil). The progressive timer can give a warning signal before the availability time expires. Entering the function with key OK it is shown the state of the By means of this function, the warning signal can be set.
Page 17: Counter Reset
SEC. 6.a. SEC. 7.a COUNTER RESET COUNTER ENABLING Coin counter reset (for 00-20-30-40-60-70) Coin counter enabling /disenabling (for 00-20-30-40-60-70 versions) This function allows a reset of the coin counter.Entering the This function enables or inhibits the collected coin counting. function through key “OK”, the counter’s content is displayed. Entering it through key “OK”...
Page 18: Display Option
SEC. 8.a. SEC. 9 CREDIT COLLECTION DISPLAY OPTION Change collection enabling (for 10 version) Forward/reverse display (for 10 version) This function allows alteration of the minimum lenght of the This function enables or inhibits the change collection i.e. credit in external reset signal.
Page 19: Output Type
SEC. 11 SEC. 13 TIME DISPLAY OPTION OUTPUT TYPE Time display option (for 60 version) Modality of cash signal (for 00 version) When the display (RM924) is connected to the coin mechanism, the This function allows to choose the modality of cash signal through: display will show the amount inserted up to a credit being obtained.
Page 20 SEC. 15a SEC. 16 ECONOMIZER EXTERNAL COUNTER – 3C Economizer (for version 30) Ripetition of the collection for external counter (for 30 version) This function enables the use of the economizer provided that it is With this function can be ENABLE or DISENABLE the collection installed in the device.
Page 21: Channel Enable
SEC. 18 SEC. 19 CHANNEL ENABLE Channel enabling/disenabling CHANNEL FINE TUNNING Limit coin channel editing This function enables the single acceptance of the different This function widens the accepting “windows” dedicated to a coin. For each set channels. Through DIP-SWITCH on coin mechanism the first 6 channel, the coinmech has stored several accepting field, one for each sensor ddicated to channels can be enabled or inhibited (DIP in ON –...
Page 22: Very Important
PARTS 4 SEC. 22 PROCEEDING TO ADJUST COIN MECHANISM SUBSTITUTIVE CHANNEL GENERAL CHARACTERISTICS Programming of substitutive channel The programmer gives the opportunity, through proceedings, to This function allows to give to a coin an output channel different adjust new coins. from the one in which has been adjusted.
Page 23: Change Configuration
SEC. 23 SEC. 24 CHANGE CONFIGURATION DUPLICATION Coinmech duplication (only for RM5) This function allows to change the coin mech configuration according to the following data sheet. It allows to get either from a sample coinmech or from a PC, all the parameters indentifying a given coinmech inlcuded the coin setting VALIDATOR “00”...
