Disk Drive Assembly Replacement Instructions
This document helps you to complete the following tasks:
v Remove a failed disk drive and replace it with a new disk drive
v Verify that the new disk drive is working correctly
Important: Before you proceed with these instructions, review the IBM Systems Safety Notices provided in
the IBM Media Terms and Conditions CD that is included with your appliance model.
Note: The illustrations in this document might differ slightly from your appliance model.
Supported appliances
The following table lists the appliance models that are supported by the instructions in this document:
Product
IBM Security SiteProtector
IBM Security Network Protection
Replacing a disk drive assembly
Before you begin
You must have the applicable replacement disk drive assembly before you can remove and replace the
failed disk drive assembly.
Identifying the disk drive assembly
The front panel of the appliance contains the disk drive assembly, as highlighted in yellow in Figure 1.

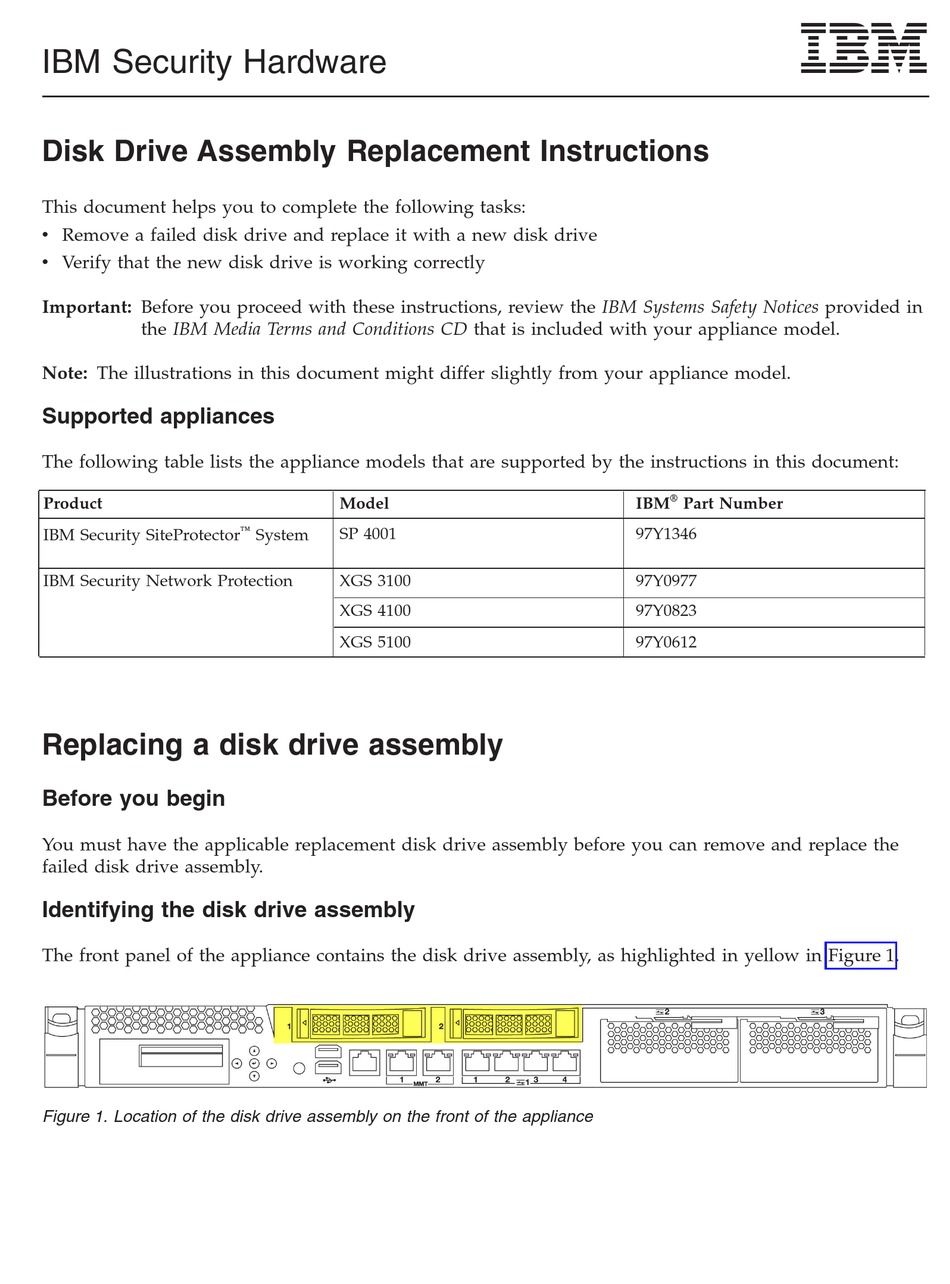

Figure 1. Location of the disk drive assembly on the front of the appliance
Model
™
SP 4001
System
XGS 3100
XGS 4100
XGS 5100
®
IBM
Part Number
97Y1346
97Y0977
97Y0823
97Y0612
