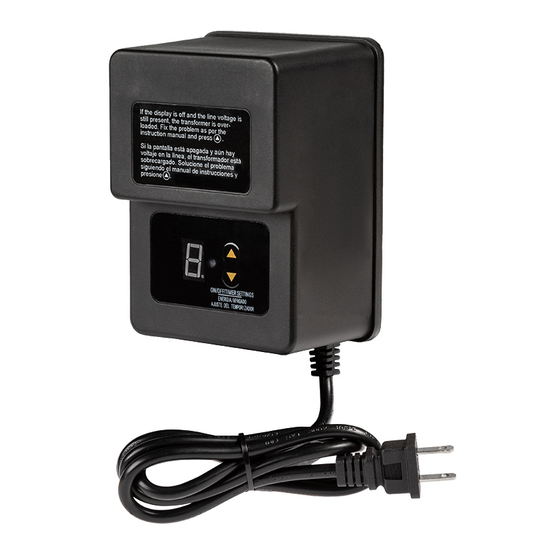

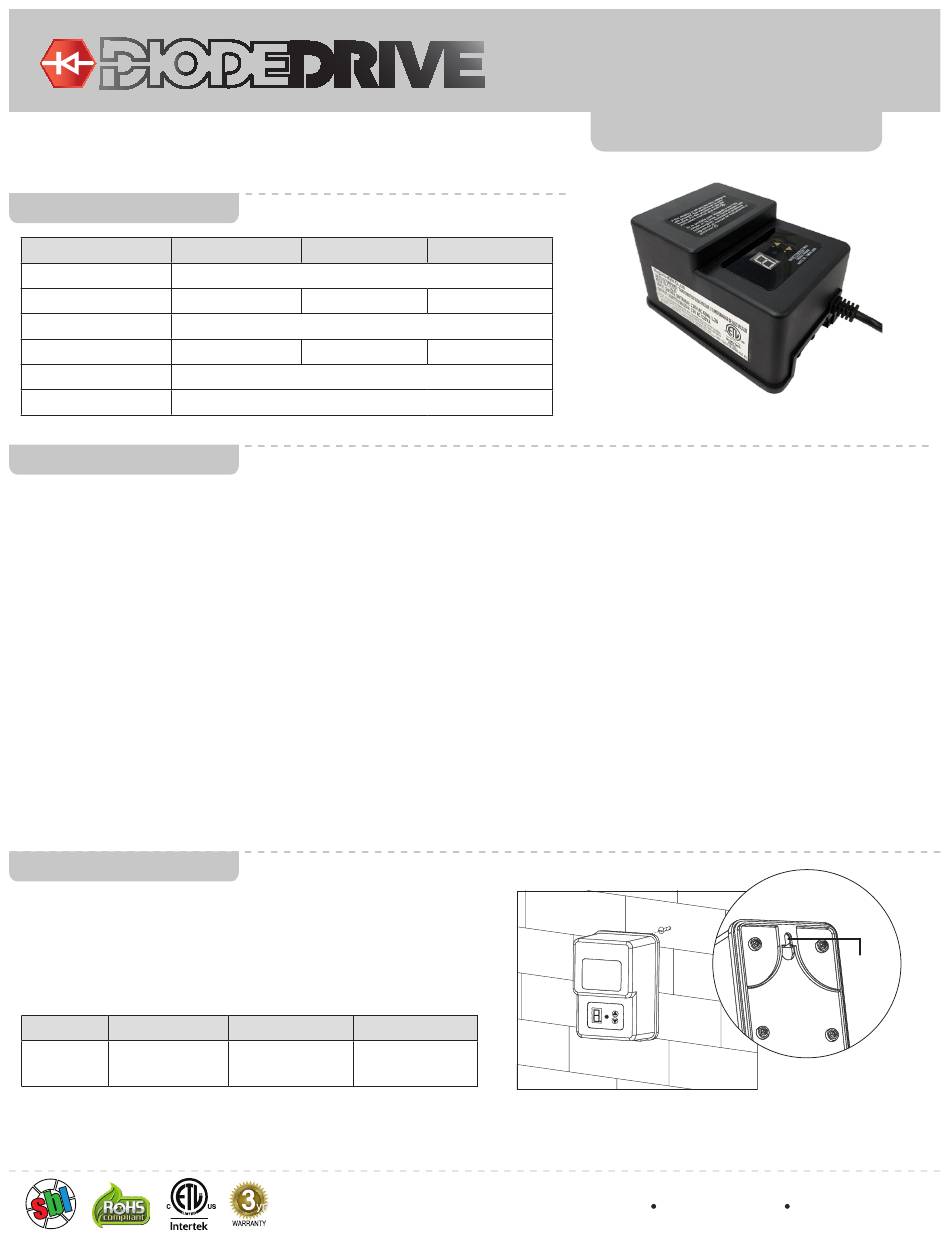

DiodeDrive LVT-W-12VAC Series User Manual

Important: Read all instructions prior to installation.
Low Voltage Landscape Transformers

Specifications

Model LVT-60W-12VAC
Input Voltage
Input Current 600 mA (0.6 A)
Output Voltage
Output Current
IP Rating
Warranty

Safety and Notes

• Product should be installed and serviced in accordance with applicable national, state, and local building
and electrical codes.
• Risk of fire or electrical shock. Install transformer at least 10 ft (3.05 m) from pools, spas, or fountains.
• Outdoor, above ground installation only. For use with low voltage landscape lighting only.
• This transformer must be connected to GFCI-protected receptacle marked suitable for wet locations.
Receptacle must be protected by a weatherproof cover.
• Do not submerge the transformer or use it to power submersible lights or lights mounted in or near pools,
spas, or fountains.
• If cleaning is necessary, use a damp cloth to wipe down case. Do not spray transformer with pressurized
water or steam.
• Do not use with a dimmer or extension cord or attempt to wire in parallel with other transformers.
• Do not exceed 70% of the maximum wattage of the transformer when connecting lights.
• Transformer must be mounted in a vertical orientation with the bottom at least 1 ft from the ground.
• Ensure all mounts are securely attached and will support the transformer's weight. Failure to properly
support transformer may result in damage or injury, for which the manufacturer does not assume responsibility.
• Do not attempt to disassemble or modify transformer.
• Ensure wire to lights is correct gauge for the run and total power of the intended circuit and is intended for use
with outdoor landscape applications.

Mounting Transformer

To function properly, transformer should be installed in a location
where photocell is not blocked or too near nighttime light sources.
Securely mount transformer 1–4 ft from ground level using a
weather resistant screw that is an appropriate size to support
transformer's weight.
Model LVT-60W-12VAC
Max. Screw
3/16" (5 mm)
Diameter
LVT-120W-12VAC
120 VAC
1,200 mA (1.2 A)
12 VAC
5 A 10 A
IP54
3 years
LVT-120W-12VAC LVT-200W-12VAC
1/4" (6 mm) 9/32" (7 mm)
LVT-200W-12VAC
2,000 mA (2 A)
16.7 A
Rev Date: V1 07/22/2019
4400 Earth City Expy, St. Louis, MO 63045
User Manual
LVT-xW-12VAC
LVT-120W-12VAC
Rear View
866-590-3533 superbrightleds.com
Mount
