Summary of Contents for XVision XANB35

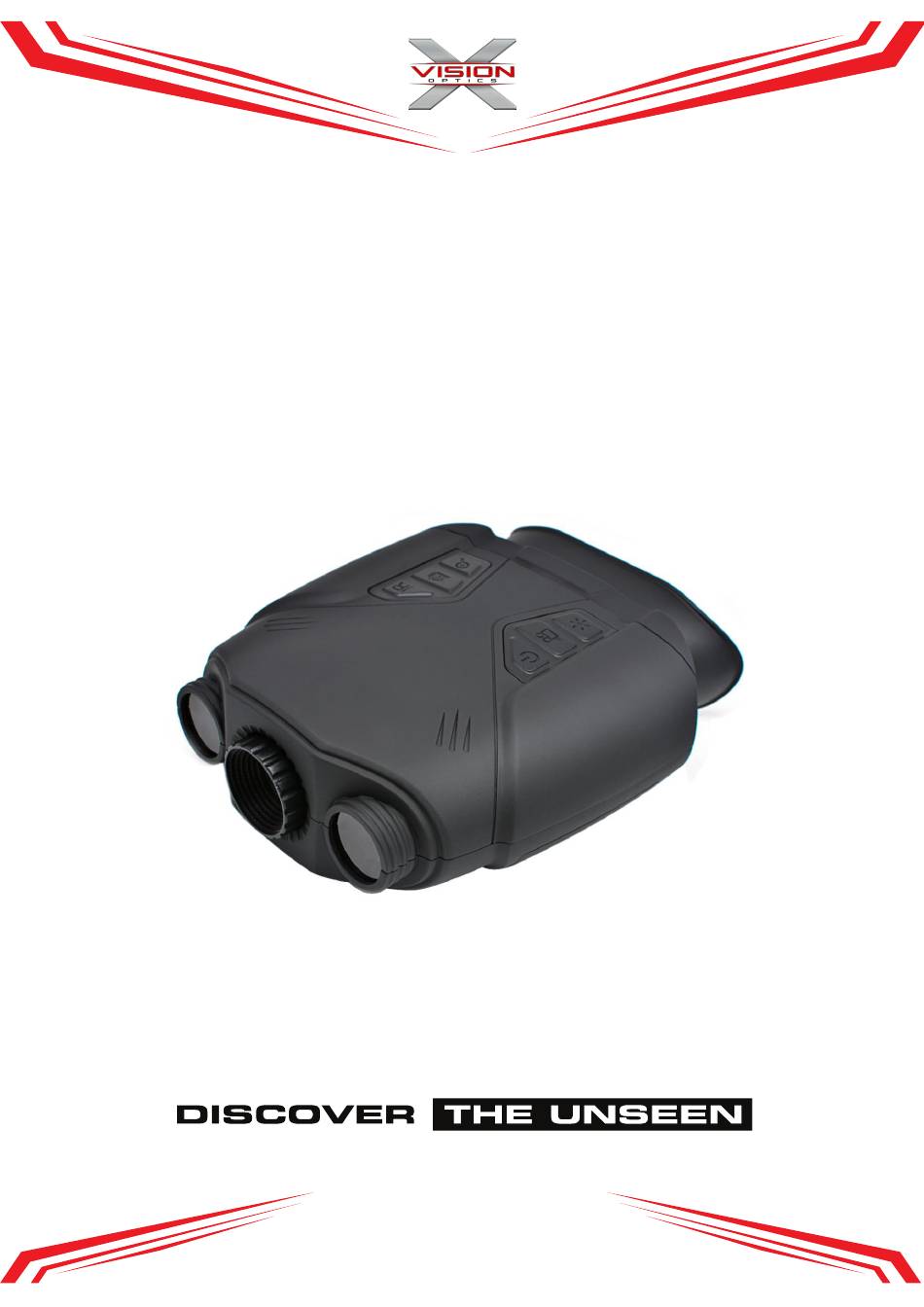

- Page 1 XTREME NIGHT VISION BINOCULAR XANB35 USER MANUAL X- X-Vision Optics 5140 Moundview Dr. Red Wing, MN 55066...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents 2. About the Binocular 3. Quick Start ⚫ Install Batteries ⚫ Insert a Micro SD Card (for photo and video taking) ⚫ Turn on the Binocular ⚫ Adjust Screen Brightness ⚫ Use Digital Zoom ⚫... -
Page 3: Package Contents
1. Package Contents Binocular Neck Strap Protection Case 2020-8-24 Version... -
Page 4: About The Binocular

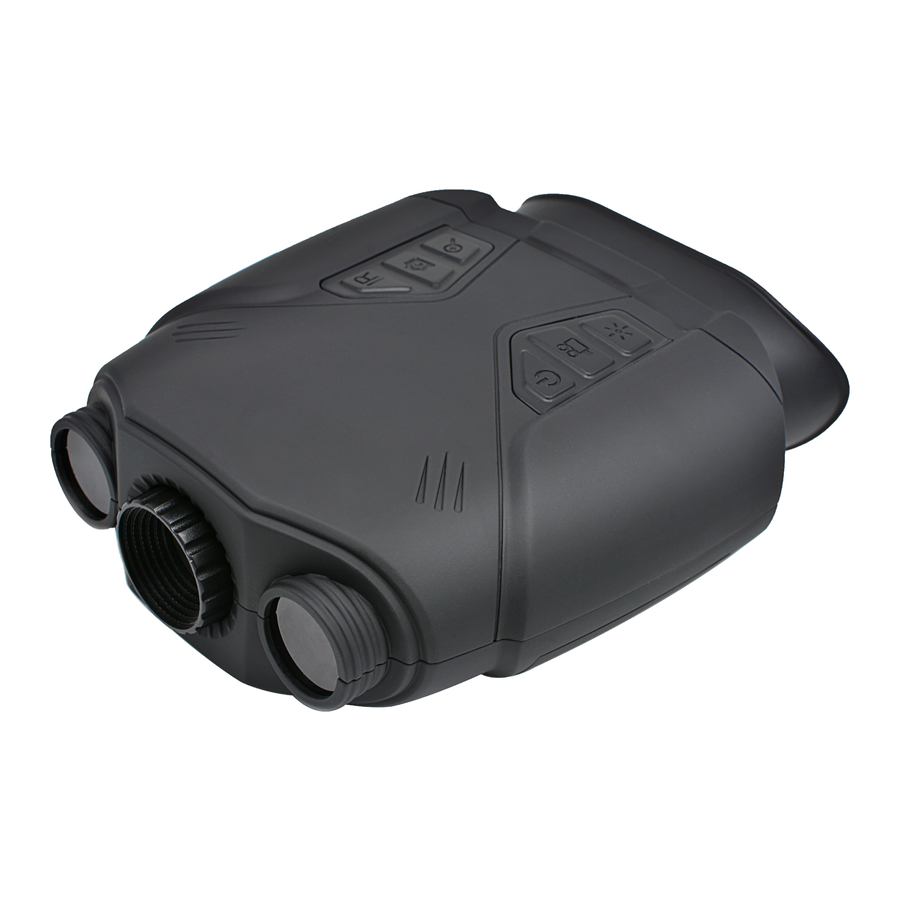

2. About the Binocular ④ ① ⑤ ② ③ ⑥ Long press for power on and off. ① Power Press to take video. ② Press for 3 levels of screen brightness (1->2->3>1...) ③ First time power on, brightness is set as 1. Press IR for 4 levels of brightness. - Page 5 ⑦ Micro For Micro SD card insert (when the power is off) SD Card ⑦ Slot ⑧View Area ⑨ ⑨Strap ⑧ Hook ⑩Focus HOW TO FOCUS Wheel Turn Focus Wheel ⑩ ⑪Battery Compartment ⑫ Tripod Holder ⑩ ○ ○ ○ ⑫...
-
Page 6: Quick Start
3. Quick Start Install Batteries: ⚫ (1) Open the covers. (2) A total of 8pcs batteries are needed. Put in 4 AA Alkaline batteries in each compartment in the directions of + and –. (3) Close the battery compartments. Insert a Micro SD Card (for photo and video taking): ⚫... -
Page 7: Turn On The Binocular
⚫ Turning on the Binoculars: (1) Long press the power button to turn on the binocular. Once the power is on, look into the LCD screen inside for preview. (2) Adjust the focus by turning the focus wheel at the front bottom. -
Page 8: Display Information
Taking a Video: ⚫ (1) Turn on the Binocular. (2) Adjust the focus by turning the Focus Wheel. (see “Turn on the Binocular” section for details) (3) If at night, adjust the brightness by pressing IR. (see “Turn on the Binocular” section for details) (4) Press to start video recording and press it again to stop recording. - Page 9 ⚫ Photo Mode: Photo Mode: Ready to Number of files take picture. Press (including photos to take pictures. and videos) taken. SD Card installed and ready for photos. 00038 is showing, power off and then insert the SD card. LCD Screen Battery Status ⚫...
-
Page 10: Trouble Shooting
5. Trouble Shooting ⚫ Binocular Power Off: If the binocular fails to activate, check for defective, missing or improperly-installed batteries. Replace or install batteries correctly. Please make sure to use Alkaline batteries. ⚫ Poor Image: ✓ If you wear glasses, please keep them on while using the binocular. ✓... -
Page 11: Appendix: Specifications
6. Appendix: Specifications EVF mode Viewfinder Aspect ratio F1.4 with adjustable aperture Day and Night dual Aperture mode 300 yards at night, 500 yards at day Visual distance Object lens Focus Manually adjust 6.8° degrees Visual angle IR LED Luminance External Memory 4GB to 32GB micro SD card Alkaline AA battery x 8...
Need help?
Do you have a question about the XANB35 and is the answer not in the manual?
Questions and answers
I push power button and screen lights up for a second then off. I check new batteries and repot them back in. I have XANB35
If the XVision XANB35 screen lights up for a second and then turns off after replacing the batteries, the issue could be due to defective, missing, or improperly installed batteries. Ensure that the batteries are correctly installed and that only Alkaline batteries are used.
This answer is automatically generated
