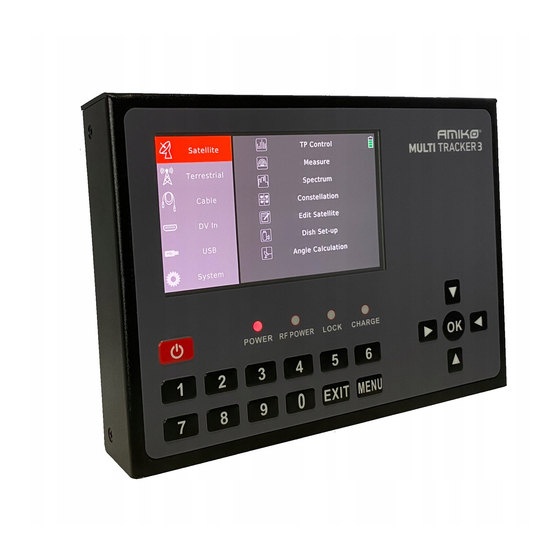

AMIKO MultiTracker 3
1. INTERFACE, BUTTONS AND INDICATORS ................................................................................. 2
1.1 INTERFACE:.................................................................................................................. 2
1.2 BUTTONS AND INDICATORS .......................................................................................... 2
2. BASIC FUNCTIONS ................................................................................................................. 3
2.1 Satellite ....................................................................................................................... 4
2.1.1 Satellite > TP Control ......................................................................................... 4
2.1.3 Spectrum Analyzer............................................................................................. 6
2.1.4 Satellite > Constellation ..................................................................................... 7
2.1.6 Satellite > Dish Set-up ........................................................................................ 9
2.1.7 Satellite > Angle Calculation ............................................................................. 12
2.2Terrestrial ................................................................................................................... 14
2.2.1Terrestrial > Scope ............................................................................................ 15
2.2.3Terrestrial > Spectrum ...................................................................................... 16
2.2.5 Terrestrial>Channel Edit ................................................................................... 18
2.2.6Terrestrial > Edit Emetteur ................................................................................ 18
2.3 Cable......................................................................................................................... 19
2.3.1Cable > TILT ...................................................................................................... 20
2.3.5 Cable>Channel Edit.......................................................................................... 21
2.4 DV IN ........................................................................................................................ 21
2.5 USB ........................................................................................................................... 22
2.6 System ...................................................................................................................... 22
2.7. Play Program Menu .................................................................................................. 23
2.8 Screenshot ................................................................................................................ 24
2.9 Debug information..................................................................................................... 25
User's Manual
www.amikostb.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Amiko MultiTracker 3
-
Page 1: Table Of Contents
AMIKO MultiTracker 3 User's Manual www.amikostb.com 1. INTERFACE, BUTTONS AND INDICATORS ................. 2 1.1 INTERFACE:........................2 1.2 BUTTONS AND INDICATORS ..................2 2. BASIC FUNCTIONS ......................... 3 2.1 Satellite ........................4 2.1.1 Satellite > TP Control ..................4 2.1.2 Satellite >Measure ..................... 5 2.1.3 Spectrum Analyzer..................... -
Page 2: Interface, Buttons And Indicators
1. INTERFACE, BUTTONS AND INDICATORS 1.1 INTERFACE: DC 12V IN: The DC power supply in jack of meter. Please check the output voltage of adapter carefully before plug-in. The meter would be damaged if the input voltage is higher than 12V. USB: The USB port for USB device to plug-in. -
Page 3: Basic Functions
MENU: Enter or exit menu EXIT: Exit current menu or current operation 0~9 NUMBER KEYS: Input numeric values. Please refer to help bar of each menu for other functions ▲/▼: Zapping channels or navigation in the menu ◄/►: Decrease or increase the volume or navigation in the menu OK: Enter channel list menu in video playing screen;... -
Page 4: Satellite
2.1 Satellite The functions for satellite digital signal. Press [ ] to navigation. Press [OK] to enter sub-menu. / Items Instructions TP Control Show 4 transponders signal status on one screen. Measure Show many testing results of input signal. Such as strength, quality, CNR, BER... Spectrum Show the spectrum chart of input satellite signal Constellati... -
Page 5: Satellite >Measure
2.1.2 Satellite >Measure The menu shows many testing results of input signal. Press [ ] to switch items and press [ ] to change / / curser focus between satellite and transponder. Items Instructions The LNB power supply status of LNB. The values are 13V, 18V and off The 22K status of LNB. -
Page 6: Spectrum Analyzer
The feed current of LNB Feed Current The original network identification from transponder stream ONID The transponder stream identification from transponder stream TSID The power level of input signal of current transponder 60 dBμV It sets to green smile one if the signal is locked, or set to red sad one Face Icon The satellite system of input signal DVB-S2... -
Page 7: Satellite > Constellation
2.1.4 Satellite > Constellation The menu shows the constellation chart of input signal if the current transponder is locked. And also the C/N ratio, power level, CBER, DVB system and demodulation mode. Press [ / ] to change current transponder. Press [OK] to pop-up transponders list to help to select /... - Page 8 can confirm or cancel the delete operation Press this button to save all the modifications Edit Satellite Delete satellite confirm dialog...
-
Page 9: Satellite > Dish Set-Up
Edit satellite name dialog Edit transponder (when transponder list is selected) User can edit, add and delete transponder in this menu. 2.1.6 Satellite > Dish Set-up All the parameters of dish will be set on this menu. Such as LNB type, LNB power, motor type... - Page 10 Press [ / ] to navigation. / / Instructions Satellite Show and choose satellites. Press [ ] to select satellite, or press [OK] to enter Satellite / list. LNB Type Set LNB Type, press [ ] button to switch between values. Default set to UNIVERSAL /...
- Page 11 DiSEqC 1.2: On this menu, user can set the antenna to right position by DiSEqC 1.2 command if the antenna supported DiSEqC 1.2 function. According to the signal strength and quality in percent, the meter can get the best signal by sending command to adjust antenna to right position.
-
Page 12: Satellite > Angle Calculation
Instructions HOTBIRD,13 Show the current selected satellite. Ankara The default cities list. The local longitude and latitude will be set once the city is selected. Move Press [ ] to send command to move antenna to East or West by step mode. Press [ /... - Page 13 Instructions HOTBIRD,13 The current selected satellite. Press [ ] to switch satellites. Press [OK] to enter the / satellite list to select Ankara The default cities list. The local longitude and latitude will be set once the city is selected. Or user can press [OK] to edit the local longitude and latitude manually if the city sets to customized.
-
Page 14: Terrestrial
2.2Terrestrial This menu for DVB-T/T2 functions. Please see below screenshot Press [ ] to navigation and press [OK] to enter into sub-menus. / Instructions Scope The menu shows four channels` signal testing results on one screen Measure The menu shows many testing results for selected channel Spectrum The menu shows spectrum chart of input signal Constellation... -
Page 15: 1Terrestrial > Scope
2.2.1Terrestrial > Scope The menu shows four channels` signal testing results on one screen. The meter will check channels one by one automatically. Press [OK] to pop-up channels list to help to select channel to replace the current focused one. Press [MENU] to pop-up emittor list to help to switch emittors easily. -
Page 16: 3Terrestrial > Spectrum
pop-up list to help to select easily. CBER The CBER value of input signal The MER value of input signal LBER/VBER The LBER/VBER value of input signal. Pilot Pattern The pilot pattern value of input signal Feed Voltage The feed voltage value of antenna Feed Current The feed current value of antenna Cell ID... - Page 17 Instructions The current frequency to show power level value Centre Freq The power level value of current frequency dBuV The name of channel which frequency is close to current frequecny. Channel Press [1] to set the frequency range to 200MHz around current set frequency Button 1 Press [2] to set the frequency range to 400MHz around current set frequency Button 2...
-
Page 18: Terrestrial>Channel Edit
2.2.4 Terrestrial > Constellation Please refer to 2.1.4. 2.2.5 Terrestrial>Channel Edit User can edit channel parameters on this menu. All the channels for terrestrial will be listed on this menu. Press ] to switch channels. / Press [OK] to enter the edit mode. And then press [ ] to switch between frequency, type and bandwidth /... -
Page 19: Cable
[OK] to add or delete from the emetteur. 2.3 Cable This menu for digital cable functions. Items Instructions TILT The menu shows four channels signal testing results on one screen Measure The menu shows many testing results of channels Spectrum The menu shows spectrum chart for cable signal The menu shows constellation chart for digital cable signal Constellation... -
Page 20: 1Cable > Tilt
2.3.1Cable > TILT The menu shows four channels` signal testing results on one screen. The meter will check channels one by one automatically. Press [OK] to pop-up channels list to help to select channel to replace the current focused one. 2.3.2 Cable>Measure The menu shows testing results for digital cable signal. -
Page 21: Cable>Spectrum
The PER value of input signal The MER value of input signal ONID The original network identification of input transport stream TSID The transport stream identification 73 dBuV The power level of input signal DVB-C The digital system of cable of input signal 64-QAM The modulation value of input signal The strength of signal in percent... -
Page 22: Usb
2.5 USB This USB sub-menu only for updating software by USB sticker. How to update software by USB sticker: 1. Copy the official release .AP file software to USB sticker 2. Plug-in USB sticker to the meter 3. Move the curse to USB item on Main Menu 4. -
Page 23: Play Program Menu
Instructions Language select Set the OSD language. Press [ ] to switch between available languages. Default set to / English Factory reset Press [OK] to pump factory reset confirm dialog. Press [OK] again to do reset or [Exit] to cancel. The meter will reset all the setting values to default if do a factory reset. Time Zone Set the local time zone. -
Page 24: Screenshot
Press [OK] to pop-up program list to show all saved programs. On program channels menu, press ] to switch programs and press [OK] to confirm to play the / selected program. Press [1] to switch between TV list and radio list. Press [MENU] to pop-up keyboard to find out channels by setting letters. -
Page 25: Debug Information
2.9 Debug information The meter support export some debug information to USB sticker. The debug information will be saved as txt file. How to get debug information 1. Plug-in USB sticker to the meter 2. Enter into Main Menu 3. Press [MENU] to pop-up a confirm dialog 4.
