WARNING: READ THE ASSEMBLY INSTRUCTIONS CAREFULY BEFORE ASSEMBLING THE DOUBLE BENCH SHELTER.
Make sure to wear protective gloves and foot protection when installing and assembling this product. Unpack the unit and make sure all the components are
included before proceeding. This activity requires two or more people as lifting is involved. Please ensure bolts are only finger tightened during the assembling
process for flexibility in lining up components. Securely tighten the bolts before anchoring the Sheltered Park Setting to the ground.
DOUBLE BENCH SHELTER
(CODE No. FELDBSH)
Thank you for purchasing our high quality products. The Double Bench Shelter has been manufactured with certified materials to achieve high reliability and minimum mainte-
nance. It is our commitment to provide cost - effective solutions for outdoor applications.
1
[PDBS4]
ITEM
PDBS1
PDBS2
PDBS3
PDBS4
PDBS5
PDBS6
PDBS7
PDBS8
PDBS9
PDBS10
PDBS11
[PDBS10x3]
[PDBS1X2]
DESCRIPTION
QTY
SIDE FRAME
2
SEAT PLANK –2040 mm.
1
ROOF ASSEMBLY
1
SEAT PLANK SUPPORTING
1
BRACE
M6 x 25mm. HEX BOLT
16
M6 LOCK NUT
16
M12 x 45 mm. HEX. BOLT
4
M12 x 80 mm. HEX.BOLT
2
M12 x 110 mm. HEX.BOLT
4
M12 LOCKNUT
10
M12 PLAIN WASHER
20
[PDBS11x3]

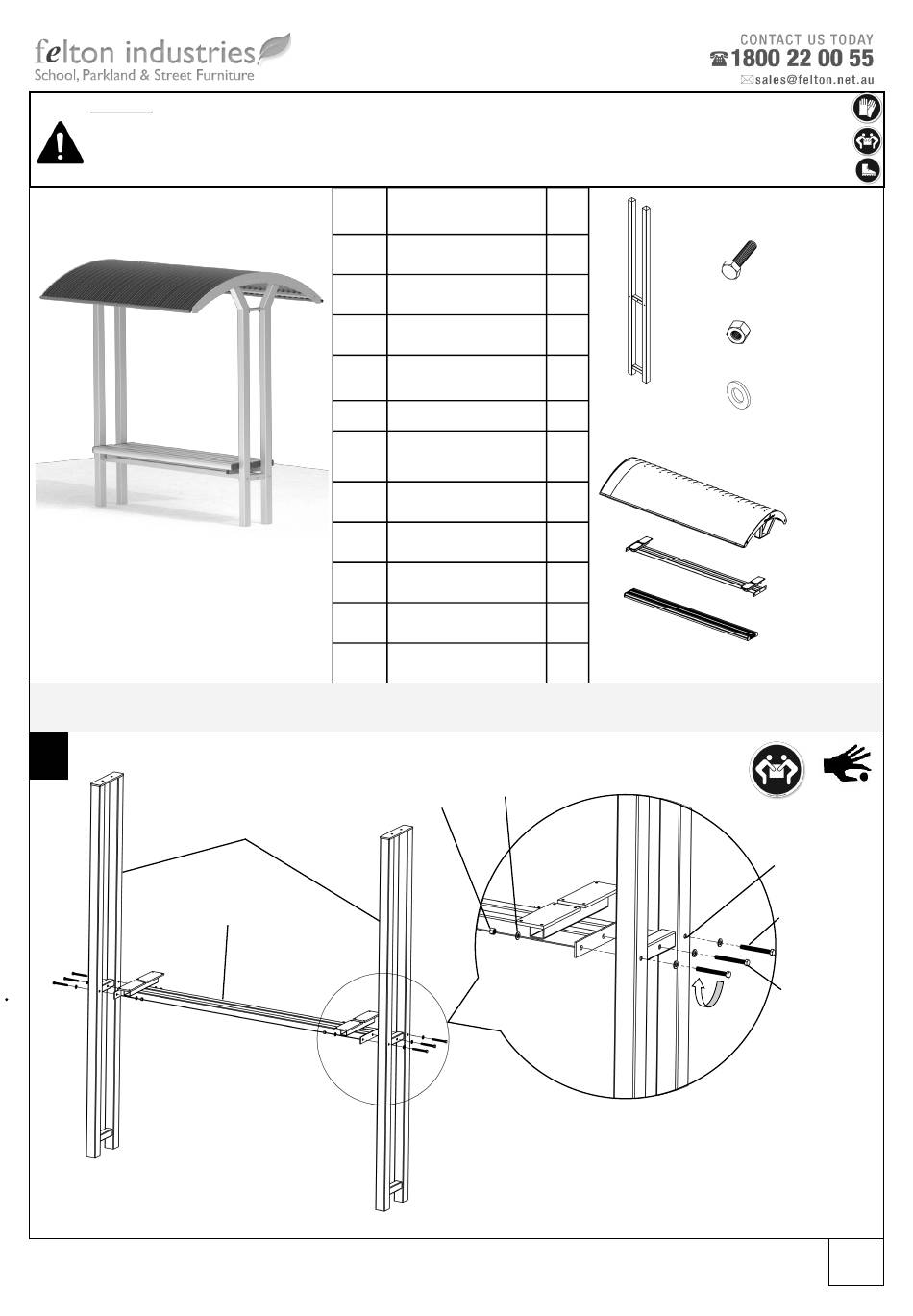

A. Locate the two frames [PDBS1] up with bolt down lugs facing
inwards.
B. Place the seat plank supporting brace [PDBS4] as shown, and
secure it to the main frames [PDBS1], by using the hex head bolts
[PDBS8/9], lock nuts [PDBS10] and plain washers [PDBS11] as
shown - finger tighten.
[PDBS 5/7/8/9]
[PDBS 7/10]
[PDBS 11]
[PDBS1]
[PDBS11x3]
(IT CONTINUES ON THE BACK OF THIS SHEET)
[PDBS3]
[PDBS4]
[PDBS2]
[PDBS10x2]
[PDBS9x1]
P1
