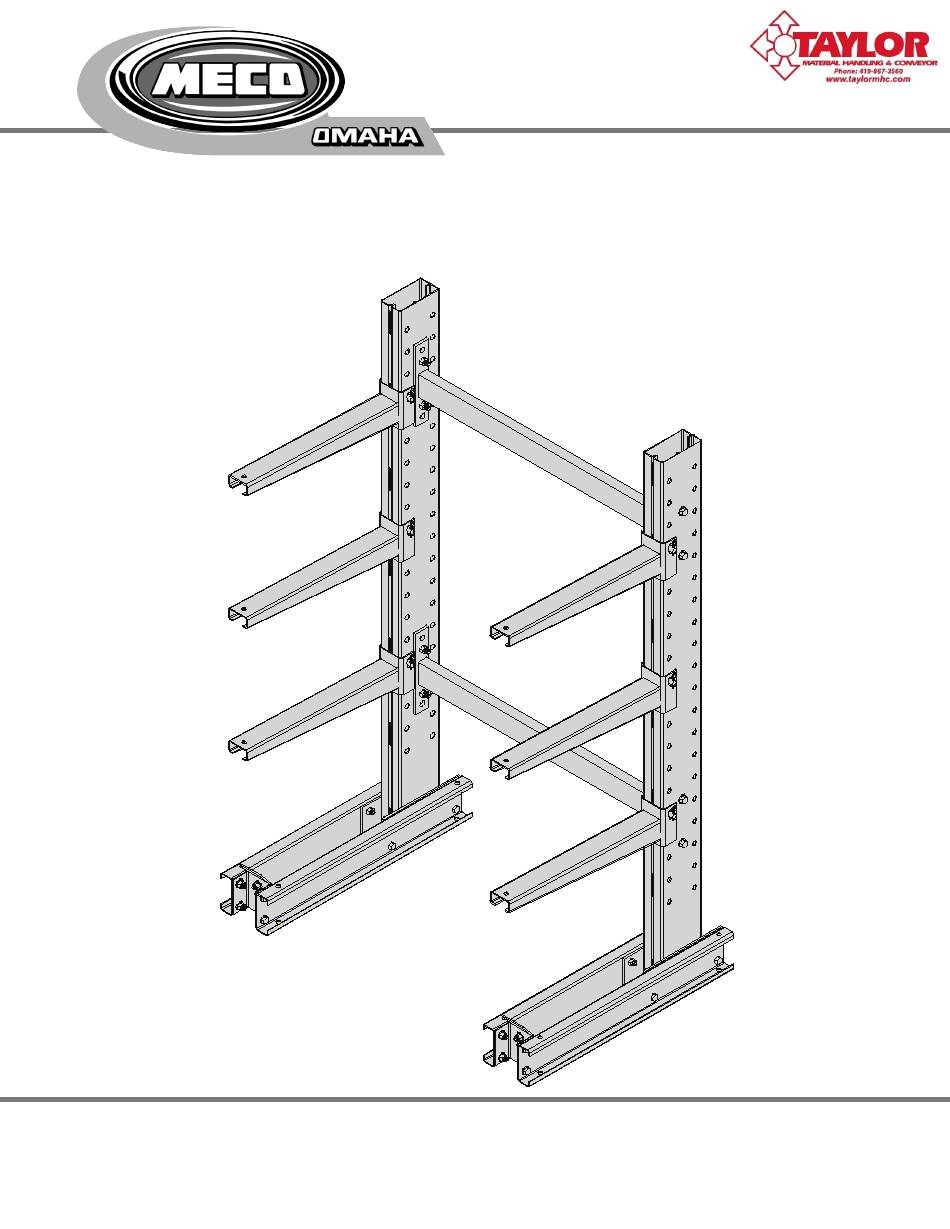

- Page 1 Instructions For Assembling MECO OMAHA SERIES 1000 MEDIUM DUTY CanTIlEvER RaCk MODERN EQUIPMENT COMPANY 6161 Abbott Drive, oMAHA, Ne 68110 www.meco-omaha.com 1-800-228-7334...
-
Page 2: Maintenance
Page 1 of 4 IMPORTanT! Review this entire booklet thoroughly before proceeding with assembly of rack This rack system should be professionally installed by individuals familiar with this type of structure. Any modification to the rack during or after its assembly may affect the rack’s structural integrity. General Assembly Procedure Snap a chalk line on the floor to show where the front of the rack will be. - Page 3 Page 2 of 4 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 1000 MEDIUM DUTY CANTILEVER RACKS DO NOT SUBSTITUTE HARDWARE TIGHTEN FINGER TIGHT ONLY AT THIS STEP Refer to DIAGRAM A for a single sided 2.) Attach the base end to the front of the base channel using bolts, hex nuts, and (4) flat washers.
- Page 4 Page 3 of 4 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 1000 MEDIUM DUTY CANTILEVER RACKS Attach horizontal braces to upright as shown in After two uprights have been assembled, begin DIAGRAM C and DIAGRAM D using tightening hardware in the manner described in "...
- Page 5 Page 4 of 4 INSTRUCTIONS FOR ASSEMBLING MECO OMAHA SERIES 1000 MEDIUM DUTY CANTILEVER RACKS Upright MD pin (HK18) After attaching the 3/8 Round arm to the upright, lift Head Bolt up on the tip of the MD keeper arm to seat the arm (HK18) bracket against the upright.
