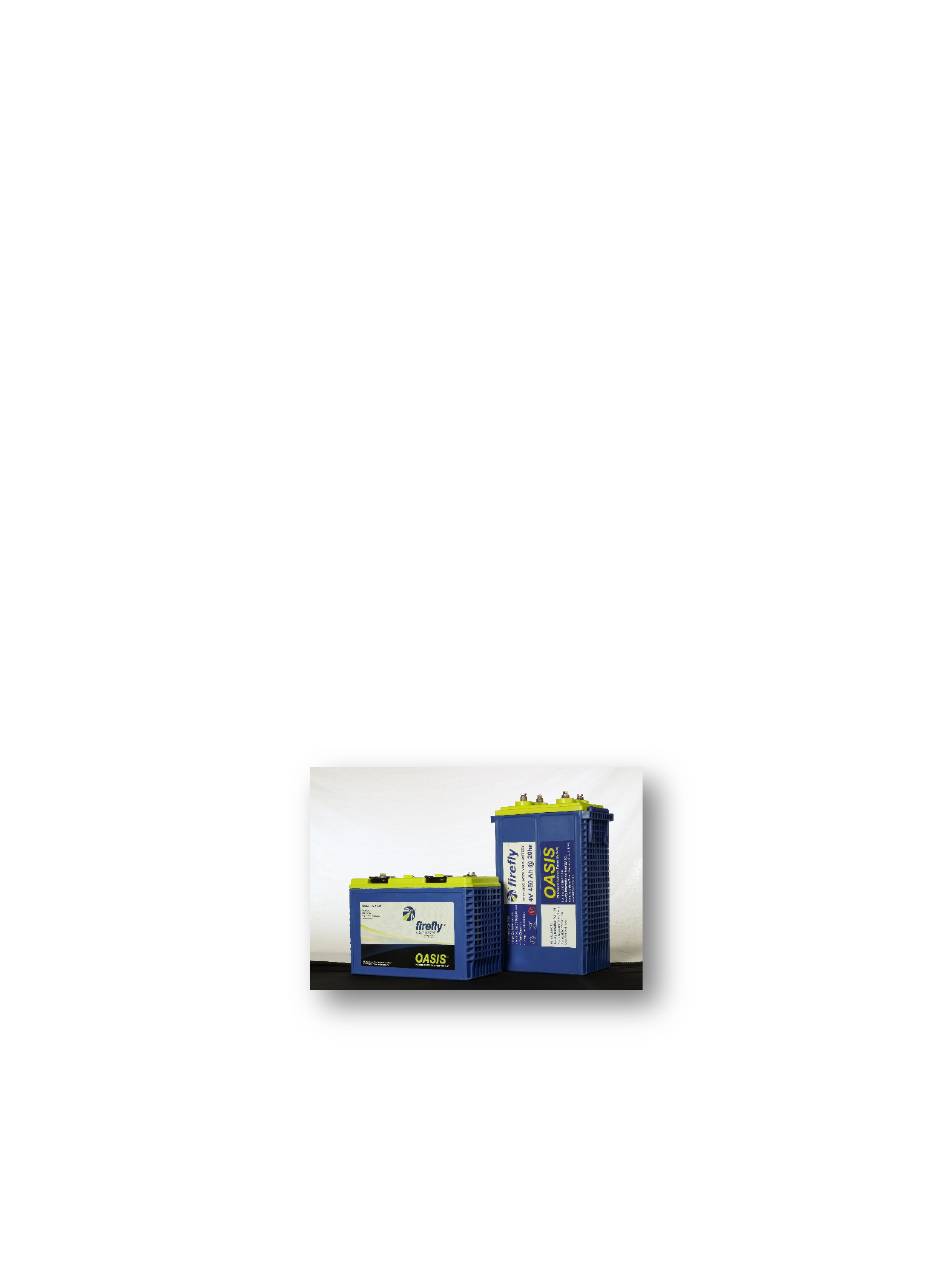

- Page 1 Firefly User’s Manual for the “OASIS” G31 & the L16 March 2020...
- Page 2 Congratulations on your purchase of a Firefly Oasis Battery! The Firefly batteries use a patented carbon Microcell Foam grid structure that is highly resistant to sulfation and grid corrosion. They have the longest life of any lead acid battery used for deep cycling, even at extreme temperatures and operation at less than full charge.
- Page 3 PARALLEL INSTALLATION • Ensure proper uniform current distribution with equal resistance cables on both sides of the Battery Terminals are connected to common load/ charger busbars. No center- tappings are allowed as it would cause differential drain on batteries in the battery bank. SERIES INSTALLATION 4V L16 CONNECTION The battery will be shipped with the connection bar shown on the left.
- Page 4 The terminals on the G31 are 3/8-16 UNC and should be torqued to 16 ft lbs. Operation & Charging • Firefly batteries can be operated in a partial state of charge for long periods of time without sustaining any permanent damage. •...
- Page 5 (solar, or an alternator if motoring for a while); set the float voltage to 13.4V or 13.5V for the G31 and 4.5V for the L15. Firefly batteries do not require a float charge. But, if you are float charging, due to their longer projected lifespan, it is important to keep the float voltage at 13.4V or 13.5V (4.5V for each L16) to ensure the...
- Page 6 D.O.T. REGULATIONS-NONSPILLABLE Firefly’s Group 31 battery meets the non-spillable criteria. It is exempted from CFR 49, Subchapter C requirements, which translates to no proper shipping name, no hazardous class, no UN number, no packaging group and no hazardous labels when transporting, provided that the following criteria are met: 1.
- Page 7 They will discharge at a rate similar to other lead batteries but the sulfation that naturally occurs when discharging will not cause permanent damage. However, for better life cycle, it is recommended to recharge the Firefly battery at least every 6 months. FULLY-CHARGED WHEN SHIPPED The Oasis will be shipped from the factory fully charged.
