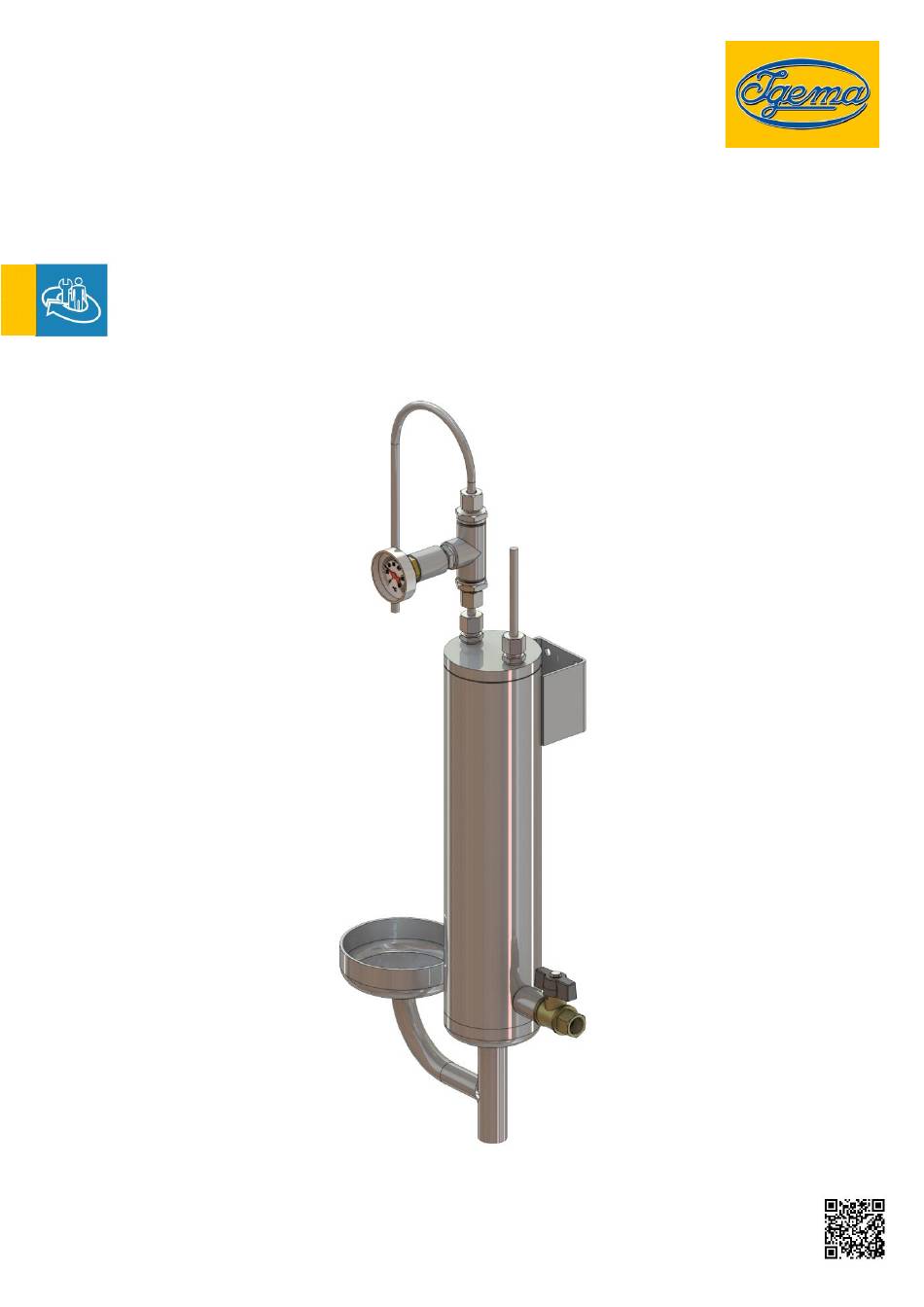

- Page 1 Sample cooler IGEMA SC32-SC132 Edition 03/2021 D-11-B-53616-EN-00 Installation and maintenance instruction...
- Page 2 Product philosophy Thank you for placing your trust in IGEMA and deciding in favour of one of our high-quality products. For more than 100 years, measuring and control systems have been developed, produced and sold worldwide under the IGEMA brand name.
-
Page 3: Table Of Contents
Table of contents 1. Important safety instructions ................5 1.1 Symbols used in these instructions ..............5 1.2 Intended use of the device ................6 1.3 Safety at work ....................7 1.4 Safety instructions for this device ..............8 1.5 Exclusion of liability ................... 8 2. - Page 4 Table of contents (cont.) 7. Maintenance ...................... 14 7.1 Limiting Conditions ..................14 8. Products-returning .................... 15 8.1 Safety Instructions ..................15 9. Loss of warranty ....................15...
-
Page 5: Important Safety Instructions
Unqualified persons must not be assigned the above tasks! IGEMA GmbH accepts no liability for damage to property or personal injury caused by unqualified persons or by failure to observe these installation and operating instructions. If no sufficiently qualified person can be found, IGEMA GmbH can be commissioned with the installation/maintenance. -
Page 6: Intended Use Of The Device
The correct installation position, alignment and flow direction of the device must be observed! Before installing the IGEMA product on boilers or containers, it is essential to remove all protective covers and, if necessary, the protective film from rating plates and sight glasses. -
Page 7: Safety At Work
1.3 Safety at work Before installation or carrying out maintenance work on the device, safe access must be ensured and a secure working area with sufficient lighting must be defined and marked out. Always use lifting equipment for heavy loads! Danger Before starting any work, carefully check which liquids or gases are or have been in the pipeline. -
Page 8: Safety Instructions For This Device
IGEMA GmbH Measuring and control technology will assume no liability if the above regulations, instructions and safety precautions are not observed and followed. If they are not expressly listed in the installation and operating instructions, changes to an IGEMA device are carried out at the risk of the user. -
Page 9: General
• IGEMA sample coolers are designed to cool samples of boiler water or steam for analysis. They prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and will result in an incorrect water sample. -
Page 10: Transport And Storage
➢ Before starting work ensure that you have suitable tools and/or consumables available. Use only genuine IGEMA replacement parts. ➢ Do not remove the nameplate attached to the equipment. Serial number and other useful information are stamped on it. -
Page 11: Installation
5. Installation 5.1 Safety Instructions Danger ➢ Account for over pressure conditions, according with the local laws or standards. ➢ For the problems that cannot be solve with the help of this instructions, please contact the supplier or the manufacturer. 5.2 Installation area requirements •... -
Page 12: Dimensions
Pos. Description Sample cooler Sample intake Cooling water intake Colling water valve Draining connection Funnel to take a measuring jug Sample outlet Thermometer unit 5.4 Dimensions... -
Page 13: Start Up
6. Start up 6.1 Safety instruction Danger Safety notice! The device may become very hot as a result of the flow of the sample medium through it and it must be regularly checked for a good seal. There is a risk of being burnt or scalded. -
Page 14: Procedure To Take Boiler Samples
When reassembling make sure that all gasket faces are clean and always use a new gasket. 7.1 Limiting Conditions LIMITING CONDITIONS BODY COIL Pressure Pressure Related Related Model Temp. °C Temp. °C SC32 - SC132 Minimum operating temperature: -10ºC Design code: Igema - Merkblatt... - Page 15 ➢ LOSS OF WARRANTY: Total or partial disregard of above instructions involves loss of any right to warranty. This high-quality IGEMA product was designed, manufactured and tested with the application of the QM System guidelines in accordance with DIN EN ISO 9001:2000.
