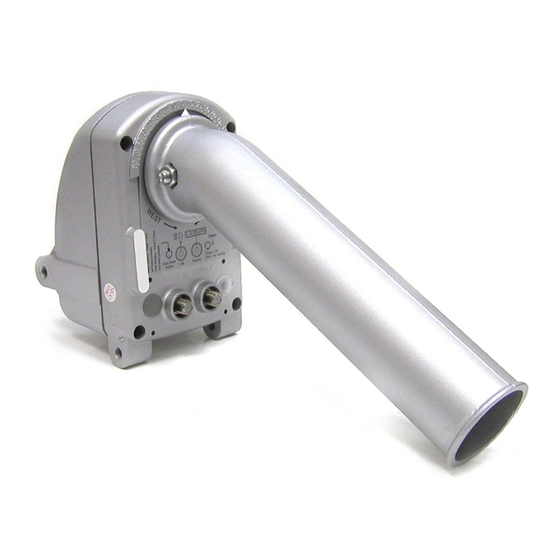

Setup and mounting instructions for Moteck SG2100A
using Usals (Diseqc 1.3)

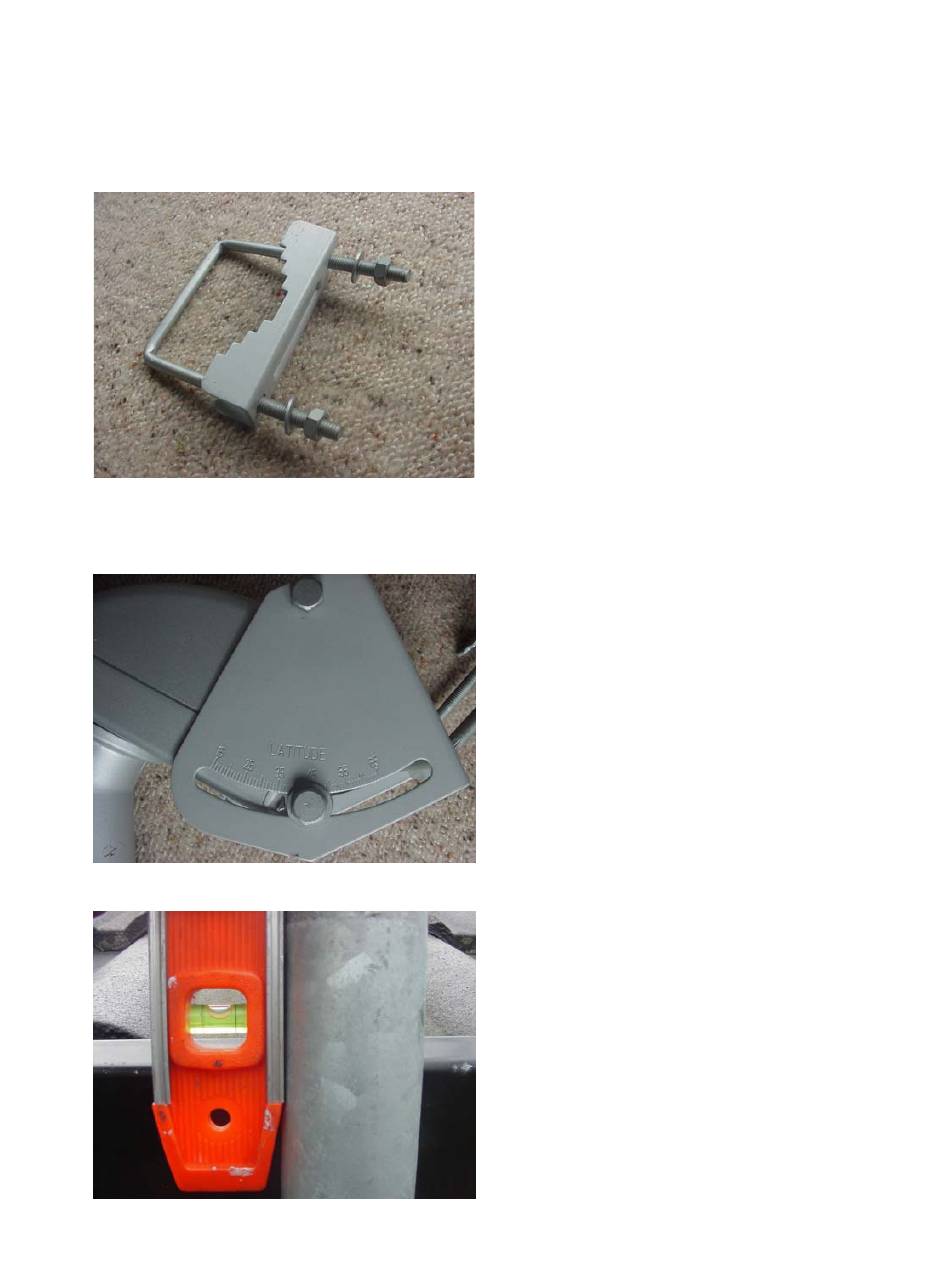

Firstly you must oil the U bolts
Next assemble the motor and set the latitude (not elevation) on the motor to your latitude.
You can obtain your latitude and longitude from the local airport or a GPS or you can
look it up on internet. It only needs to be accurate to one decimal place.
After this make sure your mounting pole is level
Advertisement
Table of Contents
Summary of Contents for MOTECK SG2100A
- Page 1 Setup and mounting instructions for Moteck SG2100A using Usals (Diseqc 1.3) Firstly you must oil the U bolts Next assemble the motor and set the latitude (not elevation) on the motor to your latitude. You can obtain your latitude and longitude from the local airport or a GPS or you can look it up on internet.
- Page 2 Setup and mounting instructions for Moteck SG2100A using Usals (Diseqc 1.3) Attach the motor to the mounting pole Attach the dish to the motor so that the dish is square or symmetrical with the motor. Tighten up the U bolts permanently. They don’t need to be adjusted again.
- Page 3 Setup and mounting instructions for Moteck SG2100A using Usals (Diseqc 1.3) Next go to Motorized settings. Choose satellite B1. Set DiSEqC Motor to USALS. Go to Antenna Position and enter latitude and longitude for your location Go to Satellite at the top of the screen and change to another satellite.
- Page 4 Setup and mounting instructions for Moteck SG2100A using Usals (Diseqc 1.3) Now return to the roof and align the dish to B1. Left and right movement of the dish is done by rotating the whole assembly (motor + dish) on the mounting pole.
- Page 5 Setup and mounting instructions for Moteck SG2100A using Usals (Diseqc 1.3) You can now go to each satellite in motorized settings and enable USALS for each satellite that you want to receive. Usually B1, C1, B3 As you go to each satellite the motor will turn to where the satellite should be.
