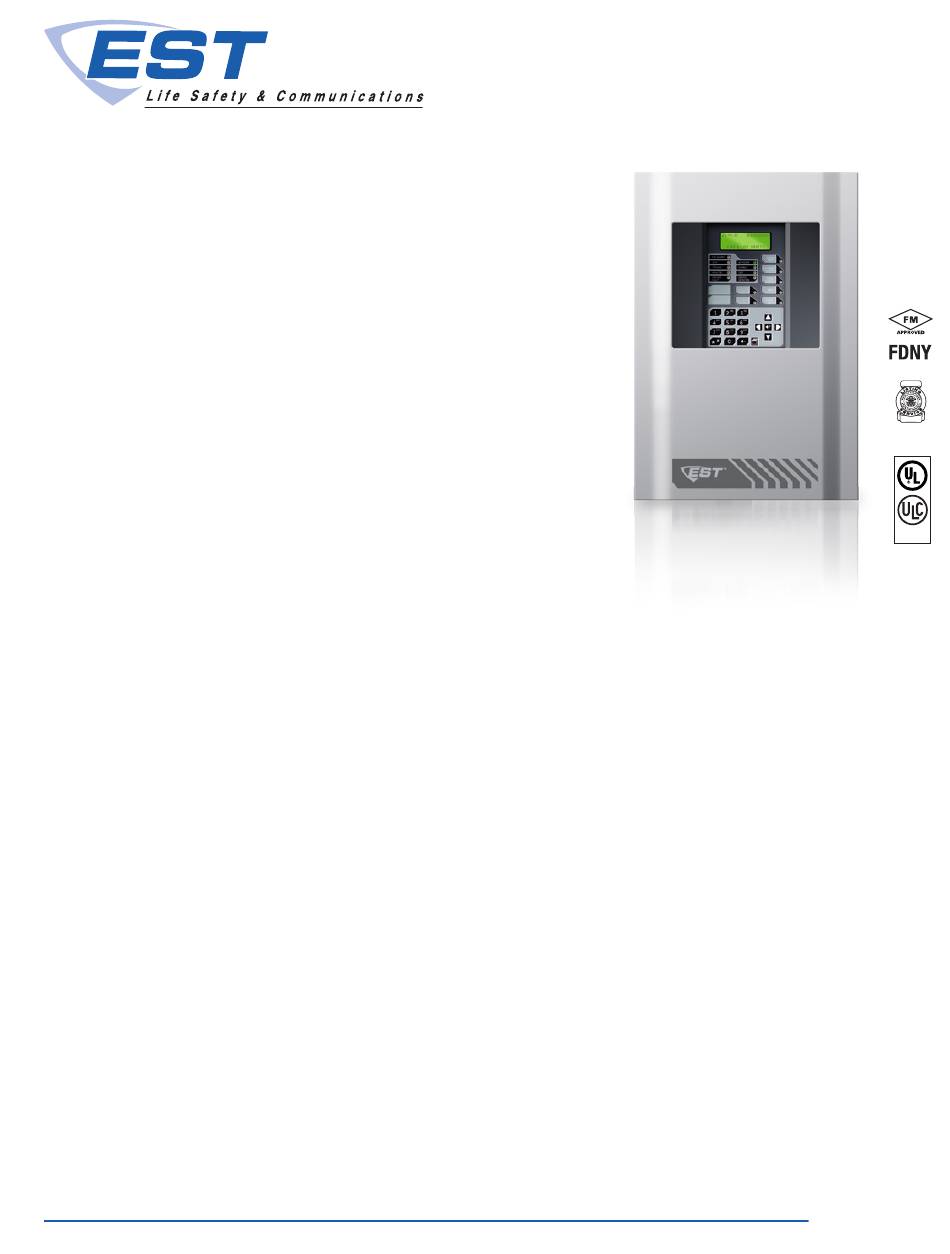

The Edwards EST iO64 intelligent life safety system offers the
power of high-end intelligent processing in a configuration that
delivers an uncomplicated solution for small to mid-sized applica-
tions. With intelligent detection, electronic addressing, automatic
device mapping, optional Ethernet
easily-configured option cards and modules, this flexible system
offers advanced features that benefit building owners and contrac-
tors alike.
The iO64 provides one Class B analog device loop that supports
up to 64 device addresses, and two Class B Notification Appli-
ance Circuits (NACs). Optional Class A device wiring is available
with the use of a module.
This life safety system features an attractive design that fits with
any decor. Its distinctive doorfront offers a contemporary look
that's available with red or silver finishes. All LED indicators and its
large backlit display remain easy to see at all times.
The iO64 supports a wide range of accessories and related equip-
ment, including:
• Signature Series intelligent modules, detectors, and bases
• R-Series remote annunciators
• option cards that expand system capacity and extend system
capabilities
• fully integrated CO detection using Signature Series 2 detec-
tors with or w/o audible signaling.
Page 1 of 10
connectivity, and a full line of
®
EST Catalog u
Features
• Comes standard with one loop that supports up to 64
intelligent devices of any type and two Class B NACs.
• Supports Signature Series modules and detectors
• Combines the Signature intelligent releasing module with
Signature multisensor detectors for reliable suppression
• Form C for Alarm and Trouble, Form A for Supervisory
• Electronic addressing with automatic device mapping
• Optional Ethernet port for diagnostics, programming and
variety of system reports
• Two programmable switches with LEDs and custom labeling
• Supports Genesis horn silence over two wires and UL
1971-compliant strobe synchronization
• Supports up to eight serial annunciators, (LCD, LED-only, and
graphic interface).
• Can use existing wiring for most retrofit applications
• Upload/download remotely or locally
• Two-level maintenance alert reporting
• Pre-alarm and alarm verification by point
• Adjustable detector sensitivity
• 4 x 20 character backlit LCD display
• Optional earthquake hardening: seismic Importance Factor 1.5
Not to be used for installation purposes.
Small Building Fire Alarm Solutions
7165-1657:
85005-0131
D A T A S H E E T
COA 6020
0244
S3000
Issue 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for EST iO64
- Page 1 • Form C for Alarm and Trouble, Form A for Supervisory tors alike. • Electronic addressing with automatic device mapping The iO64 provides one Class B analog device loop that supports • Optional Ethernet port for diagnostics, programming and up to 64 device addresses, and two Class B Notification Appli- variety of system reports ance Circuits (NACs).
-
Page 2: Operation
Display mode: Advances to the previous event. Clear-cut remote annunciation Menu mode: Moves the cursor up. Remote annunciation is a strong suit of the iO64. Up to eight an- Down arrow Display mode: Advances to the next event. nunciators can be installed on a single system. Compatible annun- Menu mode: Moves the cursor down. - Page 3 Panel dimensions, in (cm) • Device maintenance • History Model • Internal status • System configuration 21.50 3.85 15.5 14.25 10.25 iO64 • System status • Walk test (54.6) (9.8) (19.0) (39.4) (36.2) (26.0) • Dialer • CO runtime * Add 1-1/2 in. (3.81 cm) to D1 and D5 dimensions for trim kit.
-
Page 4: Wiring & Configuration
Notification appliance circuits (TB2) trouble event or when the panel is de-energized. The supervisory The iO64 comes equipped with two notification appliance circuits. relay is normally-open, and closes on any supervisory event. The Each circuit can be individually configured for continuous, tempo- alarm relay changes over on any alarm event. -
Page 5: Option Cards
SA-CLA card. The to a Signature data circuit. The SA-CLA is compatible with iO64 control panels only. iO500 panels SMK monitors the operating are Class A ready. The SA-CLA is installed directly to the control power from the power supply. - Page 6 Note: Output circuits are power-limited when the riser circuit is power-limited. Temperature 32 to 120°F (0 to 49°C) Humidity 0 to 93% RH, noncondensing at 90°F (32°C) iO64 Control Panel Signature Series smoke detectors Loop Controller Signature Series modules Compatible DACRs Horn circuit...
-
Page 7: Specifications
Remote annunciator 8 drops max, RS-485 Class B, Class A Input zones 16 max. Battery placement iO64 cabinets accommodate up to 10 A/H batteries. Use an external cabinet for larger Agency Listing UL864, UL2017, CSFM, ULC and NYFD battery sizes. - Page 8 RLED24 Remote Annunciator Zone expander. 24 X 2-LED groups with custom label areas for display of alarm and trouble. iO-CU EST Series configuration and diagnostics utility. White housing. 260097 RS232 cable, 4 conductor, DB9 PC interface Note 1— Available in Canada only. Note 2— Available in International markets.
- Page 9 Note: Model Description Ship wt. For earthquake anchorage, including detailed mounting weights and center of gravity detail, please refer to Seismic Application Guide 3101676- Manual releasing station (double-action). EN. Approval of panel anchorage to site structure may require local AHJ, 278A-REL English markings, black text on yellow 1.0 (0.45)
- Page 10 Contact us... Email: edwards.fire@fs.utc.com Web: www.est-fire.com EST is an EDWARDS brand. 1016 Corporate Park Drive Mebane, NC 27302 In Canada, contact Chubb Edwards... Email: inquiries@chubbedwards.com Web: www.chubbedwards.com © 2013 UTC Fire & Security Americas Corporation, Inc. All rights reserved. Specifications subject to change without notice.
