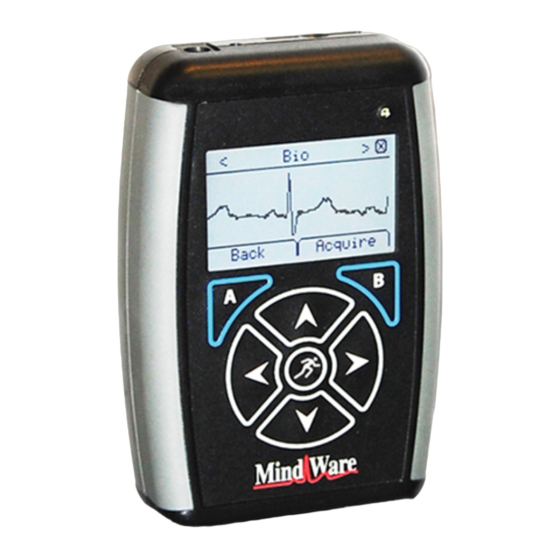

The following is a basic "Quick Start Guide". For more details regarding the
operation of the MindWare Mobile Impedance Cardiograph, please refer to the
full product manual found on the MindWare USB flash drive containing the
software installers.
1. Insert an SD Card
Standalone Physiology Recording
2. Attach signal leads to the Mobile Impedance unit
3. Power on with the Run (
4. Choose Local mode
5. The main screen summarizes the acquisition settings
a. See the full Local Mode documentation for details on the summary
6. Press A to enter Pre-Acquisition
a. Use the left and right arrows to verify signals
7. Press B to start acquisition
a. Acquisition time will update in 5-second increments
b. Do not remove the SD card when the lock ( ) is displayed
8. Hold the left and right arrows to unlock the acquisition and press A to exit
acquisition
9. Press B to open the menu and select Power Off to turn off unit
Quick Start Guide
MindWare Mobile
Impedance Cardiograph
For help please contact: support@mindwaretech.com
Local Mode
) button
MindWare Technologies LTD.
support@mindwaretech.com
www.mindwaretech.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MindWare Technologies Mobile
Summary of Contents for MindWare Technologies Mobile
- Page 1 Impedance Cardiograph The following is a basic “Quick Start Guide”. For more details regarding the operation of the MindWare Mobile Impedance Cardiograph, please refer to the full product manual found on the MindWare USB flash drive containing the software installers.
- Page 2 Press Start/Stop to end acquisition and choose Exit to leave acquisition mode Press Exit in BioLab to exit the application On the Mobile unit, press B to enter the menu and choose Power Off to turn off the unit 0981...
