Summary of Contents for Jonix VMC

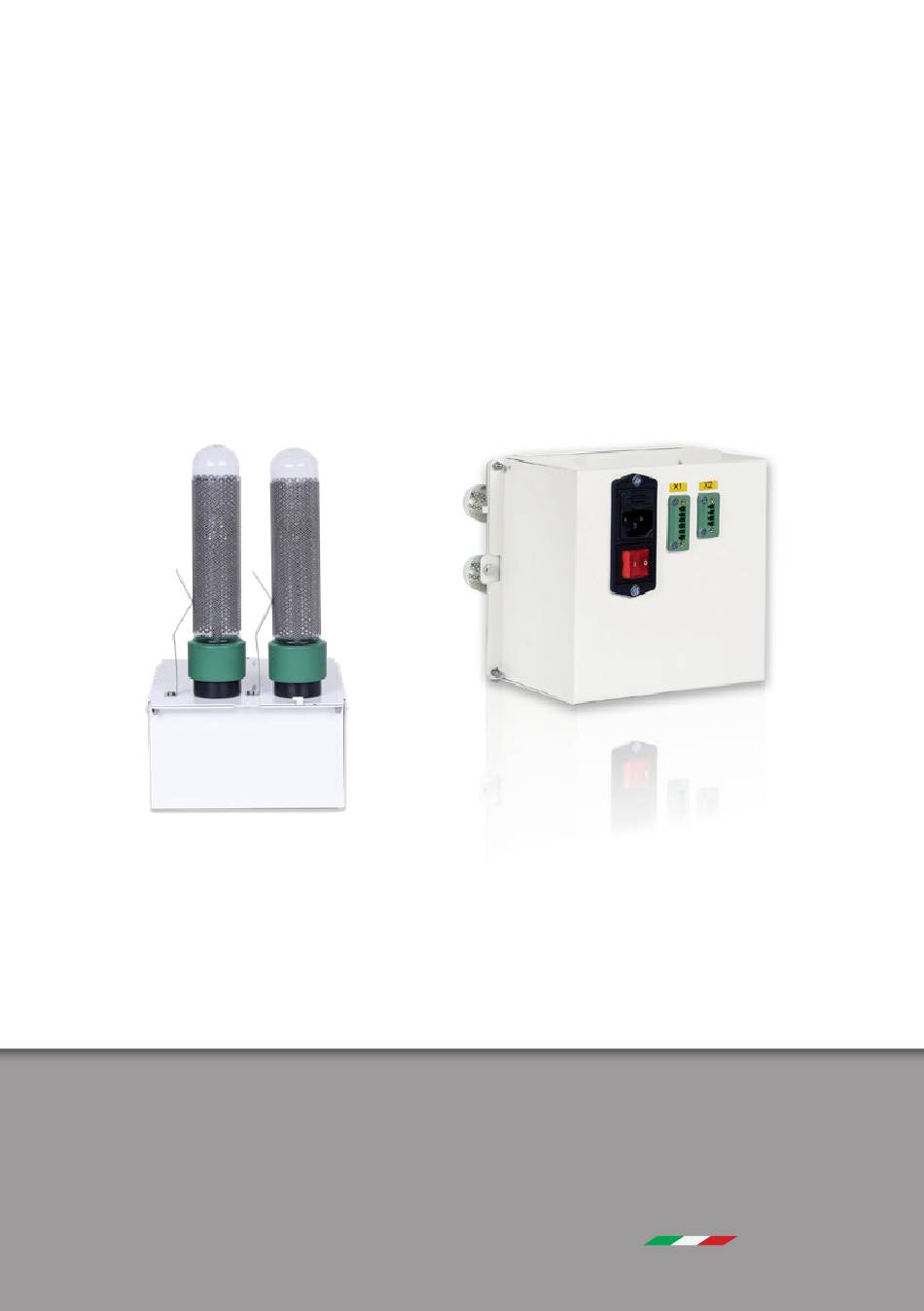

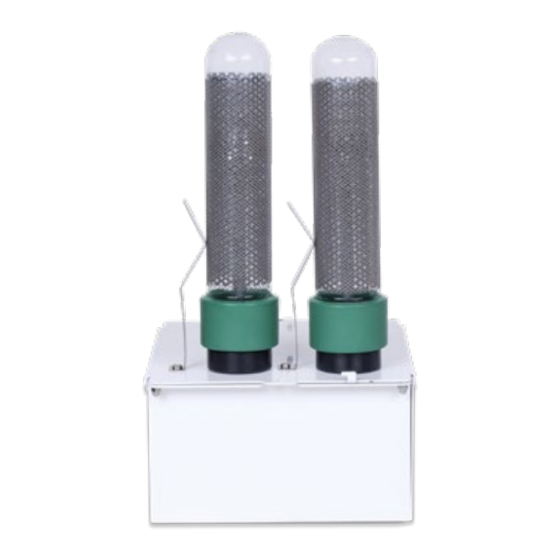

- Page 1 JONIX USE AND MAINTENANCE MANUAL DUCTABLE IONISING MODULE MADE IN ITALY...
- Page 2 These instructions are translated from Italian (the original language). JONIX srl reserves every right concerning this manual, including the right to make any necessary change or improvement to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part this manual...
-
Page 3: Table Of Contents
3 - THE OPERATING SYSTEM 4 - TECHNICAL DATA JONIX 4.1 - COMPONENT DESCRIPTION JONIX 4.1.1 - Technical features JONIX 4.2 - SPARE PARTS AVAILABLE ON ORDER JONIX 5 - RECEPTION, TRANSPORT AND STORAGE 5.1 - PACKAGING 5.2 - HANDLING AND TRANSPORT 5.3 - INSPECTION UPON RECEPTION... - Page 4 This manual contains the information and all that is required for the transportation, installation, use and maintenance of the Ductable Ionising Module JONIX Improper installation of the device and/or failure to comply with the instructions in this manual, may invalidate the warranty that the Manufacturer issues for its products.
-
Page 5: General Information
In particular, if equipment maintenance is carried out in a way that is not in compliance with the instructions supplied, or in a way to jeopardise integrity or modify features, JONIX srl is relieved from any liability inherent to safety of persons and faulty operation of the equipments. -
Page 6: Symbols
JONIX for another copy or download the document from www.jonixair.com. Repairs and maintenance work must be carried out by JONIX authorised staff or by qualified staff according to the provisions set out by this manual. Do not alter or tamper with the device as it can lead to hazards and the manufacturer of the device shall not be liable for any damage caused. - Page 7 JONIX due to installation, adjustment and maintenance errors or by improper use. Please note that the use of products that require electricity, involves the observance of some...
-
Page 8: The Operating System
• Strong deodorizing action: it eliminates odours from the air flowing through; • Natural process: it does not use nor produces residual chemical substances. New generation ionising units are used in the JONIX module, characterised by high efficiency and selectivity, which do not produce any significant increases in undesirable by- products such as ozone or nitrous compounds, in irritating or even toxic amounts. -
Page 9: Technical Data Jonix Vmc
The the JONIX modules can therefore be perfectly integrated in aeration systems commanded by a central control unit. 4 - TECHNICAL DATA JONIX VMC 4.1 COMPONENT DESCRIPTION JONIX 01 Tab wall hooking 06 Electric socket with fuse holder... -
Page 10: Reception, Transport And Storage
The materials that were not installed for technical requirements are supplied with suitable enclosure secured to the inside or outside of the device itself. The package includes: - N° 1 JONIX Ductable Ionising Module. - N° 1 power supply connector, n° 2 serial connectors. -
Page 11: Installation And Commissioning
J O N I X V M C 6 - INSTALLATION AND COMMISSIONING ATTENTION! Before carrying out any operation on the devices read ALL the instructions in this manual carefully. Definitions: USER: USER/OPERATOR: QUALIFIED STAFF: Person, organisation or Individual been Individuals who have completed a company who or which authorised by the user to... -
Page 12: Getting Started
• Always connect the generator activation contact. This contact must be normally closed in case of active ionization, and normally open in case of deactivated ionization. IMPORTANT The installer and the user, when using the JONIX device, must take into account and solve all the other types of risk associated with the system. -
Page 13: Installing The Device
Using power supply that does not meet the requirements requested by the device could resolve in damaging the device or part of it. • The electrical mains of the JONIX device must be used for the device only, there must be no other devices powered by the same power line. -
Page 14: Electric Power Supply
V M C 6.6 ELECTRIC POWER SUPPLY The JONIX device leaves the factory fully wired. It only needs to be plugged into the electric mains, 230V/ ~1 / 50Hz + PE. Power must be brought to the socket installed on the module by an IEC 60320 C13 type plug. -
Page 15: Using The Device
We recommend you to link the contact of input signal and serial interface RS485. Fig. 02: Once connected to the mains supply, the JONIX module is ready to work. In order to turn on the device act on the red switch 0/I turning it to I;... - Page 16 J O N I X V M C The alarms are split up into type and marked through 2 clean contact usually opened: 1. RL1 Maintenance alarm periodic/replacement. It is enabled after 1000 hours of functioning to indicate the necessity of a periodic cleaning of plasma generators (flashing way 5 sec on, 2 sec off) or after 14000 hours to ask the sostitution of generators themselves (fixed way)..Once done the requested operations the relay can be reset through command on serial line or through IN1 entrance.
- Page 17 J O N I X V M C The registers with variables are the following: N° VARIABLE DEFINITION UNITY NOTES TYPE Firmware code Lecture Firmware version Lecture Modbus destination Lecture / Scripture 0: 2 short size generators 1: 2 long size generators Selected configuration 2: 4 short size generators Lecture...
-
Page 18: Maintenance
7.2 ROUTINE MAINTENANCE The JONIX device requires a small amount of maintenance consisting in regularly cleaning the glass and outside mesh of the condenser. -
Page 19: Cleaning The Ionising Tubes
On/ JONIX Off switch to O. Remove the plug connected to the mains and other plugs from the JONIX module. Fig. 04: Unscrew the 2 screws that fix the module to the wall and extract it horizontally. - Page 20 J O N I X V M C Fig. 07: Wash the mesh under running hot water and dry it thoroughly with a cloth. Do not put back the mesh on the ionising tube if it is even partially wet. Fig.
-
Page 21: External Cleaning Of The Equipment
J O N I X V M C Fig. 10: Reposition the device JONIX by inserting the ionising tubes horizontally into the specific hole and screw the 2 screws that secure the module to the wall. Fig. 11: Reinsert the power supply plug... -
Page 22: Special Maintenance
On/ JONIX Off switch to O. Remove the plug connected to the mains and other plugs from JONIX module. Fig. 13: Unscrew the 2 screws that fix the module to the wall and extract it horizontally. - Page 23 Otherwise contact the manufacturer. Fig. 16: Reposition the device JONIX by inserting the ionising tubes horizontally into the specific hole and screw the 2 screws that secure the module to the wall.
-
Page 24: Operational Check And Troubleshooting
J O N I X V M C 8 - OPERATIONAL CHECK AND TROUBLESHOOTING This section summarises the most common problems that may arise when using the unit. Before contacting customer services, carry out the checks listed below. PROBLEM POSSIBLE CAUSE SOLUTION Check that the plug is connected to the mains power socket. -
Page 25: Disposal
J O N I X V M C 9 - DISPOSAL When JONIX devices are no longer used they must be disposed of in compliance with the regulations in force in the country of installation. The unit consists of the following materials: •... -
Page 26: Warranty Conditions
4. The purchaser has the right to benefit from the 12 month warranty only if the warranty certificate is filled in correctly in all parts and sent within 10 days of purchase to: JONIX S.r.l., Viale Spagna, 31/33 – 35020 Tribano (PD) Italy 5. The warranty is only valid if the system is purchased from an authorised retailer. -
Page 27: Ec Declaration Of Conformity
V M C EU DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY JONIX S.R.L. Legal site Viale Spagna, 31/33 – 35020 Tribano (PD) Scientific site Via Tegulaia 10/b - 56121 Pisa Operative site Via Romagnoli, 12/A - 40010 Bentivoglio (BO) declares that... -
Page 28: Attachments
J O N I X V M C ATTACHMENTS OVERALL DIMENSIONS JONIX VMC 70MICVMC2C... -
Page 29: Electrical Diagrams Jonix Vmc
ELECTRICAL DIAGRAMS JONIX VMC 70MICVMC2C... - Page 30 ELECTRICAL DIAGRAMS JONIX VMC 70MIC2C...
- Page 40 JONIX srl Registered office Scientific headquarters Operational headquarters viale Spagna 31/33 via Tegulaia 10/b via Romagnoli 12/a support@jonixair.com 35020 Tribano (PD) - Italy 56121 Pisa - Italy 40010 Bentivoglio (BO) - Italy www.jonixair.com tel +39 049 9588511 tel +39 050 985165...
