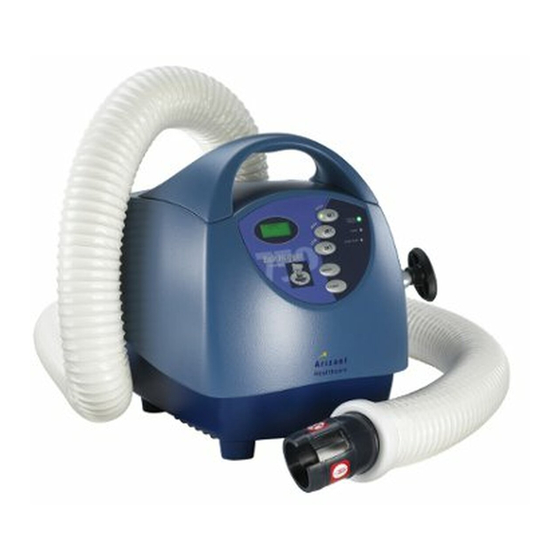

- Page 1 Check the Bair Hugger therapy website to ensure you have the most recent version of this document. www.bairhugger.com reorder #200594D Bair Hugger Model 750 Temperature Management Unit Operator's Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction..................Description of the Total Temperature Management* System....... Indications for Use..................Contraindication..................Warnings....................Precautions....................Proper Use and Maintenance..............Read Before Servicing Equipment............. Overview and Operation..............Unit Power-On-Reset................Overview of Control Panel................ Mounting the Temperature Management Unit to an IV Pole....Instructions for Use................... -
Page 3: Introduction
This manual includes operating instructions and unit specifications for the Model 750 temperature management unit. For information about using Bair Hugger blankets, Bair Paws gowns, or the 241 blood/fluid warming set with the Model 750 tempera- ture management unit, refer to the “Instructions for Use” included with each of these disposable components. -
Page 4: Precautions
Notify physician immediately of vital sign instability. • Do not initiate temperature management therapy unless the Model 750 unit is safely placed on a hard surface or securely mounted. Otherwise, injury may result. -
Page 5: Proper Use And Maintenance
If service does not require the manufacturer’s attention, the Model 750 Service Manual provides the technical information needed to service the unit, or Arizant Healthcare Inc. will provide that information on request. -
Page 6: Overview And Operation
• Performs all self-test functions. • Illuminates indicator lights and all pixels in the alphanumeric display momentarily. • Displays the text “BH 750” and the software revision level in the alphanumeric display. • Sounds the alarm (three low-level clicks). -
Page 7: Overview Of Control Panel
Bair Hugger Model 750 Temperature Management Unit Operator’s Manual Overview of Control Panel 43˚C temp in range 38˚C fault over-temp 32˚C Bair Hugger Bair Hugger Model 750 ambient standby Figure C. Model 750 temperature management unit control panel ALPHANUMERIC DISPLAY The alphanumeric display shows the temperature at the blanket or gown end of the temperature management unit hose in degrees Celsius. - Page 8 Bair Hugger Model 750 Temperature Management Unit Operator’s Manual STANDBY When the unit is in Low, Medium, High, or Ambient mode, press the Standby button to place the unit in Standby mode. When you select the Standby mode, the following events occur: •...
-
Page 9: Mounting The Temperature Management Unit To An Iv Pole
METHOD To mount the Model 750 temperature management unit to an IV pole, simply turn the clamp handle clockwise to tighten the clamp on the IV pole and counterclock- wise to release it. See Figure D. -
Page 10: Instructions For Use
The instructions below describe how to operate the Model 750 temperature management unit. For information about using Bair Hugger blankets, Bair Paws gowns, or the 241 blood/fluid warming set with the Model 750 unit, refer to the Instructions for Use included with each of these disposable components. -
Page 11: Viewing The Temperature Mode Timer
3. Contact a qualified service technician. What to Do in Case of a Fault Condition The Model 750 temperature management unit's software recognizes several non- hazardous conditions and reports those conditions as faults. When a system fault occurs, the software stores the fault code in memory, the amber Fault indicator light flashes, and an alarm sounds. -
Page 12: General Maintenance
Bair Hugger Model 750 Temperature Management Unit Operator’s Manual General Maintenance Cleaning the Cabinet and Hose WARNING Do not immerse the cabinet or hose while cleaning. Moisture will damage the components, and thermal injury may result. PRECAUTIONS • Do not use a dripping wet cloth to clean the cabinet. Moisture may seep into the electrical contacts and damage the components. -
Page 13: Technical Support And Customer Service
In-Warranty Repair and Exchange Call Arizant Healthcare customer service if your Model 750 temperature management unit requires factory service. A customer service representative will give you a Return Authorization (RA) number. Please use this RA number on all correspondence con- cerning your temperature management unit. -
Page 14: Specifications
Bair Hugger Model 750 Temperature Management Unit Operator’s Manual Specifications Physical Characteristics 12˝ high x 13.5˝ deep x 10˝ wide DIMENSIONS 30 cm high x 34 cm deep x 25 cm wide 15.5 lb (7kg) WEIGHT 55 dBA RELATIVE NOISE LEVEL... - Page 15 Bair Hugger Model 750 Temperature Management Unit Operator’s Manual Specifications – Continued Electrical Characteristics 1400 W Resistive HEATING ELEMENT Meets UL 60601-1 and IEC 60601-1 requirements. LEAKAGE CURRENT Operating speed: approximately 4,000 rpm BLOWER MOTOR Airflow: up to 48 cfm or 23 L/s...
-
Page 16: Definition Of Symbols
Bair Hugger Model 750 Temperature Management Unit Operator’s Manual Definition of Symbols The following symbols may appear on the product’s labeling or exterior packaging. ON/STANDBY ON (used on isolation switch) OFF (used on isolation switch) ON/OFF push button switch Temperature control... - Page 17 Actamed Limited, Calder Island Way, Wakefield, WF2 7AW TEL (44) 1924 200550 • FAX (44) 1924 200518 * Bair Hugger, Bair Paws, Arizant, Arizant Healthcare, bright ideas that work, Total Temperature Management, 241 and the Bair Hugger and Arizant logos are trademarks of Arizant Healthcare Inc., registered or pending in the...
