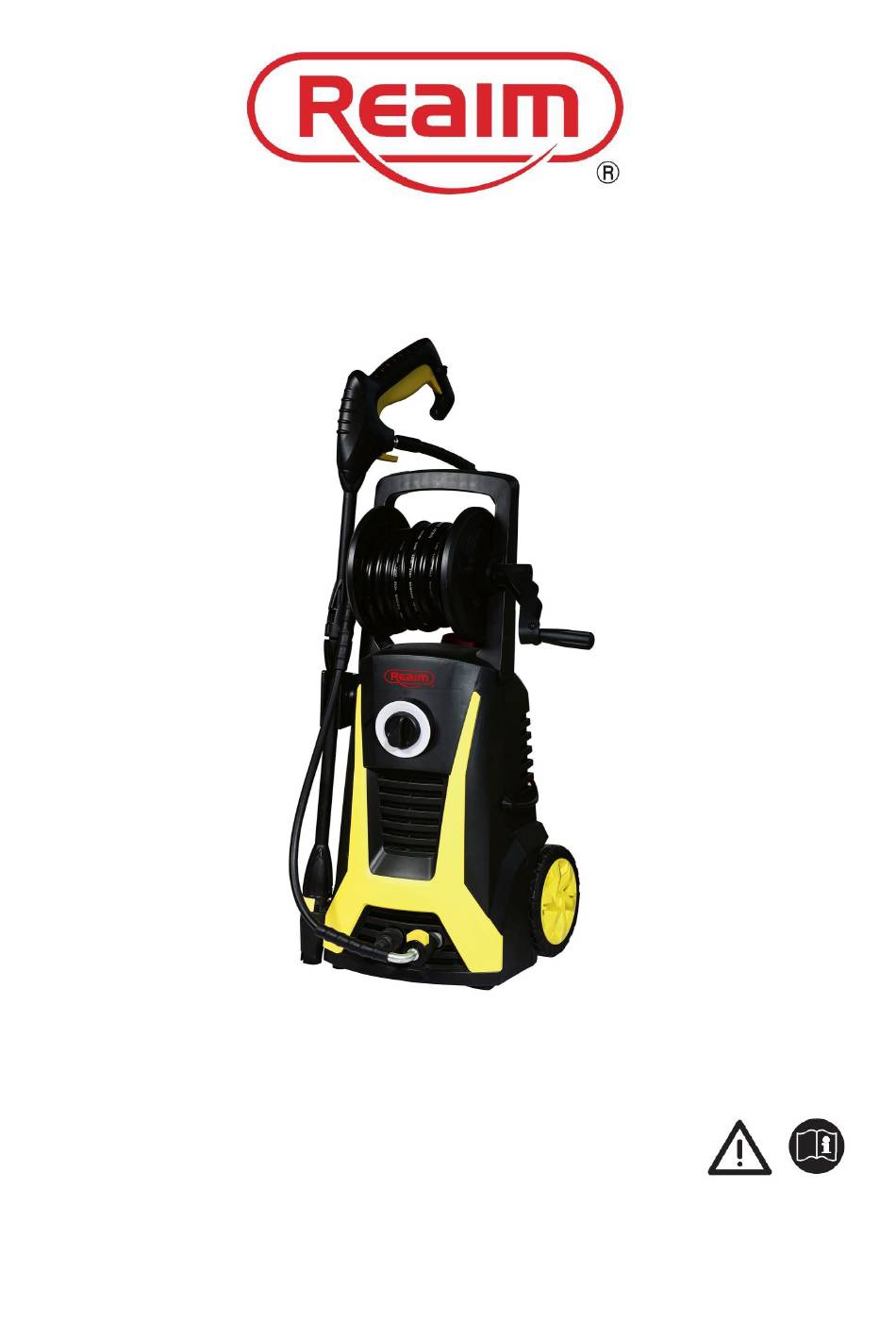

- Page 1 ELECTRIC PRESSURE WASHER BY03-VBP-WTR CAUTION : All Operators Must Read These Instructions Before Use.
-
Page 3: Safety Instructions
Hold the lance firmly in your hands. IMPORTANT! The operator and persons within close proximity to the cleaning area must take Safety Instructions necessary measures to protect themselves from dislodged debris when in use. The appliance has been designed solely for ... - Page 4 always be completely unwound to avoid seek medical assistance (the detergent letting the cable overheat. can cause irritations or burns). If an extension cable is used, the plug and In the event that the appliance breaks socket must be waterproof and conform to down, do not attempt to repair it yourself the requirements below regarding the but contact a professional technician to...
- Page 5 Know Your Electric Pressure Washer Read the operator’s manual and safety instructions carefully before operating the electric pressure washer. Compare the illustration below to the electric pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
-
Page 6: Product Description
DO NOT return the unit to applicable regulations. the store. Please call the Realm Do not cover or modify the spray wand or ® the spray nozzles in any way. customer service center (1-888-899- ... -
Page 7: Technical Data
Technical data Fig.2 Model BY03-VBP-WTR Motor Brush holder Max. pressure 2400PSI Max flow 1.75GPM Current Voltage 120V~/60Hz Max. Water Inlet Temperature 104ºF/40ºC Hook SAFETY DEVICES The unloader valve can reduce pressure if it exceeds pre-set values. Locking device on trigger gun (see illustration at the beginning of this manual)! The trigger gun features a locking device. - Page 8 5.Connect the high-pressure hose to the Fig.6 trigger gun and the water outlet by pressing the pawl A or button B (Fig.4). Fig.4 Connect to water supply Garden hose WARNING! The intake water temperature must not exceed 104ºF/40ºC. CAUTION! The washer must only be used with clean water;...
-
Page 9: Operation
you may now plug the pressure washer Fig.9 into the power outlet (Fig. 8). Fig.8 Reset Power light indicator GFCI 3. Turn the switch to the ON position to start NOTE: The GFCI may need to be reset the pressure washer (Fig. 10). when first plugged into the electric outlet. - Page 10 CAUTION! Many detergents may require mixing prior NEVER change nozzles without locking the safety lock on the to use. Prepare the cleaning solution as trigger handle. instructed on the solution bottle. WARNING! High-pressure jets can be 1.Unscrew the cap from the detergent bottle dangerous if subject to misuse.
- Page 11 CAUTION! 4. Insert the U-pin (D) to fix the rotor arm (C). Always test the detergent in an inconspicuous area before use. NOTE: Make sure the rotor arm (C) is properly fixed to the extension lance (A) with 4.Turn on the pressure washer. Pull the the U-pin (D).
-
Page 12: Shutting Down
4.Remove the nozzle from the spray lance water inlet on the unit. and storage them on the washer unit 5. Disconnect high pressure hose (Fig.15). connection on the trigger gun handle. 6. Release the trigger and engage the Fig.15 gun safety lock. WARNING! Turn off the water supply and squeeze the trigger to depressurize the... -
Page 13: Winterizing And Long-Term Storage
• Store the pressure washer indoors in a dry, covered area where it is not subject to Fig.17 adverse weather conditions. Hose • It is important to store this product in a reel frost-free area. • Always empty water from all hoses, the pump, and the detergent bottle before holder storing. -
Page 14: Maintenance
Maintenance 3. Remove additional debris by back flushing water through the nozzle and spray wand. CAUTION! To do this, place the end of your garden Before working hose (with water running) to the tip of the pressure washer, disconnect the plug from nozzle, pushing water and debris out of the power supply socket. -
Page 15: Troubleshooting
Trouble shooting Problems Possible Cause Possible Solution The machine is not plugged- Plug the machine in Machine refuses Faulty receptacle Try another receptacle to start The fuse has blown Replace the fuse Unplug other appliances Faulty extension cable Try without the extension cable Check that hoses and connections are The pump is drawing in air airtight. -
Page 16: Warranty
WARRANTY This product is warranted for a 12 months period effective from the date of purchase by the first user. Damage and/or defects resulting from inappropriate use do not fall under the warranty provisions. We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. - Page 17 WEEE - Waste of Electric and Electronic Equipment The symbol on the product or on its packing indicates that this product may not be treated as household waste. Instead it shall be handed over. To the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
