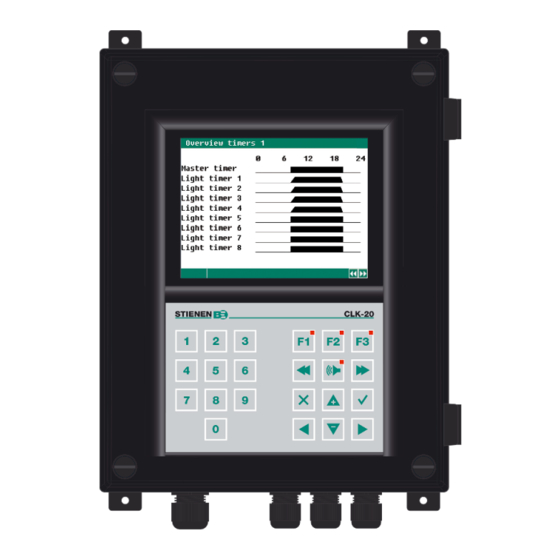

Stienen B.E. CLK-20 User Manual

Clock controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
CLK-20(-i) CLOCK CONTROLLER
EN
© StienenBE / CLK-20-G-EN02020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLK-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stienen B.E. CLK-20

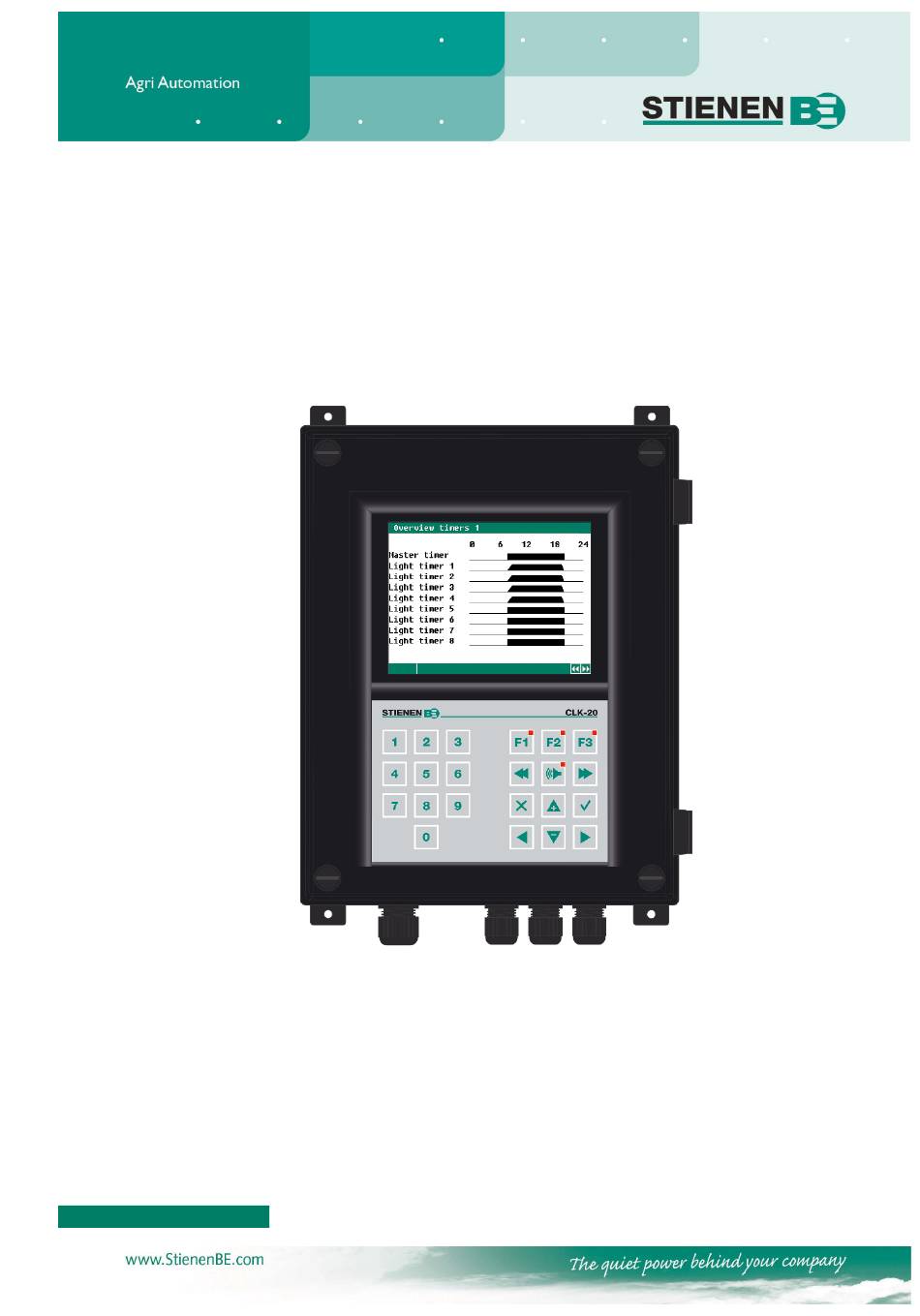

  • Page 1 USER MANUAL CLK-20(-i) CLOCK CONTROLLER © StienenBE / CLK-20-G-EN02020...
  • Page 2 Shut down power before opening the clock controller! The clock controller contains exposed live parts! Only to be opened by authorized personnel! WARNING Although utmost care has been given to the quality of this equipment during the design and manufacturing stages, technical malfunctions can never be ruled out.

  • Page 3: Table Of Contents

    INTRODUCTION Screen Scroll window Operation Numerical keys (0..9) Function keys (graph, alarm, previous / next control etc.) Navigation keys (menu, cursor, mode) MAIN MENU Access code TIMERS Timers Master timer Standard timer Fixed time schedule number Variable time schedule number. Light timers+ Timers Sequential timers...

  • Page 4: Introduction

    INTRODUCTION Column with settings and/or SCREEN Column with calculated Title bar and/or corrected settings Screen number Graph (function key F3) The calculated setting may differ from the value set by the user, due to the growth curve and/or compensations. You can use the key to Time &...

  • Page 5: Numerical Keys (0

    NUMERICAL KEYS (0..9) The numerical keys can be used to enter a abcàâæç2ABCÀÂÆÇ screen number or edit a setting or a text. deféèêë3DEFÉÈÊË Entering text (installer mode) .,1'-:+ The numerical keys 2..9 can be used to edit jkl5JKL the name of a timer. The maximum text length ghiîï4GHI is 15 characters (including spaces).

  • Page 6: Navigation Keys (Menu, Cursor, Mode)

    You can clear the temporary alarm deactivation time by setting "no" in the line. If no access code has been installed on the CLK-20, or if you have already entered the correct access code, you can switch off the main alarm.

  • Page 7: Timers

    TIMERS A maximum of 24 periods can be set on a timer. All times have to be consecutive times. The difference in time between any two times should be at least 1 minute. If you are using a growth curve (“growth curve schedule”), you can automatically activate another schedule, depending on the ages of the animals.

  • Page 8: Standard Timer

    STANDARD TIMER FIXED TIME SCHEDULE NUMBER You cannot change either the number of periods or the period times locally (these settings are copies of the preset time schedule number). You can only change the number of periods and the period times in the preset time schedule number (in this example this is “Time schedule 1”).

  • Page 9: Light Timers

    LIGHT TIMERS+ Light control Light timers enable the use of light control to gradually switch the lights on/off. A light control enables you to create optimum day and night conditions (dawn switch). Standard light schedule 100% 1. The lights will go on at the time set for point 1 (05:00) and the light intensity will be controlled to 20% within a period of 4 minutes ( :04).
  • Page 10 Light control in combination with the master timer 100% 1 Dimtijd licht aan 2 Dimtijd licht uit 3 Nabrandtijd Begin Eind If you set more than 1 period for the master timer, the “Light intensity” settings will apply to all periods of the master timer.

  • Page 11: Timers

    NEST BOX TIMER The CLK-20 has a timer with on/off times for opening or closing the nest boxes. The nest box can even be opened and closed with intervals (according to a pulse/pause principle). Your installer sets the pulse/pause times, so that the nest box will open or close at the speed you require.

  • Page 12: Time Schedules

    TIME SCHEDULES TIME SCHEDULES You can set a maximum of 9 different time schedules. Every time schedule can have a maximum of 24 periods. LIGHT SCHEDULES You can set a maximum of 9 different light schedules. Every light schedule can have a maximum of 48 periods. GROWTH CURVES You can include the time schedules in a growth curve.

  • Page 13: Date/Time

    DATE/TIME In addition to the date and time, you can set the time when a new day starts at “Beginning new day”. Be careful when changing the “Beginning new day” setting; if this time is in a dosing period the “Conflicting periods”...

  • Page 14: Alarm

    ALARM You can switch the main alarm on or off in this screen. The LED will blink at a steady frequency if the main alarm is off. No alarms will be generated then. (alarm test) Test Test “yes”: This enables you to test the operation of the alarm relay (siren).

  • Page 15: Alarm Codes

    (but the time is allowed to be at the same time as the next begin time). No input assigned No input terminal number entered. Software version in CLK-20 is not up to date, update software. • No info from houses The house is not in use.

  • Page 16: System

    SYSTEM This screen shows the device name, the device type (172=CLK-20), the program version, program date and other information. Set the language to ENG (English) for this manual. You can also change the language by pressing and holding functional key F1 while simultaneously pressing the left or right cursor key.

This manual is also suitable for:

Clk-20-i
