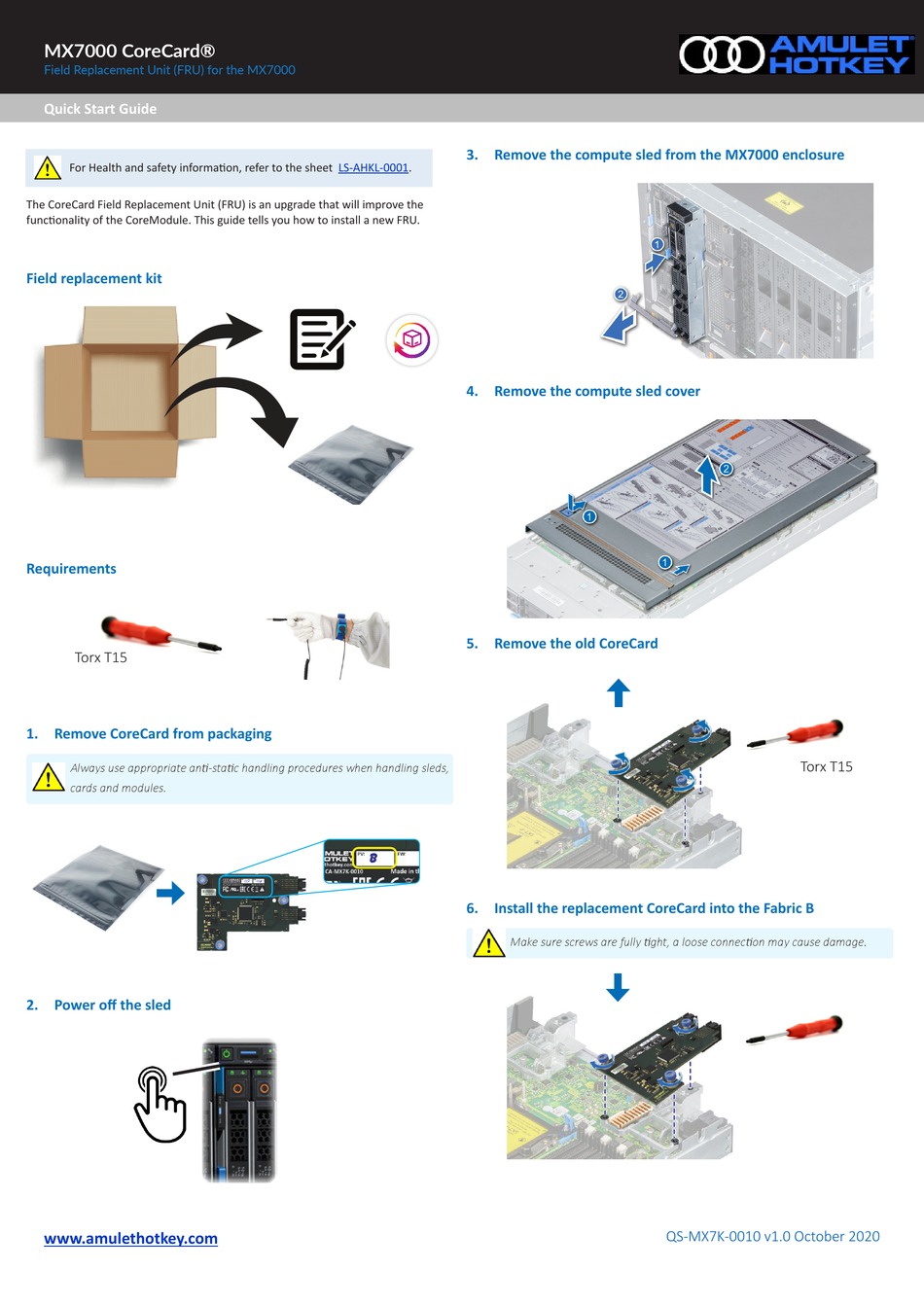

MX7000 CoreCard®
Field Replacement Unit (FRU) for the MX7000
Quick Start Guide
For Health and safety information, refer to the sheet LS-AHKL-0001.
The CoreCard Field Replacement Unit (FRU) is an upgrade that will improve the
functionality of the CoreModule. This guide tells you how to install a new FRU.
Field replacement kit
Requirements
Torx T15
1. Remove CoreCard from packaging
Always use appropriate anti-static handling procedures when handling sleds,
cards and modules.
2. Power off the sled
www.amulethotkey.com
3. Remove the compute sled from the MX7000 enclosure
4. Remove the compute sled cover
5. Remove the old CoreCard
B
6. Install the replacement CoreCard into the Fabric B
Make sure screws are fully tight, a loose connection may cause damage.
Torx T15
QS-MX7K-0010 v1.0 October 2020
