Summary of Contents for Adidas SPORTS RIG

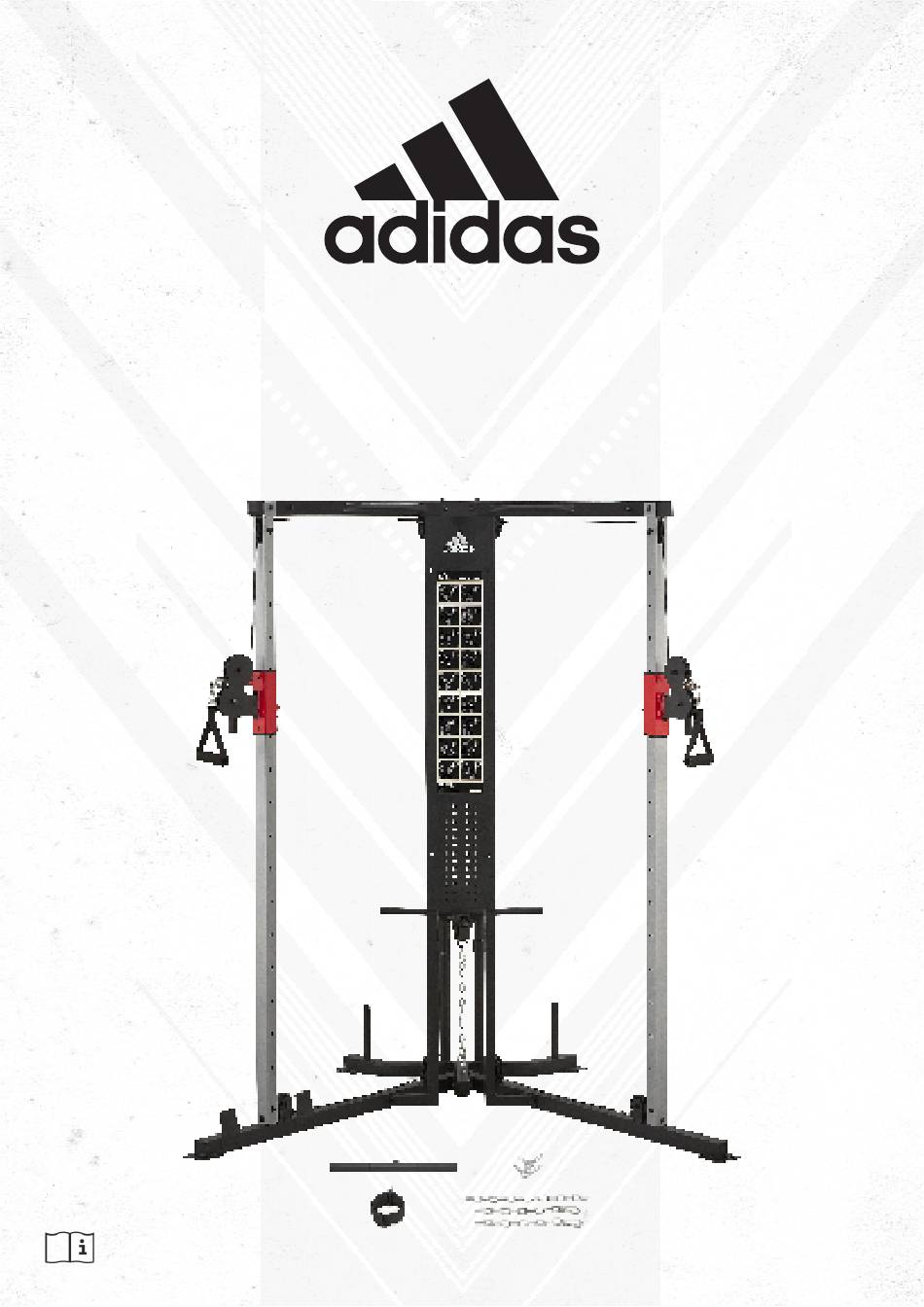

- Page 1 SPORTS RIG ASSEMBLY MANUAL...
-
Page 2: Hardware Pack
M10 x 25mm Bolt x2 M10 x 25mm Bolt x4 M10 Nylon Locknut M10 Nylon Locknut M10 Washer x10 M10 Washer x8 Allen Wrench x1 Allen Wrench x1 Spanner x1 Spanner x1 2 SPORTS RIG - Assembly Manual www.adidashardware.com 3... - Page 3 M10 x 70mm Bolt x6 M10 x 45mm Bolt x11 M10 Nylon Locknut M10 Nylon Locknut M10 Washer x12 M10 Washer x26 Allen Wrench x1 Allen Wrench x1 Spanner x1 Spanner x1 4 SPORTS RIG - Assembly Manual www.adidashardware.com 5...
-
Page 4: Exploded View
EXPLODED VIEW M10 x 45mm Bolt x7 M10 Nylon Locknut M10 Washer x14 Allen Wrench x1 Spanner x1 6 SPORTS RIG - Assembly Manual www.adidashardware.com 7... -
Page 5: User Information
Pulley Bracket PFM2101-07 Sleeve 60 x 50mm PRK3-05 50mm Square Inner Cap PFM4004-18 38 x 25mm Round Plastic Bushing PRK1-03 25mm Round Inner Cap PFM2007-08 25 x 130mm Handle WWW.ADIDASHARDWARE.COM/PRODUCT-SUPPORT PFMH1007A-34 Rubber Bumper 8 SPORTS RIG - Assembly Manual www.adidashardware.com 9... -
Page 6: Assembly Manual
SPORTS RIG ASSEMBLY MANUAL For product information or service please contact: UK: RFE Europa Ltd. 8 Clarendon Drive, Wymbush, Milton Keynes, MK8 8ED. Customer Service: Tel: +44 (0)800 440 2459 Email: techsupport@rfeinternational. c om Europe: serviceeuropa@rfeinternational. c om Spain: serviciotecnico@rfeinternational. c om APAC (excluding Australia): RFE Asia Pacific, 2608-1609, 1 Hung To Road, Kwun Tong, Kowloon, Hong Kong.
