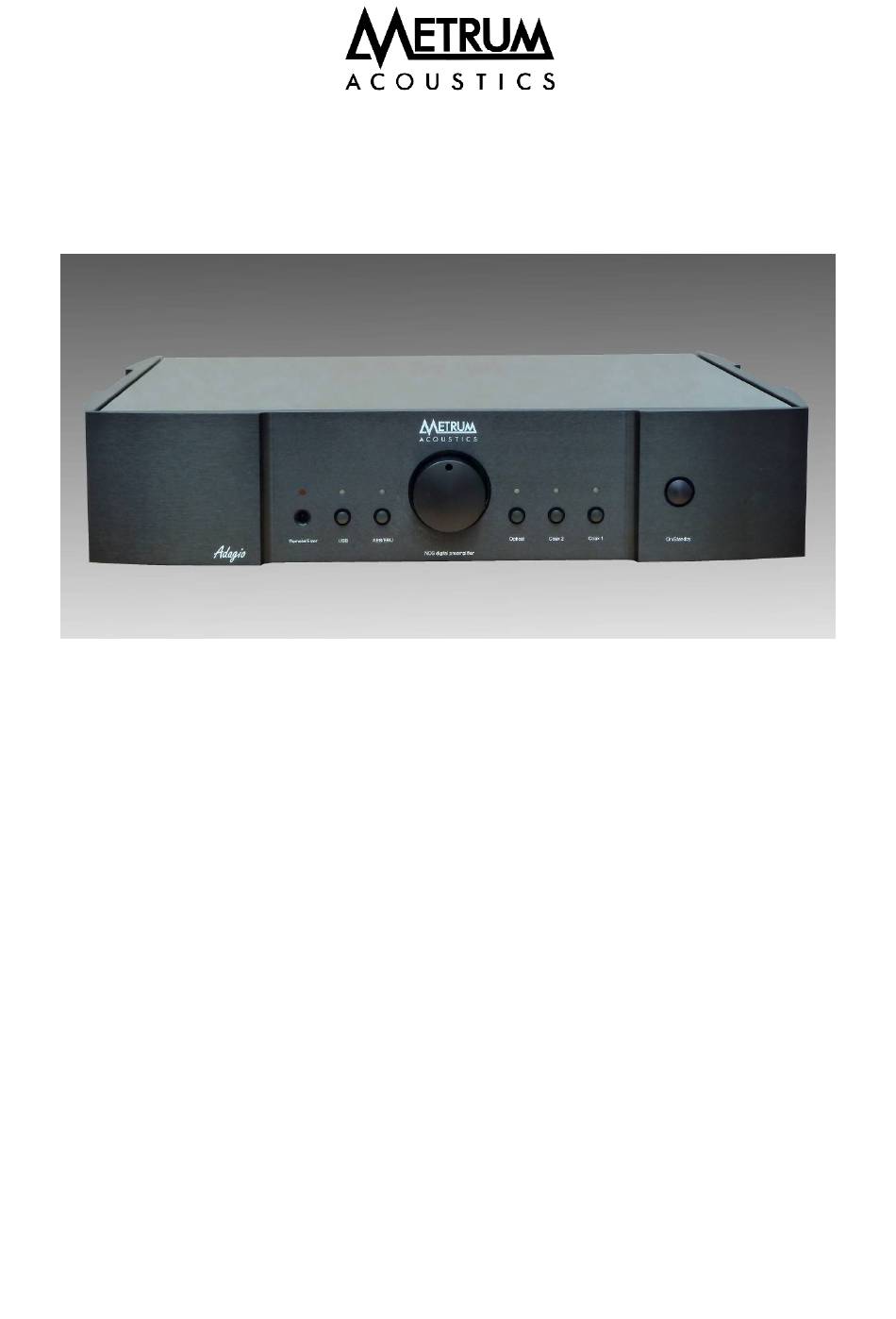

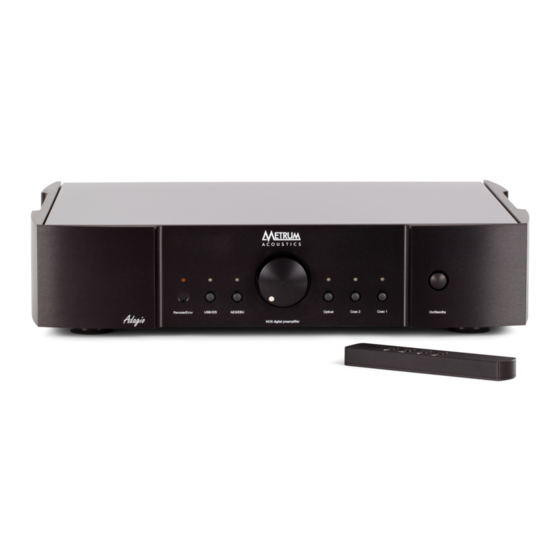

- Page 1 " Adagio Adagio Adagio Adagio " NOS Differential DAC User manual Updated 30-05-2016 Made by ALL Engineering...
- Page 2 Our Adagio pre amplifier is a continuation of the theme which began with the Adagio dac . The Adagio is using eight 24 bit Transient DAC TWO dac chips. Two fully balanced mono dac boards are used having their own separate power supplies.
-
Page 3: Important Safety Instructions
10. The Adagio pre amplifier must be placed on a firm, level surface where it is not exposed to dripping or splashing. - Page 4 What is in the Box The Adagio dac • Power cord (only Euro or USA based power cords) • USB cable • USB stick ( user manual and USB drivers ) • BNC to RCA adapter • Made by ALL Engineering...
- Page 5 RCA outputs: Standard interlinks can be used to connect the dac to your amplifier. The • "Adagio" is designed conform the "Red book standard" so the maximum output will be 2 Volts RMS or 700 mV RMS in case of using the -10dB setting . Your (pre)amplifier should handle this output levels.
- Page 6 XLR outputs: Standard XLR line cables should be used to connect the dac to your (pre) • amplifier. The "Adagio" is designed conform the "Red book standard" so the maximum output for the XLR output will be 4 Volts RMS or 1.4Volts RMS in case of using the -10dB setting.
-
Page 7: Operation
Source selection: The digital inputs can be selected by using five small buttons on the front . • When switching the Adagio to “On”, by default the last selected source will be active. Error indication: When no digital data is coming in, the orange Remote /Error led above the •... - Page 8 , the remote will toggle through the entire range of available digital sources. When the Adagio is set into the stand-by mode, it will remember the last input selection and is available again when the Adagio is switched on.
- Page 9 By turning the housing upside down the printed circuit board will fall out and the component side will be visible now. Remark: In case that the pcb is stocked in the housing you can push one of the buttons to help this procedure. As shown above push the battery out of its holder by using the back side of a swab.
- Page 10 44.1- 384 kHz sampling , 16 or 24 bits Dimensions hxwxd: 85 x 440 x 320 mm. Weight: 11kg. Subject to change without notice. All Engineering BV Ambachtsweg 4K 3953BZ Maarsbergen The Netherlands Phone: +31 (0)343437331 Email: info@metrum-acoustics.nl Website: http://www.metrum-acoustics.com info@metrumacoustics.com Made by ALL Engineering...
