Table of Contents
Advertisement
Important Safeguards ........................................................................................................................................ 2
System Overview .............................................................................................................................................. 3
Sports ........................................................................................................................................................... 4
Remote Control............................................................................................................................................. 4
Scoreboard Layouts .......................................................................................................................................... 5
Module 1 ...................................................................................................................................................... 5
Module 2 ...................................................................................................................................................... 7
Module 7 ...................................................................................................................................................... 7
Installation ........................................................................................................................................................ 8
Assembly of Scoreboards .............................................................................................................................. 8
Mounting of Shot Clock LED-stripes ............................................................................................................ 9
Connections ................................................................................................................................................ 10
Time and ID Settings .................................................................................................................................. 13
Startup and Configuration ............................................................................................................................... 16
Technical Specifications ................................................................................................................................. 17
Troubleshooting .............................................................................................................................................. 18
Cable Layings ................................................................................................................................................. 18

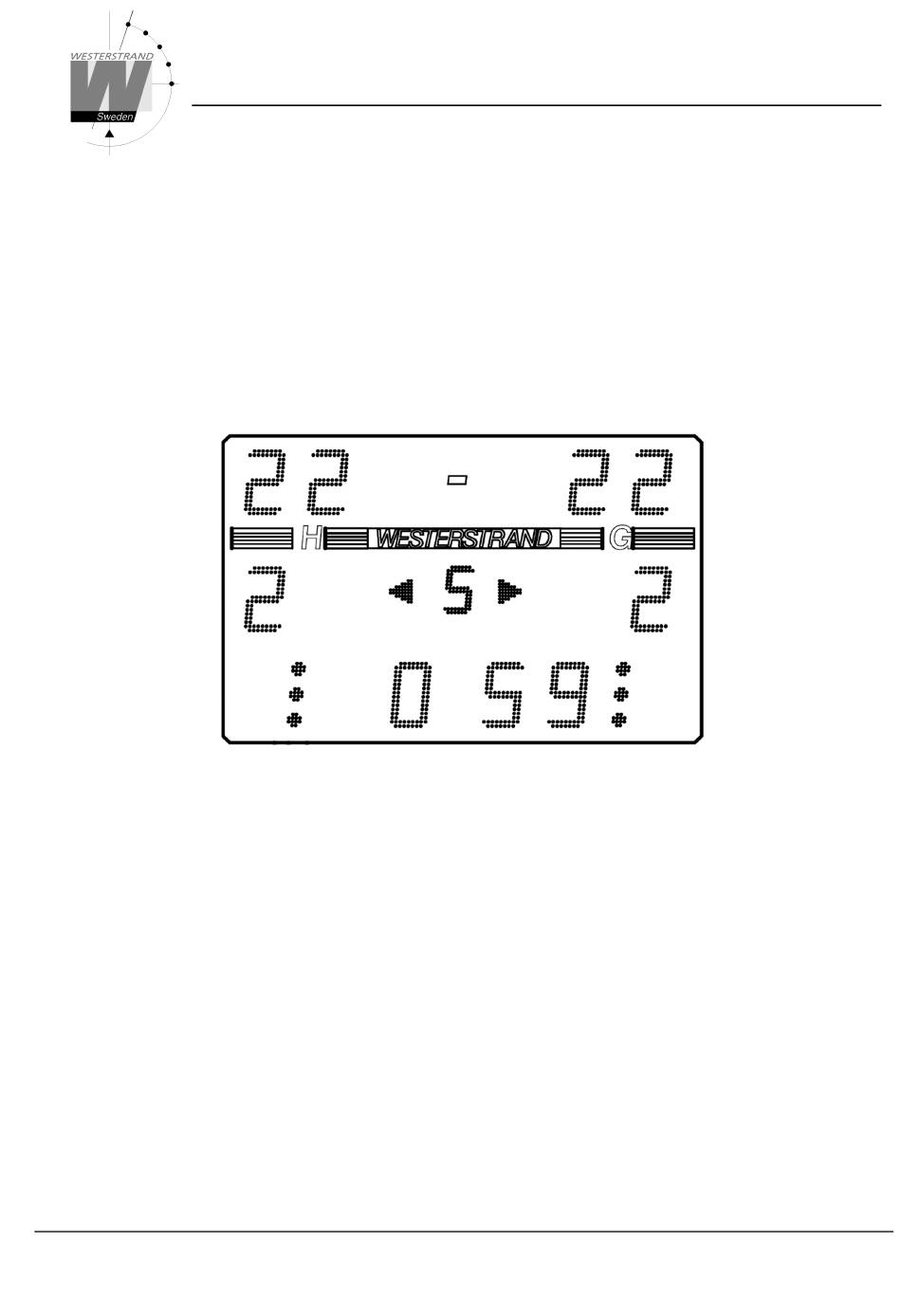

WESTERSTRAND URFABRIK AB
Box 133
545 23 TÖREBODA
WESTERSTRAND SPORTSYSTEM
BASIC 190/250
Operation Instructions
Operation Instructions
LED190/250 BASIC
Tel. 0506 48000
Fax. 0506 48051
Dokument:
Författare:
Datum:
Page:
Internet:
http://www.westerstrand.se
E-Mail:
info@westerstrand.se
4253en08.docx
CF
2019-11-19
1 av 18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WESTERSTRAND LED190 BASIC
Summary of Contents for WESTERSTRAND LED190 BASIC
-
Page 1: Table Of Contents
Connections ..............................10 Time and ID Settings ..........................13 Startup and Configuration ..........................16 Technical Specifications ..........................17 Troubleshooting .............................. 18 Cable Layings ..............................18 WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48051 E-Mail: info@westerstrand.se... -
Page 2: Important Safeguards
If the product is equipped with a plug (grounding type) this shall be connected to an outlet that is intended for the product. The plug must be easy to disconnect without moving or dismantle the product. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se... -
Page 3: System Overview
Module 4, the shot clock, can be ordered with or without match clock. Shot clocks with match clock (FIBA version) can also be connected to a LED-stripe. The shot clock is controlled by a handle that is connected to the remote control. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se... -
Page 4: Sports
If a match was running when the remote was turned off, the question “Restore Data?” will be shown at startup. Press [Yes] to restore the match or [No] to go to the start menu. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se... -
Page 5: Scoreboard Layouts
Current set Match indicator Start/stop VOLLEYBALL BADMINTON / TABLE TENNIS Score Score Time-out Player changes / Serve Current set Current set Serve Time-out WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48051 E-Mail: info@westerstrand.se... - Page 6 Match indicator Attempt /stopped Start/stop Score Penalty time Score Warning Period Match time Rond Match indicator Match time Match indicator Start/stop Start/stop WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48051 E-Mail: info@westerstrand.se...
-
Page 7: Module 2
Player score Variant 1 Variant 2 Variant 1: Individual foul with variable player numbers Variant 2: Individual foul with variable player numbers and score per player. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48051 E-Mail: info@westerstrand.se... -
Page 8: Installation
For scoreboards in 110-housing intended for mounting outdoor or in ice rinks: Install the scoreboard according to drawing 081716-00. For scoreboards meant for indoor wall mounting, see the picture below for mounting options. Holders are included in the delivery. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se... -
Page 9: Mounting Of Shot Clock Led-Stripes
The stripe with only red LED:s is placed around the rest of the backboard and is only connected with one connector. See chapter “Connections” for instructions on how to connect the LED-stripe to the shot clock. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se... -
Page 10: Connections
TC: Connect +IMP to +IMP and –IMP to –IMP. See the next page for DIP and jumper settings. Note that DCF has a limited range and will not work in all regions. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se... - Page 11 If the main scoreboard is not on when the remote is started, a message “Error: Radio out of range” will be shown. If this is the case, turn the remote off, start up the scoreboard and then restart the remote control. WESTERSTRAND URFABRIK AB Box 133 Tel.
- Page 12 Note that the polarity of ‘A’ and ’B’ can differ between different manufacturers of RS485 modems. When using Moxa modems, always connect ‘D-‘ to ’A’ and ’D+’ to ’B’. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se...
- Page 13 Connect RS485 and the LED-stripes according to the pictures below. Connect the red LED-stripe to the output labelled “1R” and the yellow LED-stripe to the output labelled “2Y”. RS485 Red LED-stripe Yellow LED-stripe WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA...
-
Page 14: Time And Id Settings
Jumper ‘P3’ is used to select the type of time synchronization. Synchronization Type Jumper P3 Software Version DCF and WL receivers Mounted >=121 Not mounted >=122 TC-pol. Not mounted >=147 WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48051 E-Mail: info@westerstrand.se... - Page 15 The radio remote control should send data to scoreboards with ID1 and ID2, but shows ”12345”. Deactivate ID 3, 4 and 5 by pressing the [3], [4] and [5] buttons. Now only “12” will be shown on the display. WESTERSTRAND URFABRIK AB Box 133 Tel.
-
Page 16: Startup And Configuration
Automatic display off: Inactivates the automatic display of real-time. Change Language To change the language, press button [Change Language] and then select the correct language. This is normally set at delivery. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA... -
Page 17: Technical Specifications
2 x 40 250/140 120/65 117624-04/-22 Module 4 Shot clock FIBA 2 x 9 2 x 630x560x70 2 x 40 250/140 120/65 WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48000 Internet: http://www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48051 E-Mail: info@westerstrand.se... -
Page 18: Troubleshooting
One scoreboard is always set to “server” and must be powered for the radio to work. If there are several Westerstrand sport systems in adjacent sport halls, they might interfere with each other. In this case, the solution is to set the systems to different ID:s.
