Summary of Contents for ZIEHL-ABEGG R-DT Series

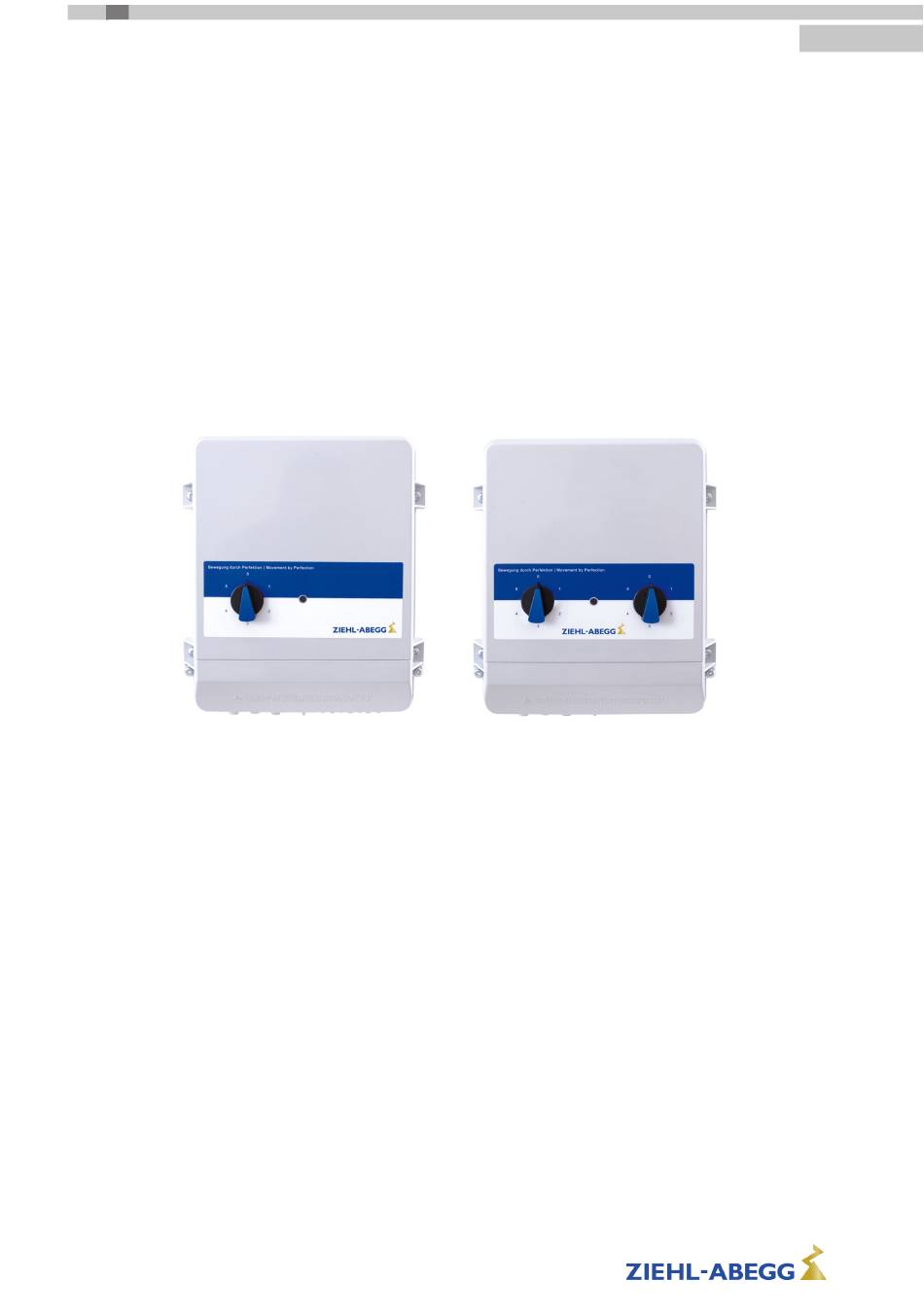

- Page 1 ☞ www.ziehlabegg.com english R-DT-.., RTRD.., RUDT.. Transformer based controllers for variable voltage 3 ~ motors Operating Instructions Keep for reference! L-BAL-E285-GB 1907 Index 002 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions R-DT-.., RTRD.., RUDT.. Content General notes ............. Structure of the operating instructions . -
Page 3: General Notes
Operating Instructions R-DT-.., RTRD.., RUDT.. General notes 1 General notes Compliance with the following instructions is mandatory to ensure the functionality and safety of the product. If the following instructions given especially but not limited for general safety, transport, storage, mounting, operating conditions, start-up, maintenance, repair, cleaning and disposal / recy- cling are not observed, the product may not operate safely and may cause a hazard to the life and limb of users and third parties. -
Page 4: Explanations Of Symbols
Operating Instructions R-DT-.., RTRD.., RUDT.. Product overview Attention! Even after switching off, dangerous temperatures can still occur in and on the device. Attention! Automatically restart after a power failure or mains disconnection! Information A separate fault and performance monitoring-system with an alarm signal function is necessary in order to prevent personal injuries and material damages during malfunctions and in case the device fails. -
Page 5: Maintenance
Operating Instructions R-DT-.., RTRD.., RUDT.. Installation • Operation signalling contacts/voltage output (max. load see connection diagram) – For R-DT/RTRD types, operating message via voltage output and potential-free contacts. For the RTRD type, additional voltage output for warning light. – In the case of R-UDT types, operating message via voltage output. Attention! Automatically restart after a power failure or mains disconnection! Maintenance... -
Page 6: Minimum Space Requirement
Operating Instructions R-DT-.., RTRD.., RUDT.. Installation • Metal screwed-connections are not permitted in plastic housing parts because there is no potential equalization. • Care must be taken to avoid direct radiation from the sun! • The device is designed for vertical installation (bottom cable inlet). A horizontal or reclined installa- tion is only permissible after technical release of the manufacturer! •... -
Page 7: Operation Signalling Contacts/Voltage Output
Operating Instructions R-DT-.., RTRD.., RUDT.. Installation Operation signalling contacts/voltage output Operating indicator contacts, e.g. for shutter control (for contact load, see connection diagram). • Potential-free contacts (only available in the case of R-DT.. and RTRD..EK types): – If the device is switched on when mains voltage is applied (stage 1 - 5), the internal relay is energised (=>... -
Page 8: Enclosure
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure 5 Enclosure Technical data 3 ~ 400 V types • Line voltage: 3 ~ 400 V (-15 % / +10 %), 50/60 Hz • Max. permissible ambient temperature: 40 °C • Output voltages adjustable via 5-step switch: 95 V - 145 V - 190 V - 240 V - 400 V Max. -
Page 9: Connection Diagram
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure Connection diagram R-DT...KT(G) 400V RT RT Kontaktbelastung Contact rating max. max. AC 250 V 2 A AC 230 V 1 A AC 230 V Netz Line 3 ~ 400 V 50/60 Hz Aus / Ein Aus / Ein (nur über Reset) 3 ~ Motor Off / On... - Page 10 Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure RTRD14E(K) 400V nur / only RTRD...EK RT RT WL WL Kontaktbelastung Contact rating AC 230 V max. max. AC 230 V 1 A AC 250 V 2 A max. 1 A Netz Line Aus / Ein Warnlampe 3 ~ 400 V 50/60 Hz Off / On...
-
Page 11: Dimensions [Mm]
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure RUDT...KT 230V RT RT Kontaktbelastung Contact rating AC 230 V max. AC 230 V 1 A Netz Line 3 ~ 230 V 50/60 Hz Schaltuhr Aus / Ein Aus / Ein (nur über Reset) 3 ~ Motor Time switch Off / On... -
Page 12: Manufacturer Reference
Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Telephone: +49 (0) 7940 16-0 Telefax: +49 (0) 7940 16-504 info@ziehl-abegg.de...
