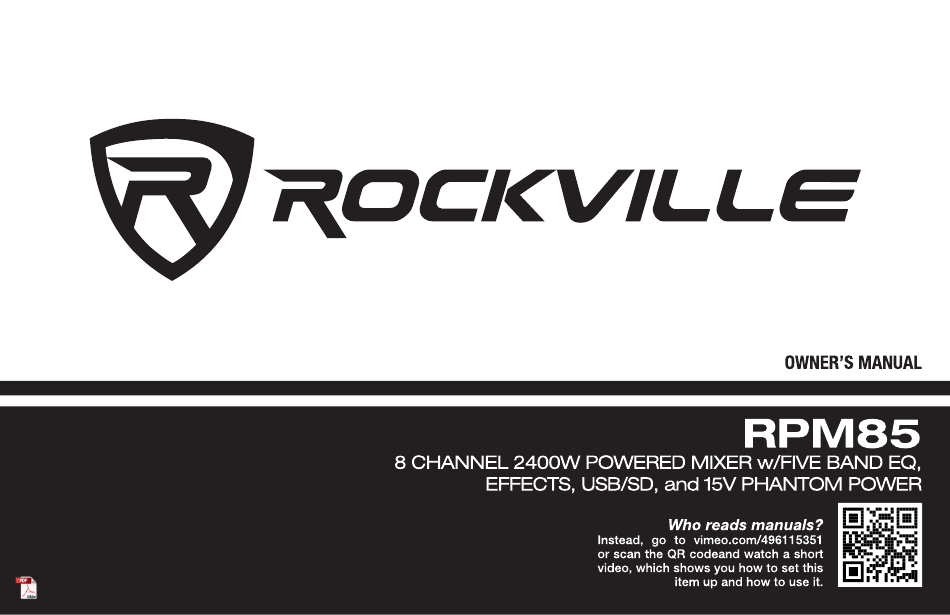

Rockville RPM85 Owner's Manual

Rockville RPM85 Owner's Manual

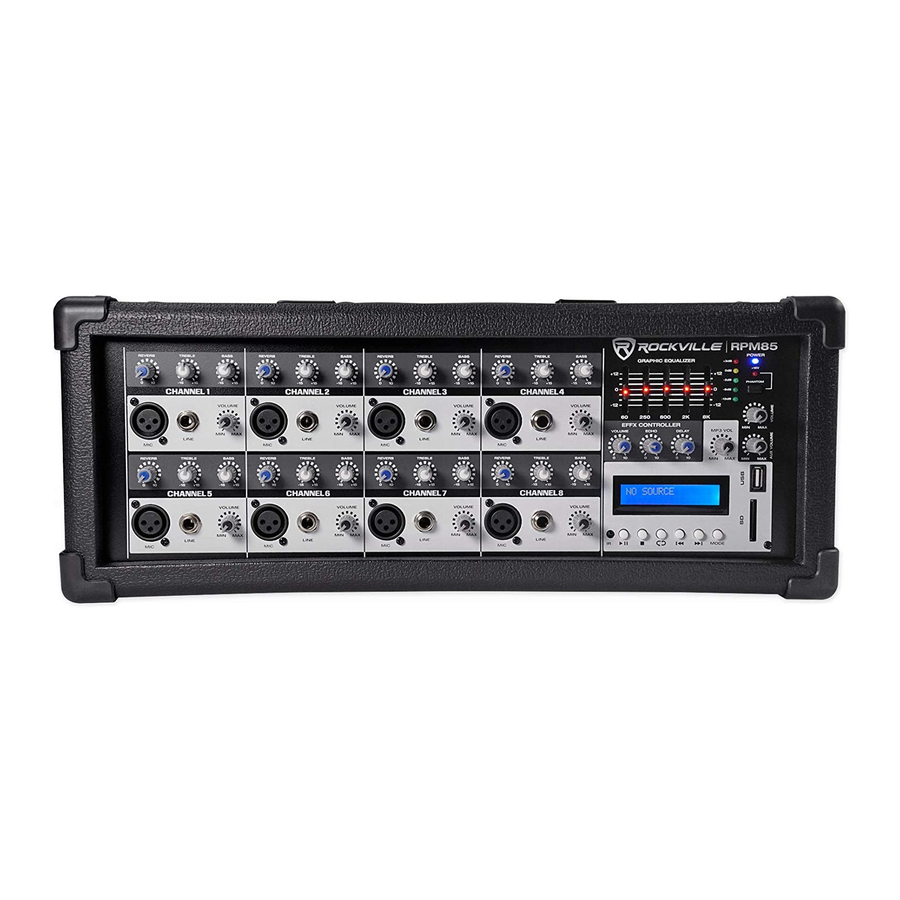

8 channel 2400w powered mixer w/five band eq, effects, usb/sd, and 15v phantom power

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the RPM85 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockville RPM85

  • Page 7 Setup In this setup there is a powered subwoofer connected to the ¼˝ Out jack and two 8-ohm speakers connected to the ¼˝ 8-Ohm Speaker Outputs on the back of the unit.
  • Page 8 Setup (continued) In this setup there is a powered stage monitor connected to the ¼˝ Out jack and two 8-ohm speakers connected to the ¼˝ 8- Ohm Speaker Outputs on the back of the unit.
  • Page 9 Connections Once your speakers are hooked up, there are a variety of ways to use the RPM85's many inputs and outputs. Diagrams for the outputs are located on the next page. Please note: Line level consumer devices such as CD players, tape decks, etc. will require an RCA to ¼˝ cable.
  • Page 10 Connections (continued) Sampler Smart Mixing Effects Processor Digital Recorder Player Phone Sampler DJ Controller Console...
  • Page 11: Operation

    USB/SD Operation Inserting a USB flash drive or an SD card into the corresponding port/slot will set the RPM85 to USB/SD mode and it will automatically begin to play music. Please note: The RPM85 will not recognize USB drives formatted in the NTFS format. Drives must be formatted in the FAT or FAT32 formats.
  • Page 12 Features/Specifications • Individual Volume, Reverb, Bass, and Treble controls RMS Power Output: • Adjustable effects: volume, echo, and delay • 300w x 2 @ 4 Ohm • Built-in Bluetooth playback • 225w x 2 @ 8 Ohm • USB/SD Inputs •...
  • Page 13: Troubleshooting

    Troubleshooting PROBLEM SOLUTION No power 1. Make sure the unit is plugged in and the power switch is in the ON position. 2. Check that the power cable is plugged in tightly to the unit. 3. Check and replace the fuse if necessary. See fuse replacement diagram on page 14. No sound 1.
  • Page 14: Fuse Replacement

    Fuse Replacement Use a screwdriver to release the fuse holder. Remove the fuse holder. Remove the fuse. Replace the fuse. Re-insert the fuse holder.
  • Page 15: Federal Communications Commission Compliance Information

    Inwood, NY 11096 Hereby declares that the product RPM85 8 Channel Mixer complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 RockvilleAudio.com © 2021 ROCKVILLE // Features and specifications are subject to change and/or improvement without notice.
