Hillsdale Furniture 50973 Quick Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (4) Allen Bolts 1/4" x 1/2"
B (12) Allen Bolts 1/4" x 3/4"
C (12) Flat Washers
D (8) Spring Washers
E (1) Allen Wrench
PARTS LIST
F (1) Back Panel
G (1) Seat Frame
H (1) Cross Brace
I (2) Front Legs
J (1) Back Leg Panel
K (1) Seat Cushion

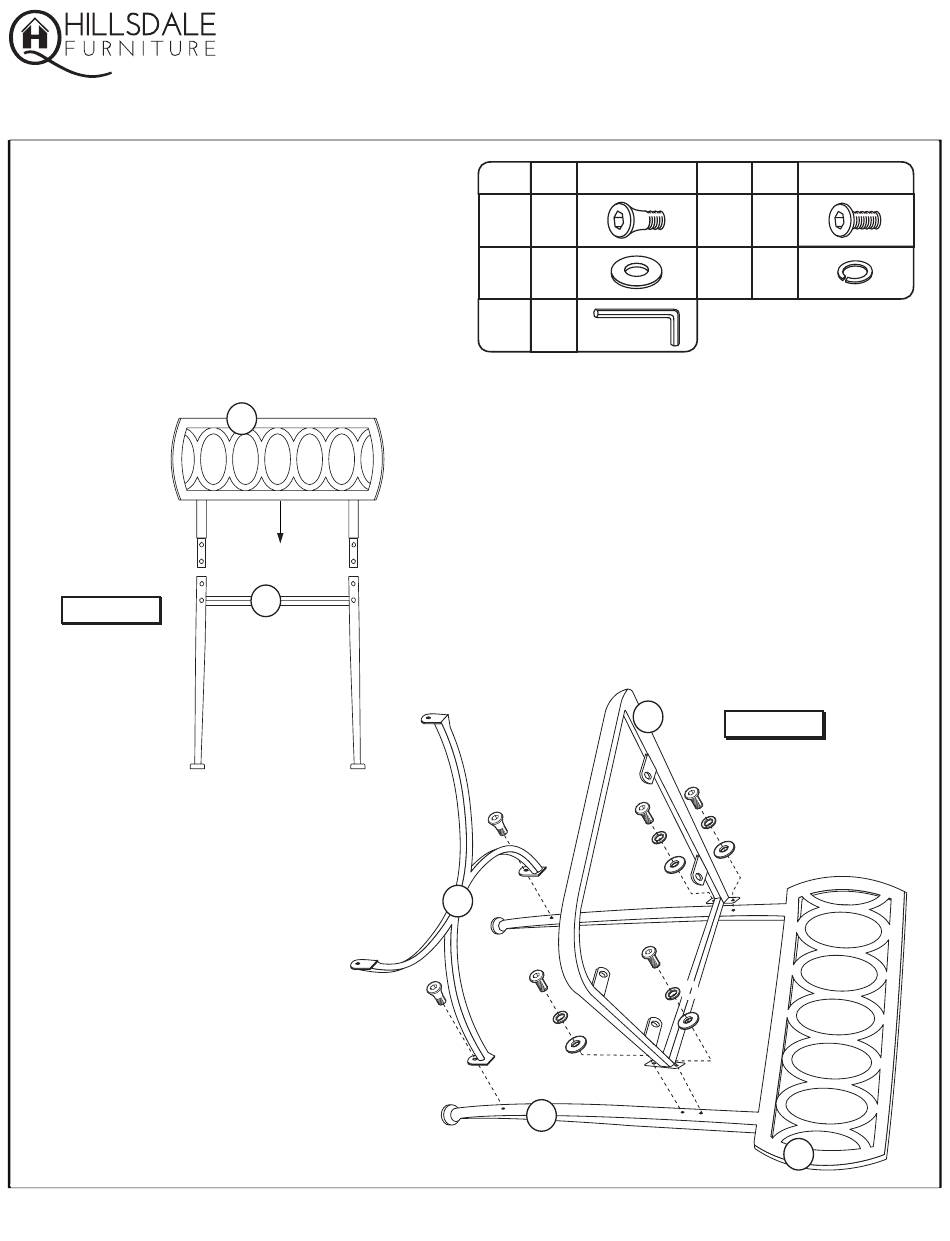

FIGURE 1
STEP 2 - Figure 2
Attach Seat Frame (G) to Back
Panel (F) by aligning the open
holes and securing with 4 Allen
Bolts (B), 4 Spring Washers (D),
& 4 Flat Washers (C) to secure
each in place. Do not tighten
bolts for this step.
STEP 3 - Figure 2
Attach Cross Brace (H) to rear
legs on Back Leg Panel (J) using
1 Sunk Bolt (A) per side. Do not
tighten bolts for this step.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.

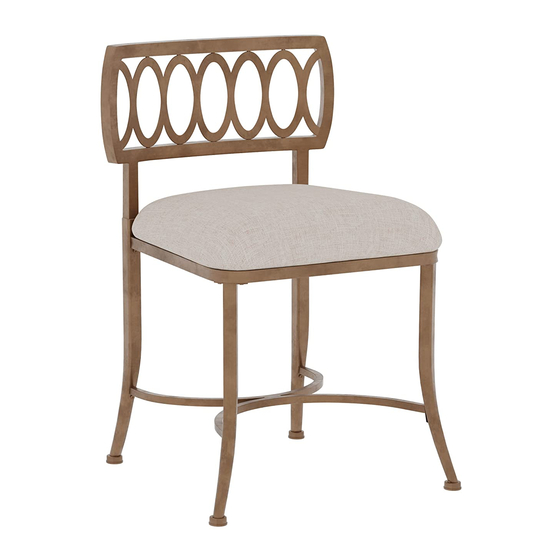

CANAL STREET VANITY STOOL
F
STEP 1 - Figure 1
Begin assembly by inserting Back Panel (F) into
Back Leg Panel (J) making sure to line up holes.
J
Model #50973
PART QTY HARDWARE
A 4
C 12
E 1
A A
H
B B
A A
D D
C C
J
Date: 12-04-2013
PART QTY
B 12
D 8
G
FIGURE 2
B B
D D
B B
C C
D D
C C
B B
D D
C C
F
Page 1 of 2
