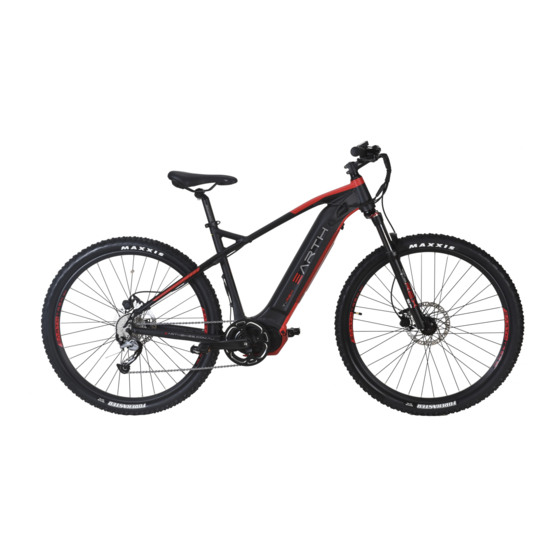

Summary of Contents for Earth T-REX SP 27.5INCH 650B HARDTAIL 2021
- Page 1 ELECTRIC BIKE MANUAL - PLEASE READ ME FIRST!
- Page 2 For your safety and for the safety of others, we recommend that you obey all road regulations and wear a protective helmet. For optimal, safe and enjoyable use of your EARTH e-bike, make sure you thoroughly read this user guide before you first ride.
-
Page 3: Specifications
1. SPECIFICATIONS EARTH T-REX 650B/29 INCH - SP - HARDTAIL - EMTB BIKE COMPONENTS Aluminum 6061 Alloy 27.5 ” *47MM / 29 ” * 51MM Frame Material Fork Hydraulic Lockout Suspension Fork Gearing ALIVIO 9-Speed Shimano Crankset Sprocket 44T Shifters... - Page 4 From 2-8 Hours Depending on Battery Level Indicator WARRANTY Frame 3 Year Battery & Motor & 1 Year (MUST Register your EARTH bike online for an extra 1 year warranty ) Controller Bike Parts & Components 1 Year & Display Panel...
-
Page 5: Display Panel Functions
3.DISPLAY PANEL FUNCTIONS 3.1 Power On/Off Press and hold Power button for 1 second to turn on/off the display. The Display will automatically turn off when there is no operate & ride for 5 minutes. *If the display has been set for password power on, you will need to input the right password before start. 3.2 Motor Power Assist Level Short press UP/DOWN button will change the motor assist level. - Page 6 3.5 Walking mode (6km) Press and hold DOWN button for more then 2 second will activate walking mode, release the button to stop walk mode 3.6 Data Reset Press and hold UP & DOWN buttons together for 1 second can reset several temporary data, temporary data include AVG Speed / MAX Speed / Trip / Time.
-
Page 7: Error Code Definition
4.2 Brightness : Press Up / Down button to change the brightness of the backlight, is darkness， is brightness Auto off : Press UP/DOWN button to change the auto power off time, from 1 to 9/OFF, the number represent time (minutes) for display shutdown, OFF means disable auto off function, default value is 5 minutes. - Page 8 6.REQUIREMENTS PRIOR TO EACH RIDE 6.1 Q UICK RELEASE DEVICES/SEAT POST/ BRAKES/ TIRE PRESSURE Tighten the adjusting nut by hand and move the quick release lever to the closed position.You should feel considerable resistance while moving the lever. If not, re- open and re-tighten the lever, then move it to the closed position so it is in line with the frame *** SEAT POST HEIGHT- DO NOT GO ABOVE THE RECOMMENDED HEIGHT...
-
Page 9: Safety Recommendations
Important: braking distance increases on humid or slippery ground. Saddle-post Do not go above the recommended height. For taller rider please buy the right size frame EARTH ebike or use longer 400mm seat post. DO NOT mount rack on seat post. Reflector... - Page 10 Rack The rack is able to hold a maximum, evenly balanced load of 25kg. Signaling device /Bell The bike is silent. In order to alert others as to your presence, you have a signaling device(Bell): use it only when absolutely necessary, don’t abuse it! WARNING: As with all mechanical components, the bicycle is subjected to wear and high stresses.
- Page 11 Check all points as per monthly service Every six months Check and replace brake pads, if required Check chain for excess play or wear Book general bike service (EARTH electric bike dealer ) Yearly Lubrication as per schedule Book general bike service (EARTH electric bike dealer)
-
Page 12: Maintenance
Make sure all electrical components are wipe clean and dry from any water or moisture. Store your EARTH electric bicycle inside and do not leave outdoor for long period of time. DO NOT USE HOSE OR HIGH PRESSURE WASHER! -
Page 13: Removing - Battery Pack
8. BATTERY 8.1 I NSTALLING AND REMOVING THE BATTERY To remove the battery, use key and turn anti clockwise. The lock is located along the top side of frame. Use your finger and turn latch anti clockwise, hold at that position and then use your other hand to flip down the battery as shown on pictures below. -
Page 14: Charging The Battery
8.2 C HARGING THE BATTERY Never let a battery be charged unattended. We recommend charging battery during the day and NOT over night. The battery’s voltage is indicated by the LED lights located on the battery, and also on the display unit located on the handlebar. Your battery must be charged in an ambient temperature, on a non-flammable and dry surface, away from any sources of heat, humidity or flammable materials. -
Page 15: Battery Autonomy And Lifespan
Battery Your battery is just like a household battery. It contains a limited amount of energy, which diminishes as it is being used over time. EARTH electric bike battery comes with 2 Year limited warranty. Maintenance If you don’t use your bike for a period of time exceeding 2 months, store it in... -
Page 16: Warranty
Your EARTH electric bike comes with; * 3 years frame warranty * 1 years motor warranty Register your EARTH bike online for an extra 1 year warranty * 1 year bike parts & display panel warranty Warranty is not transferable, NO exceptions...
