HEPA Air Cleaners
Installation Manual
Please Read And Save These Instructions
GENERALAIRE
HEPA AIR CLEANERS
®
Model
GFI #
Weight (Pounds)
Dimensions (Inches)
Rated Air Flow (CFM)
Min. Ave. % Eff. 1.0-3.0 Microns
Operation
Replacement Filters
Power Consumption (Watts)
Amperage
Certification
Collar / Intake / Exhaust
Openings (Inches)
Pallet Quantity
Mounting
Warranty (Years)
In the Box
400D (Duct Mount)
4640
Air Flow From Furnace Through Air Cleaner/Fan Coil
1. HEPA (GFI #4645) - Replace Every 2 Years / 2. Pre-Filter (GFI #4646) With Carbon - Replace Every Year
Return Air Duct Mount / Collar
HEPA Air Cleaner, 9' Power Cord, Installation Manual,
Duct Collars, Pre-Filter, HEPA Filter, 3 Mounting
Brackets, Screws, Mounting Template
General Filters, Inc.
43800 Grand River Avenue
Novi, Michigan 48375
Toll Free: (866) 476-5101
www.generalaire.com
24" H
35
24 H x 12.75 D x 17 W
400
HEPA 99.97%
300
115V / 1 / 60Hz; 2.75 Amp
CSA
C
US
Collar: 8 (203mm)
Intake: 3.75 (95mm) x 14.375 (365mm)
Exhaust: 3.75 (95mm) x 14.375 (365mm)
18
5
HEPA Air Cleaner, 9' Power Cord, Installation Manual,
Pre-Filter, HEPA Filter, Screws, Caster Wheels

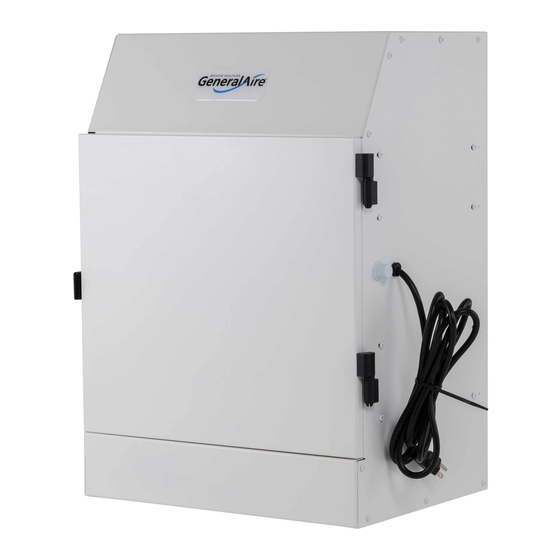

400 Series HEPA Air Cleaners
GFI #4640 (400D)
& GFI #4641 (400R)
70081850
400R (Room/Portable)
4641
Room / Portable
Room / Portable
®
Advertisement
Related Manuals for General Filters General Aire 400 Series
Summary of Contents for General Filters General Aire 400 Series
- Page 1 HEPA Air Cleaner, 9’ Power Cord, Installation Manual, In the Box Duct Collars, Pre-Filter, HEPA Filter, 3 Mounting Pre-Filter, HEPA Filter, Screws, Caster Wheels Brackets, Screws, Mounting Template General Filters, Inc. 43800 Grand River Avenue ® Novi, Michigan 48375 Toll Free: (866) 476-5101...
- Page 2 ® INSTALLATION • WARNING: Disconnect electrical power before beginning installation. 1. Before Installing Your New Surface or Duct Mount HEPA Air Cleaner, Determine: • Location on the return side of the duct for installation of your HEPA 200D or 400D. • Determine if you will be installing via surface mount or duct mount.
- Page 3 ® INSTALLATION CONT. Duct Mount HEPA (Models 400D) 1. Install mounting support bracket on return air duct for bottom support using the provided #8 x 1/2” screws. (Unit can also be installed on the wall, with ducting connecting to return, using 8” provided collars.) Install the side mounting brackets on both sides of the unit by removing and remounting the screws located on the unit.* 2.
- Page 4 ® MAINTENANCE IMPORTANT: To ensure your safety and the longevity of your unit, we recommend: • Contacting a licensed contractor to perform maintenance or repairs. • WARNING: Disconnect electrical power before beginning maintenance. 1. Replace your pre-filter with (GFI #4646) every 3 to 6 months. carbon 2.
