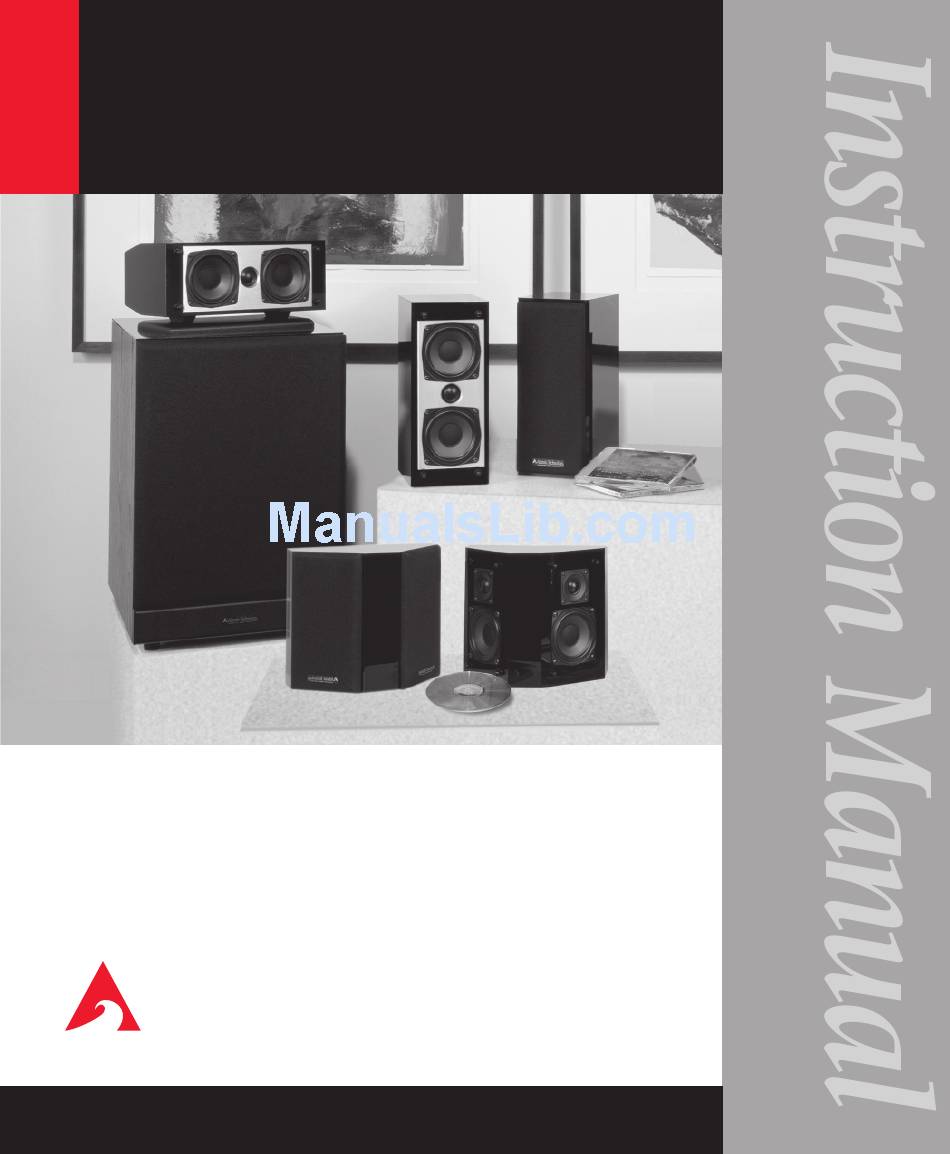

- Page 1 System 4.5 High Performance Ultra-Compact Home Theater Loudspeaker System C o v e r s M o d e l s 4.5 L R , 4.5 C , a n d 4.5 S R Atlantic Technology ® N N O V A T I V E...
- Page 2 The Model 4.5 LR Front Channel Speakers are two-way systems including a built-in high pass filter at 125 Hz, intended for use with a quality subwoofer, such as the Atlantic Technology Model 4.5 PBM. Each speaker contains two 3 1/2" IMG (injection-molded graphite) woofers, and a 1" Ferrofluid cooled silk dome tweeter using a powerful neodymium magnet, in an acoustically inert MDF cabinet.
-
Page 3: Connecting Your System
Warning: To prevent risk of electrical shock or damage to your equipment, always switch off the amplifier or receiver when making connections to the speaker. You can connect your System 4.5 speakers by using a variety of audio connectors, or you can: 1. Remove 1/2" of insulation from each wire end. -
Page 4: Placement And Operation
Speaker/room interactions have a huge impact on the sound of the system. Moving the speakers just a little bit can make a dramatic difference in what you hear. The ultra-compact design of System 4.5 provides you with maximum placement flexibility while creating a large, seamless, acoustically accurate soundfield for your home theater or music system. -
Page 5: Home Theater
LEVEL control also will allow you to adjust the overall sonic balance of the 4.5 C to more closely match the LR speakers, even though the 4.5 C is placed directly above or below the TV screen. Atlantic Technology Center channel should be within 2' of front speaker tweeter height... -
Page 6: Surround Effects
Home Theater systems allow you to select between “Small” and “Large” speakers throughout the system. Since System 4.5 has been designed only to work with an active subwoofer, you should usually set all the speaker positions to “Small.” However, if you are using the 4.5 PBM subwoofer, please follow the connection instructions contained in the subwoofer manual. - Page 7 The System 4.5 will play very loudly when provided with enough clean power to do so. Again, consult your dealer or Atlantic Technology for additional information.
-
Page 8: For Future Reference
Weight (ea., unpacked) 6.5lbs; 2.8kg Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice. Dolby Digital, AC-3, 5.1, Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation. DTS is a registered trademark of DTS Technology.
