Summary of Contents for Senect FEF-05-SC

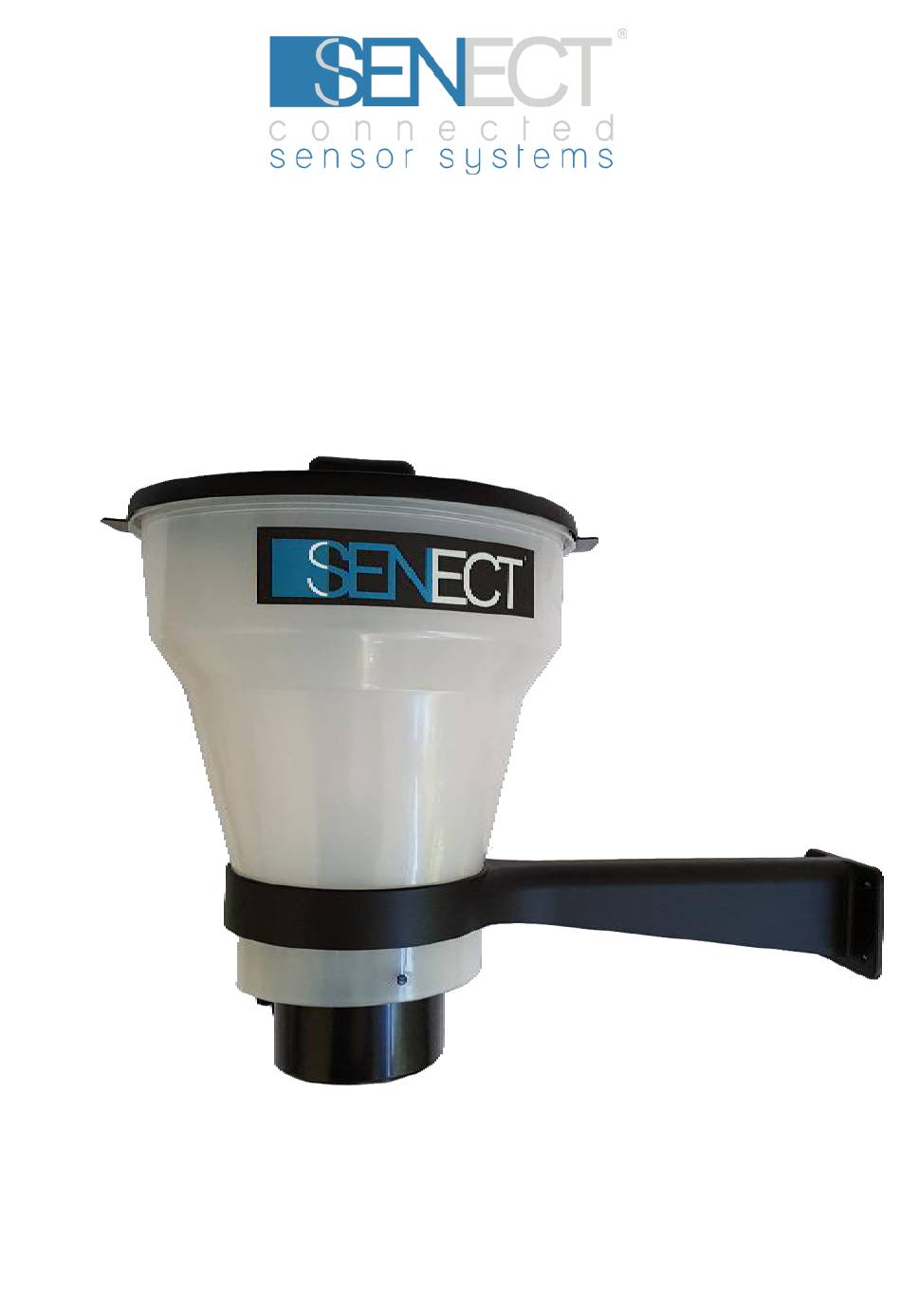

- Page 1 Indoor Feeder 7 l / 5 kg MANUAL...
-
Page 2: Product Type
More information and latest software releases or documents can be downloaded from: www.senect.de Further information, application descriptions and answers to frequently asked questions can be also found on the SENECT Forum: http://forum.senect.de © SENECT GmbH & Co. KG - FW 00.80... -
Page 3: Table Of Contents
Table of contents Table of contents Product type .................. 2 Table of contents ................3 Used symbols and wording ............4 General Security Notes ..............5 Intented use .................. 7 Getting started ................7 Scope of delivery ............... 7 Note ................... 7 Installation and start-up ............ -
Page 4: Used Symbols And Wording
Used symbols and wording Used symbols and wording DANGER! Warning of life threatening dangers. WARNING! Warning of possible life threatening and / or severe irreversible injuries. ATTENTION! Warning of possible medium or slight injury. ATTENTION! Follow the notes to avoid damage of equipment. -
Page 5: General Security Notes
General Security Notes General Security Notes The SENECT IndoorFeeder is an electronic fish feeder. Since it is an electric product the common prerequisites for a safe instrument usage must be fulfilled. Ensure that all cables are installed safely so that no obstacles for persons are built and all. Mount all... - Page 6 General Security Notes Warning: Do never touch the rotating parts of the feeder during operation! Deactivate the feeder always before doing maintenance works. Please store this manual. We suggest the storage a copy of the manual in the vicinity of the device. Technical and optical changes of this manual are subject to alterations.
-
Page 7: Intented Use
Intented use Intented use The SENECT Indoor Feeder is designed to feed fish automatically with feed ranging from 2 to 9 mm pellet size. To control the feeder, a SENECT control unit with actuator output ports (e.g. SENECT|ONE AQUACULTURE|CONTROL) is required. -
Page 8: Installation And Start-Up
2. If you are using feed smaller than 4 mm, insert the insertion plate. 3. Connect the cable to your SENECT control unit at one of the green marked actuator outputs OUT. 4. Fill the feeder with fish feed. -
Page 9: Setting The Feeder Settings
Getting started Setting the feeder settings To switch the feeder on, follow the next steps: 1. Activate the output port with the function „Feeder“ Select in the Menu / Output ports the plug, where the feeder is connected and select as function „Feeder“. 2. - Page 10 Getting started By pressing , you can delete entries from the list. o Interval With the interval function, you can define time intervals on which the output should be activated. Enter here the duration of each event, e.g. always switch on for 5 minutes and the interval between the events, e.g.
- Page 11 Getting started As feeder functions can be selected: 1. Daily feed amount 2. Daily increase 3. Low O2 protection 4. Air pressure 5. Temp. Protection 6. Temp. Correction 7. Alarm = No feeding 8. Light stimulation Depending on the selected feeder functions the displayed dynamic submenu can be: Daily feed amount When the feeder is calibrated, you can set here the total...
- Page 12 Enter in this menu item the concentration of oxygen below which the feeding is cancelled. Note, that it is necessary that a SENECT oxygen sensor O2S needs to be connected and that this sensor is selected under “plug”. Air pressure: Since the barometric pressure can have an...
- Page 13 (which refers to 16°C) according to the measured temperature. Light stimulation: Some fish feeders from SENECT are equipped with LEDs to attract the fish to the location of the feeder prior to the feeding. You can select in this...
-
Page 14: Maintenance And Cleaning
Maintenance and cleaning and 10 s and weight it. Type in the weight respectively. Now, you can use the function “Daily feed amount” and when you adjust the duration of the feeding, you can see directly the feed weight which corresponds to the duration. -
Page 15: Technical Data
Technical data Technical data Dimensions: Ø280 x 380 mm Material: PVC, PP App. 7 l (for ~5 kg of feed, Volume: depending on grain size) Feed grain size: 2 to 9 mm Cable length: Voltage: 12 - 24 V DC PWM Power consumption: Typ. -
Page 16: Technical Sketch
Technical sketch Technical sketch... -
Page 17: Information About The Correct Disposal
Alternatively, you can also send the product back to the producer. The SENECT GmbH & Co. KG is member of the Stiftung Elektro-Altgeräte Register and the products are registered (WEEE-Reg.-Nr.: DE37193510).
