User Manual
CM580-2x Series Big Industrial PC
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen
Tel：+86-592-3799895
Fax：0592-5975885 P：361009
Web： www.caimore.net Email:oversea@caimore.com
版权所有2003-2009
----
----
才茂通信 通畅天下
Advertisement
Table of Contents
Summary of Contents for Caimore CM580-2 Series

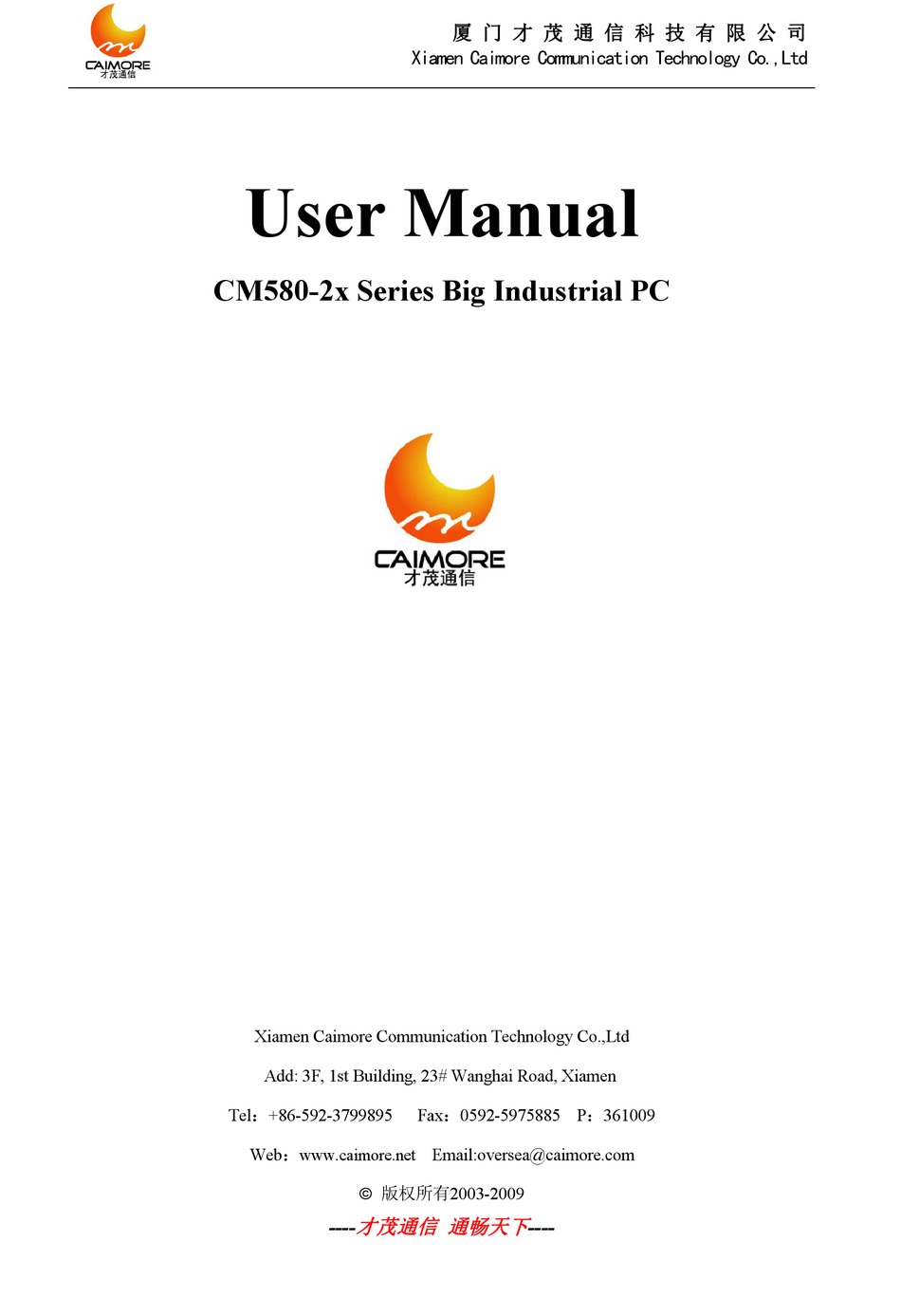

- Page 1 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd User Manual CM580-2x Series Big Industrial PC Xiamen Caimore Communication Technology Co.,Ltd Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel：+86-592-3799895 Fax：0592-5975885 P：361009 Web：...
- Page 2 Xiamen Caimore communication technology co.,Ltd. Trademark： Caimore and other Caimore brands are possessed by Xiamen Caimore communication technology co.,Ltd. Other brands or registered brands mentioned in this page are possessed by their owner.
-
Page 3: Table Of Contents
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Catalog 1.1 Manual Purpose............................... 1 1.2 Precautions..............................1 2.1 Product Introduction............................2 2.2 Appearance..............................3 2.3 Features................................3 2.4 Performance Parameters and Interface Types....................4 3.1 Overview................................. -
Page 4: Manual Purpose
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 1 Instruction 1.1 Manual Purpose This manual describes how to install, configure, and use the products. By reading this manual, users can set up and use the product according to the specific use environment and requirements. -
Page 5: Product Introduction
2.1 Product Introduction Xiamen caimao industrial control equipment, is an integrated new industrial computer independently developed by CaiMore, is a traditional industrial PC + industrial routing + high-speed 4G communication + video monitoring, 4 in 1 integration design, highly integrated, powerful function, rich interface. It can help customers easily cope with current and future engineering challenges. -
Page 6: Appearance
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd The machine is designed in strict accordance with the requirements of the industrial level, the appearance of all closed, all aluminum structure design concept, with advanced hard disk shock, dust, heat dissipation patent technology. -
Page 7: Performance Parameters And Interface Types
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd (pictures, advertisements, etc.) Support Android system. 2.4 Performance Parameters and Interface Types Main processor Hi3535 Operation System Android System Language Chinese / English... - Page 8 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Display Port 1 HDMI: 1920*1080 / 1280*720 6 standard USB2.0 interface, 1 standard USB2.0 USB Interface OTG interface, 1 standard USB2.0 DEBUG interface...
-
Page 9: Overview
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 3 Installation 3.1 Overview CM580 requires correct installation to achieve the designed function, and the installation of equipment shall be conducted under the guidance of the technical staff of the company. -
Page 10: Connection And Installation
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 3.3 Connection and Installation External size: 227.00*119.90*50.00mm, as shown in the figure below (unit: mm):... -
Page 11: External Interface Diagram
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4 Hardware Functionality 4.1 External Interface Diagram 4.1.1 Front View 4.1.2 Rear View 4.2 Interface Specification 4.2.1 Display Interface Provide 1 HDMI hd display interface. If you need to connect to the VGA interface of the display screen, you can convert through "HDMI to VGA signal conversion line"... -
Page 12: Usb Interface
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.2.2 USB Interface Provide 6 standard USB2.0 interfaces, 1 OTG interface and 1 DEBUG interface, support USB mouse/keyboard, USB camera, USB infrared touch screen and other peripherals, plug and play. -
Page 13: Audio Interface
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd SLEEP: Under the condition of power on, press SLEEP key, the device will enter the SLEEP state, and the data currently in the running state will be saved in the hard disk;... -
Page 14: Led Indicator Light
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.2.6 LED Indicator Light 5 indicators are provided: WIFI indicator, GPS indicator, SYS system indicator, Power indicator and Online module indicator 4.2.7 Ethernet Interface... -
Page 15: Tf Card Interface
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4.2.9 TF Card Interface Provide a standard bullet TF card interface and a built-in SSD interface (mSATA), with maximum support of 256GB. 4.2.10 SIM/UIM Card Interface Provide 1 standard drawer SIM/UIM card interface. -
Page 16: Android System
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5 Software Functionality 5.1 Android System 5.1.1 Display Function Support HDMI output. Support "HDMI to VGA signal conversion line" (with USB power interface) for conversion output. -
Page 17: Sound Card
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.1.3 Sound Card Support local sound card and HDMI dual channel sound card, local sound card supports audio input device such as headset, microphone and audio output device such as speaker... -
Page 18: Serial Port
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.1.4 Serial Port You can use serial port tool “ComAssistant”, click the drop-down box to select the node: /dev/ttymxcCOM1~/dev/ttymxcCOM6 (Corresponding to hardware COM1~COM6): 5.1.5 Ethernet... -
Page 19: Wifi
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.1.6 WiFi WIFI function is supported, which can be used as WIFI client. Parameter configuration in android system (setting -- ->WLAN--> on) can search WIFI signal and select the corresponding WIFI to connect. -
Page 20: Hard Disk
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.1.9 Hard Disk Hard disk (fat32 format is supported by default) mount contents can be read and written by connecting OTG line and PC device: computer -> sabresd-mx6dq ->sata. You can also... -
Page 21: Local Video Viewing And Advertising
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.1.10 Local Video Viewing and Advertising You can watch local video and play advertisements through "Caimao technology" app in android system or other apps provided by our company. -
Page 22: Remote Video Viewing
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.1.11 Remote Video Viewing Need to remote to watch video, can login: http://120.26.120.149:8030 (login account and password can get to our technical personnel), find the corresponding device (factory... -
Page 23: Technical Support
厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Technical Support www.caimore.net If there is any doubt, please access our official website: or contact technical support staff and whose email address is support@caimore.com.
