corner post trim
roof
Section
roof
cap
roof connectors
ROOF CUPOLA
roof connecting
flange

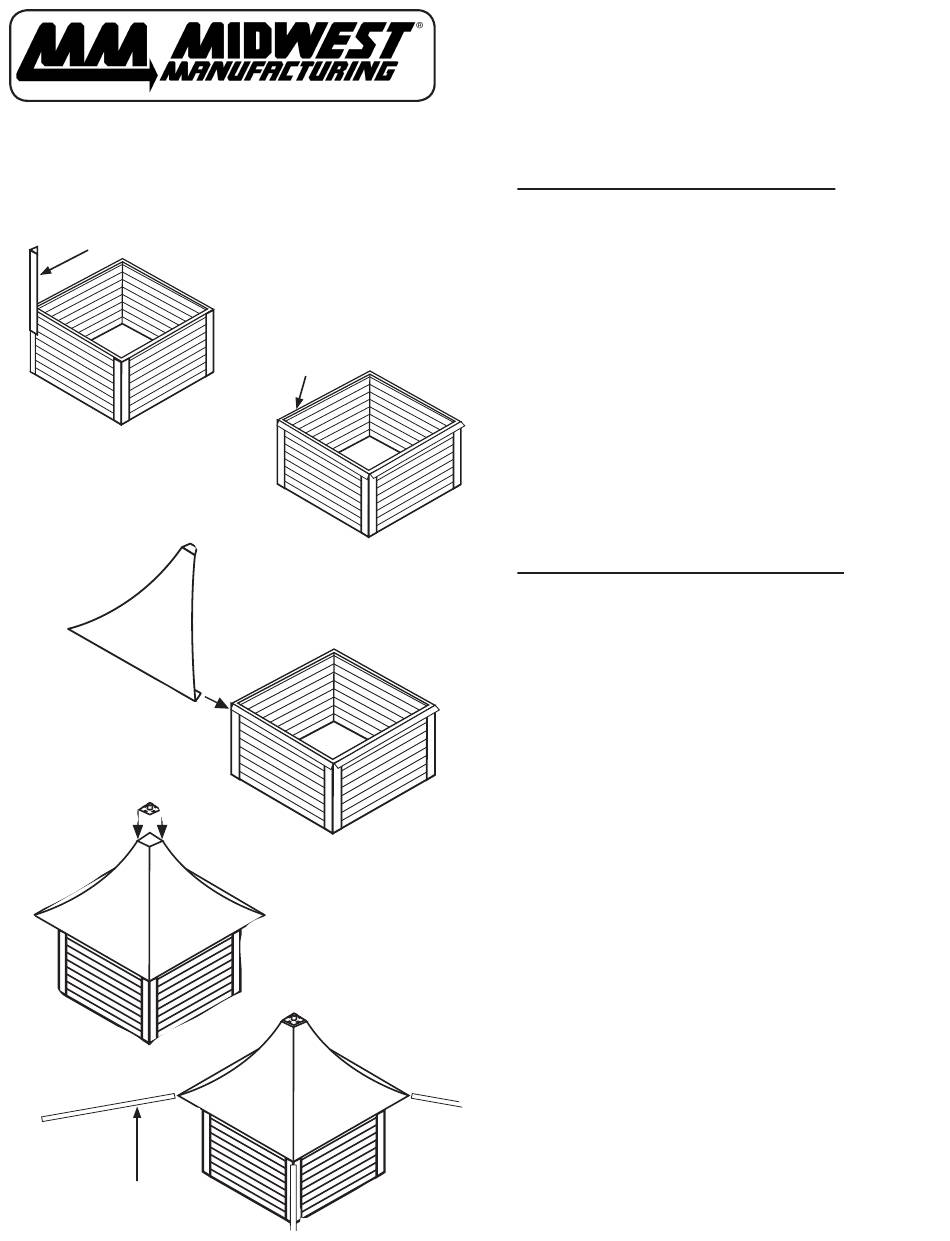

baSe aSSembly
1) Slide the four corner poStS
trim on the Side aSSemblieS.
2) once all four SideS are connected,
turn the baSe over So the roof
connecting flange iS up.
roof aSSembly
1) attach roof cap and bottom
plate to one roof Section with
#14×1" tech ScrewS.
(finger tight at thiS point)
2) Slide the roof SectionS into the
roof connecting flange of each
Side aSSembly. the top of each
roof Section SlideS between the
roof cap and bottom plate and iS
faStened in place.
3) Slide each roof connector
4-5" at a time until all of the
connectorS are under the
roof cap.
4) after all of the roof
connectorS are driven
under the roof cap,
tighten the tech
ScrewS and trim the
roof connectorS off
to create a finiShed
appearance.
Advertisement
Table of Contents
Summary of Contents for Midwest ROOF CUPOLA
- Page 1 ROOF CUPOLA baSe aSSembly 1) Slide the four corner poStS corner post trim trim on the Side aSSemblieS. roof connecting 2) once all four SideS are connected, flange turn the baSe over So the roof connecting flange iS up. roof aSSembly...
- Page 2 flaShing aSSembly lay out the Six pieceS aS Shown and bend the deSignated pieceS* to conform to the pitch of the roof. aSSemble the end pieceS aS Shown with Sheet metal ScrewS. fasteners the flaShing iS pre-cut to a 4/12 pitch.
