2.

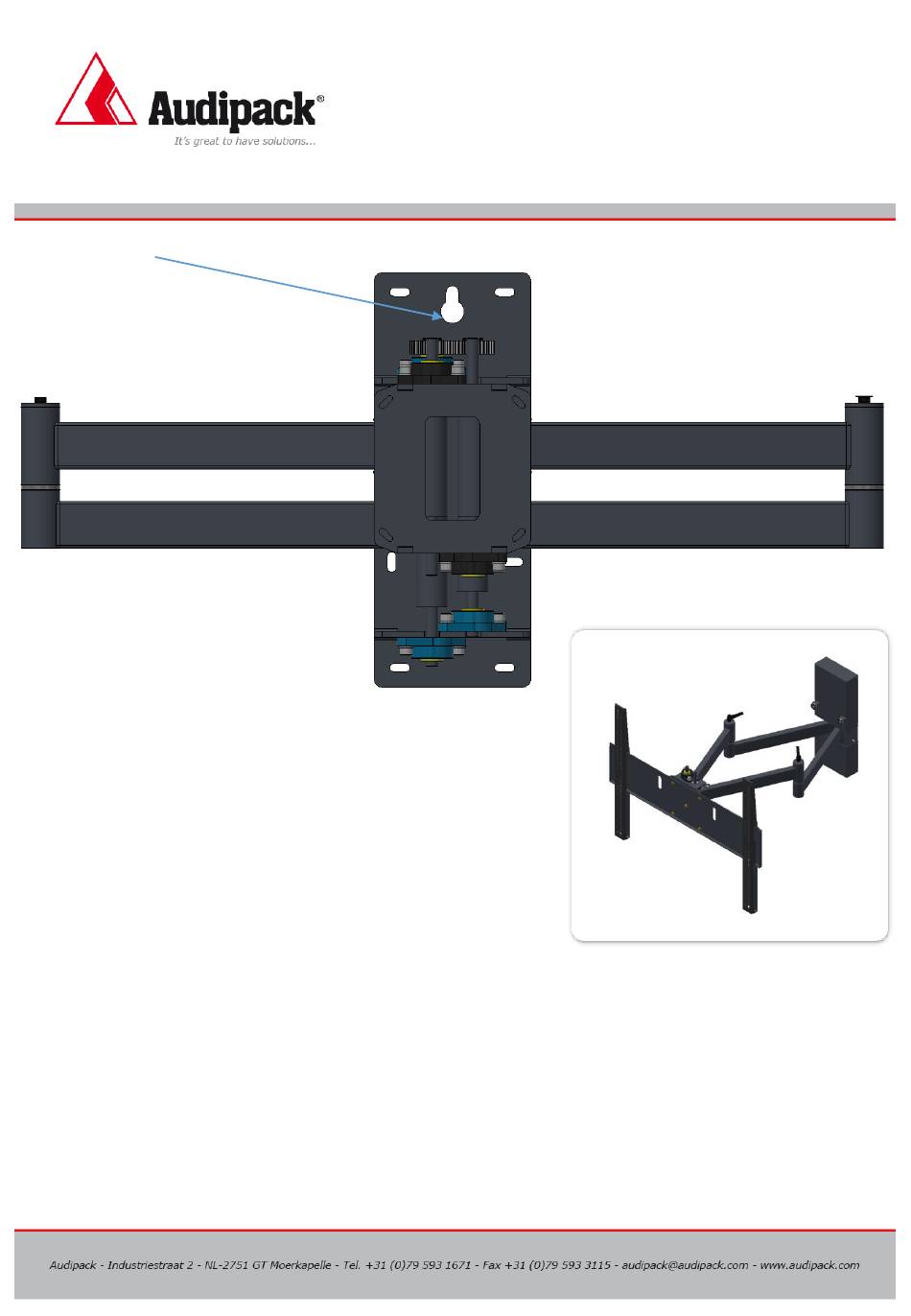

1. Remove the 2 covers from the wall plate
2. Pre-drill the first mounting hole in the wall for the key-hole in the wall
plate
3. Install the wall arm to the wall via the single bolt
4. Measure out the wall arm and set it level.
5. Determine the other drilling holes to fasten the wall plate securely to
the wall. Use ALL mounting holes in the mounting plate.
6. Fasten the wall arm well and re-instal the cover plates.
7. Install the screen with a UFPRO or other fitting bracket for the screen
to the wall arm using the 170x170 mm pattern using M8 bolt.
Installation manual FWA-120
