This manual serves the following
ComNet Model Numbers:
CNFE3FX1TX2C8TX
CNFE3FX1TX2C8RX
CNFE3FX1TX2C4DX
CNFE3FX1TX2C8TX/M
CNFE3FX1TX2C8RX/M
CNFE3FX1TX2C4DX/M
INSTALLATION AND OPERATION MANUAL
CNFE3FX1TX2C[/M] Series
CONTACT OVER ETHERNET MODULES

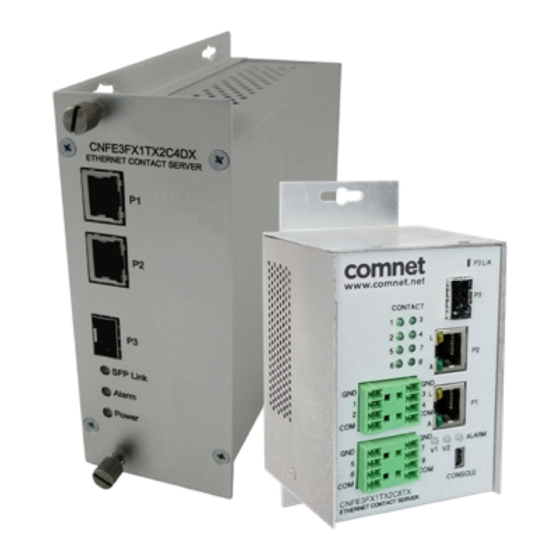

The ComNet CNFE3FX1TX2C[/M] series is an industrially hardened three-port
intelligent switch with light management functionality and an integrated contact
closure server. The 100BASE-FX port supports conventional CAT-5e/CAT-6 copper or
optical transmission media by selection of the appropriate ComNet SFP* module. A
summary fault alarm provides indication via a form c relay in the event of loss of optical
link or operating power. The 10/100BASE-TX ports support both auto-negotiation and
automatic MDI/MDI-X crossover for full and half-duplex operation; manual MDI/
MDI-X switching is not required. The integrated contact closure server is available
with 4 or 8 channels and supports individual user selectable wet or dry inputs. Form
A relay outputs feature individual user selection of normally open or normally closed
operation via the built-in web GUI. The contact server supports 4 modes of operation
including one-to-one, one-to-many, many-to-one and stand-alone.
The internal/self-contained 9 to 36 VDC or 24 VAC power supply features
redundant power inputs, for the highest possible reliability. The simple to install,
CNFE3FX1TX2C/M Series is DIN-rail or panel-mountable, and is ideal for mission-
critical applications where very high levels of reliability and network availability are of
the utmost importance.
Advertisement
Table of Contents
Summary of Contents for Comnet CNFE3FX1TX2C[/M] Series
- Page 1 The 100BASE-FX port supports conventional CAT-5e/CAT-6 copper or CNFE3FX1TX2C8TX optical transmission media by selection of the appropriate ComNet SFP* module. A CNFE3FX1TX2C8RX summary fault alarm provides indication via a form c relay in the event of loss of optical CNFE3FX1TX2C4DX link or operating power.
-
Page 2: Table Of Contents
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Hardware description Hardware Features Module Input/Output Mapping Software Features Cables Ethernet Cables 10/100BASE-T(X) Pin Assignments Console Cable WEB Management Configuration by Web Browser System Information Switch Port Configuration Active Ping Check Configuration Authentication Username and Password Configuration... -
Page 3: Hardware Description
CAT-5e/CAT-6 copper or optical transmission media by selection of the appropriate ComNet SFP module. A summary fault alarm provides indication via a form c relay in the event of loss of optical link or operating power. The 10/100BASE-TX ports support both auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation;... -
Page 4: Hardware Features
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Hardware Features » 2 × Redundant DC power inputs » Operating Temperature: -40 – 75ºC » Storage Temperature: -40 – 85ºC » Operating Humidity: 5% – 95%, non-condensing » 2 × 10/100Base-T(X) Fast Ethernet port »... - Page 5 INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Mechanical Drawing of ComFit CNFE3FX1TX2C MODULE including contact connector pin-out Mechanical Drawing of Mini CNFE3FX1TX2C/M MODULE including contact connector pin-out INS_CNFE3FX1TX2C[/M] Series TECH SUPPORT: 1.888.678.9427 10/11/11 PAGE 5...
-
Page 6: Module Input/Output Mapping
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Module Input/Output Mapping Module LEDs Color Status Description PWR1 Green DC Power Input 1 Good No power detected PWR2 Green DC Power Input 2 Good No power detected STATUS Green Initialization passed Failed 10/100Base-T(X) Ethernet ports... -
Page 7: Software Features
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Software Features » Supports SNMPv1/v2c » Event notification by SNMP trap and Alarm Relay Output » Web-based GUI and USB Console CLI configuration » Enable/disable ports » IGMPv3 Multicast host » Static MAC lock (per port) »... -
Page 8: Cables
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Cables Ethernet Cables The CNFE3FX1TX2C4DX switches have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5, & 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). -
Page 9: Console Cable
You can connect them to a PC with USB Ports using the supplied USB to USB Mini B male plug cable. The CNFE3FX1TX2C4DX has a fiber optic port that utilizes an SFP connector. ComNet offers a wide selection of SFP modules that offer different fiber type, connector type and distances. Please remember that the TX port of Switch A should be connected to the RX port of Switch B. -
Page 10: Web Management
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES WEB Management Attention: While installing and upgrading firmware, please DO NOT power off equipment while the firmware is upgrading! Configuration by Web Browser This section provides instruction on configuration through the Web browser. About Web-based Management An embedded HTML web site resides in the flash memory on the CPU board. - Page 11 INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Main Index page INS_CNFE3FX1TX2C[/M] Series TECH SUPPORT: 1.888.678.9427 10/11/11 PAGE 11...
-
Page 12: System Information
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES System Information The switch system information is provided here Label Description Enabled protocols Summary table of enabled protocols Temperature Unit’s internal board temperature reading Port link status Link status and port disable INS_CNFE3FX1TX2C[/M] Series TECH SUPPORT: 1.888.678.9427... -
Page 13: Switch Port Configuration
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Switch Port Configuration Unless you have reason to change this setting, it is recommended to leave the negotiation set to auto. The link segment requires forcing the settings. Both ends of the link need to have the same selection. -
Page 14: Active Ping Check Configuration
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Active Ping Check Configuration The active ping check function allows the switch to check that a configured IP address is alive on each of the RJ45 ports. If the specified IP address becomes unreachable then the switch will perform the action selected in the Failure Action menu. -
Page 15: Authentication Username And Password Configuration
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Authentication Username and Password Configuration The username and password entered here are also used in the CLI. INS_CNFE3FX1TX2C[/M] Series TECH SUPPORT: 1.888.678.9427 10/11/11 PAGE 15... -
Page 16: Firmware Upgrade
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Firmware Upgrade Upgrade Firmware allows you to update the firmware of the switch. Before updating, have your Windows firmware update application ready and the firmware image is available. Many features are not available during the firmware update process so please, observe the network topology before upgrading. -
Page 17: Factory Defaults
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Factory Defaults This function restores the system configuration back to the factory default values. All parameters will revert back to the original factory default values except the network configuration settings. INS_CNFE3FX1TX2C[/M] Series TECH SUPPORT: 1.888.678.9427... -
Page 18: System Reset
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES System Reset This feature will perform a system reset. Some system configuration changes require a system reset to take effect: -File System updates -Network configuration changes - Static Mac Lock changes - Static Mcast routing After a system reset there may be a delay of up to 15 seconds before the device becomes responsive again. -
Page 19: Network Interface Configuration
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Network Interface Configuration Label Description Host Name Assign a name to the device (this is used for CLI and SNMP functions) Enable DHCP To enable or disable the DHCP client function. When DHCP client function is enabled, the switch will be assigned the IP address from the network DHCP server. -
Page 20: Smnp
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES SMNP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth. -
Page 21: Alarm Contact
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Alarm Contact CNFE3FX1TX2C4DX Contact Configuration, allows for the setting of what happens when specific instances occur during the operation of the unit allowing for the triggering of the alarm contact. CNFE3FX1TX2C4DX Contact Override, allows for the override and force setting of the alarm contact for testing and troubleshooting purposes. -
Page 22: In Contact Ethernet Link
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES In Contact Ethernet Link Allows for enabling a link between Input Contacts on a Host device to Output Contacts on a Remote device(s). Device’s input contacts can be configured either One to One, or One to Many. -
Page 23: Out Contact Ethernet Link
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Out Contact Ethernet Link Allows for enabling a link between a remote Input Contact device(s) and the local output contacts. Device’s output contacts can be configured either One to One, or One to Many. -
Page 24: Contact Status
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Contact Status Allows for a display of the current overview of the current states for the input and output contacts. Contact Configuration Contact Configuration allows for the configuration of each port for both input and output to trigger SMNP Traps. -
Page 25: Static Multicast Routing Per Port
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Static Multicast Routing Per Port Label Description Enable Enable static multicast MAC routing MAC Addr. Destination Multicast MAC address of the stream Port Number Ports to be included in the multicast route Apply Select Apply to activate the configurations. -
Page 26: Static Mac Lock Configuration
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Static MAC Lock Configuration Label Description Enable Enable static MAC locking MAC Addr. MAC address of the device that is allowed to forward and receive traffic. Packets will be dropped for MAC addresses not listed in the table stream... -
Page 27: Port Guardian
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Port Guardian The Port Guardian feature provides a high security managed port lock out mode and when enabled will power down the port as soon as a link loss status is detected when a cable is disconnected. -
Page 28: Port Guardian - Cli Reset
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Port Guardian – CLI Reset Command Description portguardian show Will display any ports that are currently in port lockout fault state. Command Description portguardian clear Will clear any ports that were previously in port lockout fault state. -
Page 29: Command Line Interface Management
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Command Line Interface Management Configuration by Command Line Interface (CLI). About CLI Management Besides WEB-base management, the CNGE4+2SMS also supports CLI management for network configuration. You can use USB console to manage the switch by CLI. - Page 30 INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Step 3. Select the COM port number Step 4. The COM port properties setting, 115200 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control.
- Page 31 INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Step 5. Hit enter to initiate the connection and receive the username prompt. After entering the username and password the console will be presented with a CLI prompt. Enter “?” or “help” to list the commands More detailed help for each command is available using help in front of the command name.
-
Page 32: Firmware Upgrade Procedure
INSTALLATION AND OPERATION MANUAL CNFE3FX1TX2C[/M] SERIES Issuing a “netinfo” command will display the ip address of the switch To change the network configuration using the CLI, the following commands must be used: -setip -setgw -setdns Save_netcfg if you want to save these changes in the startup configuration. Not using this command will not save the changes persistently. - Page 33 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2020 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
