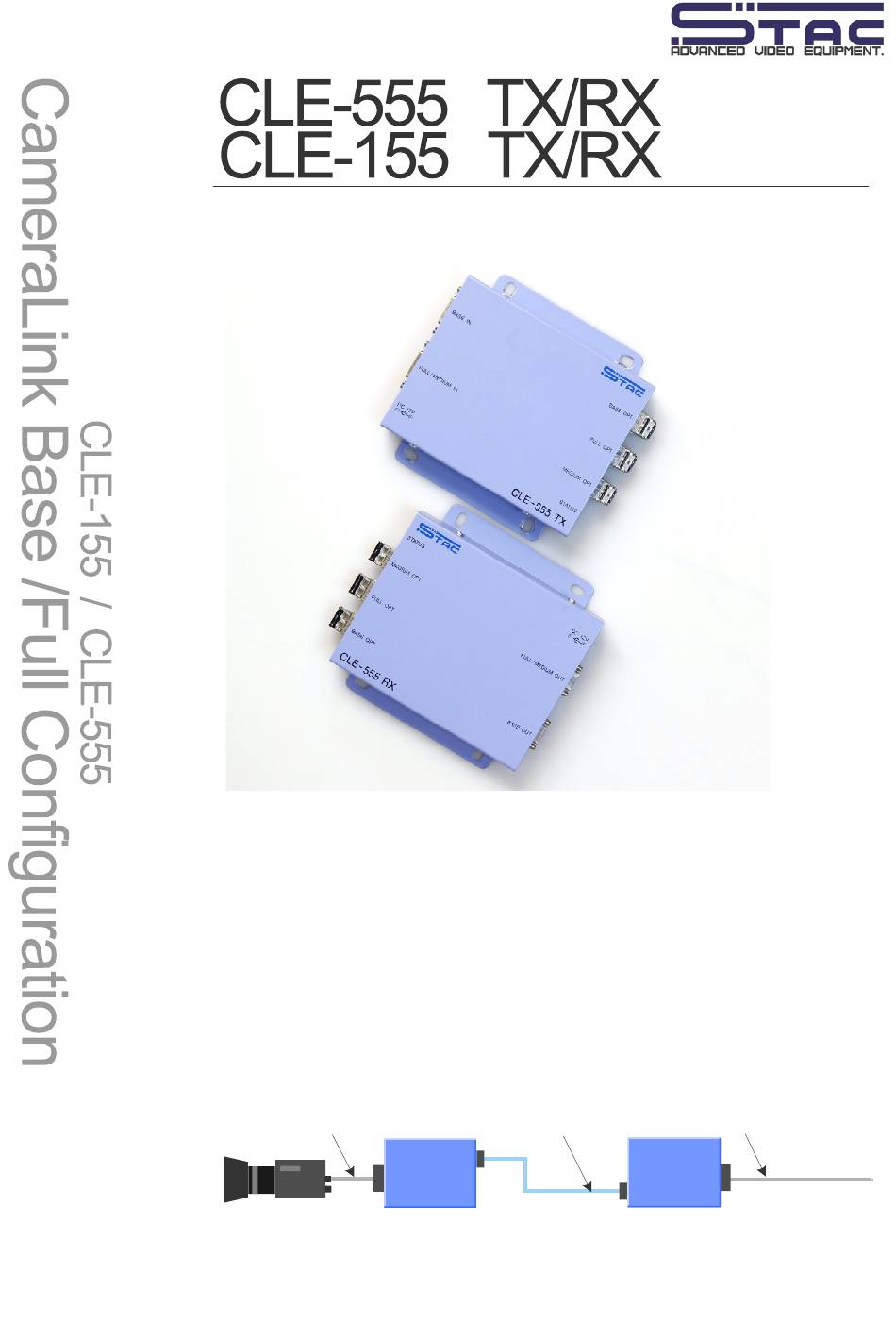

CameraLink EXTENDER Opt.
Overview
These are cable extender that enable image transfer and camera control up to
300m by optical fiver cable transfer(multi mode). It also supports
PowerOverCameraLink(PoCL).
Features
- Camera control from remote location by two-way communication.
- Correspond to the clock frequency of 85MHz or less.
- Clock signal quality is improved by jitter cleaner function, it realized stable
image data transfer even by cameras with large clock jitter.
- PoCL compliant/no compliant is switchable with DIP SW of the bottom on unit
TX/RX.
Standard connection example
CameraLink
cable
CLE-155
CameaLink Base Configuration
compatible camera
CLE-555
CameaLink Full Configuration
compatible camera
Optical cable
(Max 300m)
CLE-155
CLE-555
TX
CameraLink
cable
CLE-155
CLE-555
RX
CLE-155
CameaLink Base
Configuration compatible
device
CLE-555
CameaLink Full Configuration
compatible device
Advertisement
Table of Contents
Summary of Contents for Stac CLE-555 TX
- Page 1 CameraLink EXTENDER Opt. Overview These are cable extender that enable image transfer and camera control up to 300m by optical fiver cable transfer(multi mode). It also supports PowerOverCameraLink(PoCL). Features - Camera control from remote location by two-way communication. - Correspond to the clock frequency of 85MHz or less. - Clock signal quality is improved by jitter cleaner function, it realized stable image data transfer even by cameras with large clock jitter.
- Page 2 (LC-Duplex) CameraLink output AC adapter AC adapter CameraLink output 155RX CameraLink output side (SDR) 555RX CameraLink output side (SDR) Specifications Items CLE-155 TX/RX CLE-555 TX/RX CameraLink connecter MDR/SDR MDR/SDR CameraLink CameaLink Base CameaLink Full Input/Output signal Configuration compliant Configuration compliant...
