SeaLand Mass Flow Meter Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mass Flow Meter
Operation Manual
Standard: GB/T 31130-2014
Zhejiang System No. 03010003
Ver. V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mass Flow Meter and is the answer not in the manual?

Questions and answers

Related Manuals for SeaLand Mass Flow Meter

Summary of Contents for SeaLand Mass Flow Meter

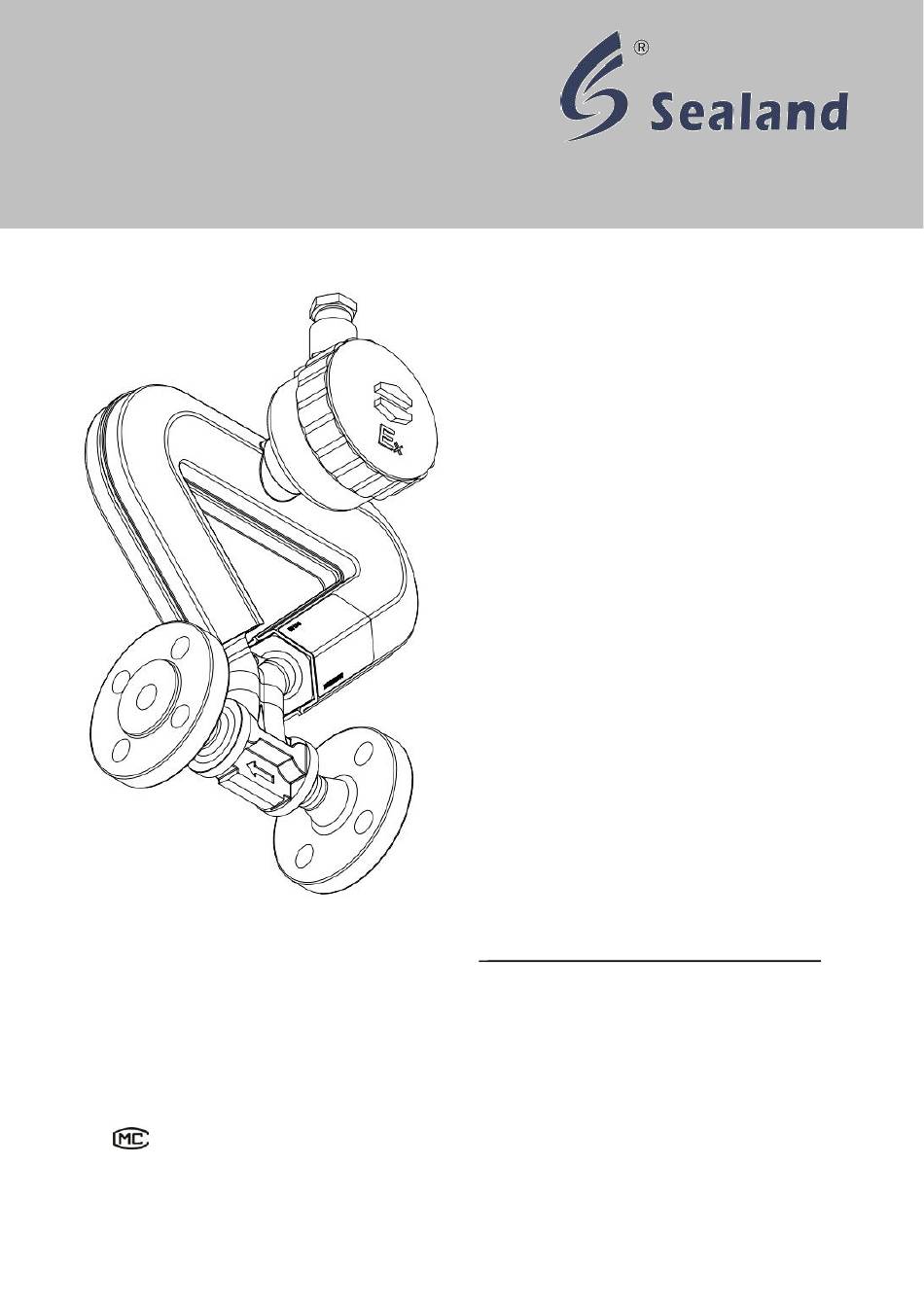

  • Page 1 Mass Flow Meter Operation Manual Standard: GB/T 31130-2014 Zhejiang System No. 03010003 Ver. V1.2...
  • Page 2 Sealand mass flow meter. The meter is produced according to National Regulation of Coriolis Mass Flow Meter GB/T 31130-2014, approved & certified. Each sensor has its own paired transmitter. Please do not change any component in case of failure.

  • Page 3: Table Of Contents

    Contents Chapter 1 Specifications........................1 1.1 Introduction............................1 1.2 Operating principle........................1 1.3 Features............................1 1.4 Operating conditions........................1 Chapter 2 Composition........................1 2.1 Mass flow sensor..........................1 2.1.1 Main parameters........................2 2.1.2 Dimension..........................2 2.2 Mass flow transmitter........................2 2.2.1 Main features.........................3 2.2.2 Dimension..........................3 Chapter 3 Installation...........................3 3.1 Installation steps...........................
  • Page 4 Chapter 7 Operation...........................13 7.1 Calibration coefficient setting....................13 7.2 Min. flow cut-off setting......................14 7.3 Pulse output frequency setting....................15 7.4 Pulse equivalent setting......................16 7.5 Zero calibration setting......................16 7.6 Fix frequency output setting..................... 17 7.7 Total clearance........................... 18 7.8 Volume calculation setting......................19 7.9 Measurement unit setting......................

  • Page 5: Chapter 1 Specifications

    1.2 Operating principle Mass flow meter measures the mass based on Coriolis effort. The operating principle involves inducing a vibration of the tube through which the fluid passes. The vibration, though not completely circular, provides the rotating reference frame that gives rise to the Coriolis effect.

  • Page 6: Main Parameters

    Table 2-2 Dimension/mm 2.2 Mass flow transmitter Mass flow transmitter is a micro-programming-centered electronic system, which supplies thrust to sensor, transforms sensor signal into mass flow signal and others, and improves accuracy in accordance with temperature parameter. Zhejiang Sealand Technology Co.,Ltd.

  • Page 7: Main Features

    Choose correct installation site; c) Install the meter according to direction mark on sensor; d) Connect transmitter & sensor with 12-pin cable; e) Start. Zhejiang Sealand Technology Co.,Ltd.

  • Page 8: Announcements

    Current signal from sensor is extremely weak, only several millivolt even when full range; thus, sensor should be well grounded to filter other signals. There are 2 requirements as follows. a) The electric potential of ground terminal of sensor and transmitter should be the same as that of fluid. Zhejiang Sealand Technology Co.,Ltd.

  • Page 9: Start

    Power voltage will cause severe injury or death! Cut off the power before installing the transmitter. Wrong installation will cause damage and low accuracy of the meter! Follow the introduction, and keep the transmitter working well. Zhejiang Sealand Technology Co.,Ltd.

  • Page 10: Chapter 4 Wiring

    There are 2 optional voltages for transmitter, AC220V/DC24V. Power cable section should be more than 0.8mm , and length less than 300m. Pic. 4-1 General wiring diagram of transmitter F23X Pic. 4-2 General wiring diagram of transmitter F210 (same wiring color as F23X) Zhejiang Sealand Technology Co.,Ltd.

  • Page 11: Wiring Between Sensor & Transmitter

    5.1 Operation panel Pic. 5-1 Transmitter schematic There are 2 infrared sensors, SET and SELECT, between which there is a indicator light, which blinks green once per second during operation, and blinks red when infrared sensor detects operation. Zhejiang Sealand Technology Co.,Ltd.

  • Page 12: Operation Interface

    Table for more information, if you do not know the meaning of abbreviation. 5.2.1 Main interface 1 On main interface 1, sweep over SET to switch from mass total to mass flow rate alternately; SELECT from volume total to volume flow rate alternately. Pic.5-3 Main interface 1 Zhejiang Sealand Technology Co.,Ltd.
  • Page 13 |N|: absolute value of N %+10.3e: calculated by scientific notation with 10-digit & sign, retaining 3-decimal. %+10.nf: output floating-point data, with 10-digit & sign, retaining n-digit. All: all units, outputs parameters according to display accuracy, regardless of parameter unit. Zhejiang Sealand Technology Co.,Ltd.

  • Page 14: Main Interface 2

    5.2.3 Developer interface Pic.5-5 Developer interface Password hint: Hexadecimal code, randomly generated by system Password: Denary code, calculated manual. The calculation method is reserved by developer, because improper operation in this interface will leads to invocatable damage. Zhejiang Sealand Technology Co.,Ltd.

  • Page 15: Display Set Interface

    COM port connected with meter. Start the software, comes the following interface automatically. Select the right COM port and click Connect; do not change any other parameter. You can click Connection on tool bar to disconnect or connect again. Zhejiang Sealand Technology Co.,Ltd.

  • Page 16: Process Variable Monitoring

    It is recommended to set it no less than 50ms to guarantee communication stability and operation fluency. 6.5 Mainboard information This interface is to read mainboard number and mainboard real-time operating temperature. You can click Functions --> Mainboardmessage to callout. Zhejiang Sealand Technology Co.,Ltd.

  • Page 17: Density Calibration

    SET=Move left. c.Press SET until indicator light turns red & blinks, to confirm password(or press SELECT until indicator light turns red & blinks, to cancel operation). 5.Comes interface ; the cursor points to FCF(Calibration Coefficient) Zhejiang Sealand Technology Co.,Ltd.

  • Page 18: Min. Flow Cut-Off Setting

    MFC(Min. flow cut-off); press SET until indicator light turns red & blinks; input new MFC( refer to Step 4); done; 6.Press SELECT until comes pop-up menu, asking whether to return to main interface; sweep over SET for yes, SELECT for no, and sweep over SET/SELECT again to confirm. Zhejiang Sealand Technology Co.,Ltd.

  • Page 19: Pulse Output Frequency Setting

    ● By software Start the software; check tool bar on the top; click Functions --> Configuration; comes setting interface; click Modified on the right of MaxFrePulse; input new MF; click OK to confirm; click Application; done. Zhejiang Sealand Technology Co.,Ltd.

  • Page 20: Pulse Equivalent Setting

    Sweep over screen to move to nearby digit, from SET to SELECT=Move right, SELECT to SET=Move left. c. Press SET until indicator light turns red & blinks, to confirm password( or press SELECT until indicator light turns red & blinks, to cancel operation). Zhejiang Sealand Technology Co.,Ltd.

  • Page 21: Fix Frequency Output Setting

    Step 4); done; 6.Press SELECT until comes pop-up menu, asking whether to return to main interface; sweep over SET for yes, SELECT for no, and sweep over SET/SELECT again to confirm. Zhejiang Sealand Technology Co.,Ltd.

  • Page 22: Total Clearance

    Sweep over screen to move to nearby digit, from SET to SELECT=Move right, SELECT to SET=Move left. c. Press SET until indicator light turns red & blinks, to confirm password( or press SELECT until indicator light turns red & blinks, to cancel operation). Zhejiang Sealand Technology Co.,Ltd.

  • Page 23: Volume Calculation Setting

    Reset Mass Total; done. 7.8 Volume calculation setting Mass flow meter measures mass directly; however, some customer wants to show in volume unit, such as L, gallon. In this way, transmitter has to process mass into volume. This function is meaningless if you apply mass directly.

  • Page 24: Measurement Unit Setting

    3. Press SET until indicator light turns red & blinks, comes the password setting interface; 4. Input old password a. Sweep over SET/SELECT to set the value, SET=Decrease, SELECT=Increase. b. Sweep over screen to move to nearby digit, from SET to SELECT=Move right, Zhejiang Sealand Technology Co.,Ltd.

  • Page 25: Screen Power-Off Setting

    Ex-mark Ex ib IIBT1~T6 Gb/Ex ib II CT1~6 Gb requirements, and transmitter Ex d[ib] II BT4Gb requirements; The meter can be installed in explosive gas environment IIB, and temperature T3 intrinsically safe equipment, with ex-proof system as follows. Zhejiang Sealand Technology Co.,Ltd.

  • Page 26: Chapter 9 Troubleshooting

    It shows 6 kinds of error, storage error, sensor error, temperature sensor error, zero calibration failure, meter initialization, and others. The light is green under smooth operation, and turns red when not. Zhejiang Sealand Technology Co.,Ltd.

  • Page 27: Troubleshooting

    Chapter 10 Completeness The meter consists of sensor, transmitter and the cable to connect them. Please mark in PO if companion flange is needed. Besides, there will be one operation manual, certificate of approval in the package. Zhejiang Sealand Technology Co.,Ltd.
  • Page 28 With few mechanical vibration and crush; c) Temperature from -20°C to +60°C; d) Humidity less than 80%, better about 50%; e) Please clear up the sensor if storage used one; f ) Performance will be influenced if storage in the open. Zhejiang Sealand Technology Co.,Ltd.

  • Page 29: Appendix

    & blinks. Long-press SELECT until comes pop-up Return to main interface 4s < SELECT menu, sweep over SET twice as Pic. 7-2 Sweep over screen as Pic. 7-1 Interface shift, Value shift SET→SELECT=Move right 0.1s<time<0.5s SELECT→SET=Move left Zhejiang Sealand Technology Co.,Ltd.

  • Page 30: Appendix 2 Abbreviation Explanation Table

    Min. flow cutoff value Configuration Pulse output frequency Pulse equivalent PeroformAutoZeo Zero calibration Auto zero Zero point offset Zero point flow value Fixed frequency output Fix_f_out Fixed frequency output status Mass total Clear Total Volume total Zhejiang Sealand Technology Co.,Ltd.
  • Page 31 浙江新蓝科技有限公司 Zhejiang Sealand Technology Co., Ltd. No. 460, Jinhai 1st Road, Binhai ETDZ, Wenzhou, Zhejiang, China, 325025 Tel.: +86-577-56908075 Fax: +86-577-56908077 Mob.: +86-15858846172 Skpye: untilstarsrunout Email: admin@chinasealand.com, will@chinasealand.com Web.: www.chinasealand.com...
