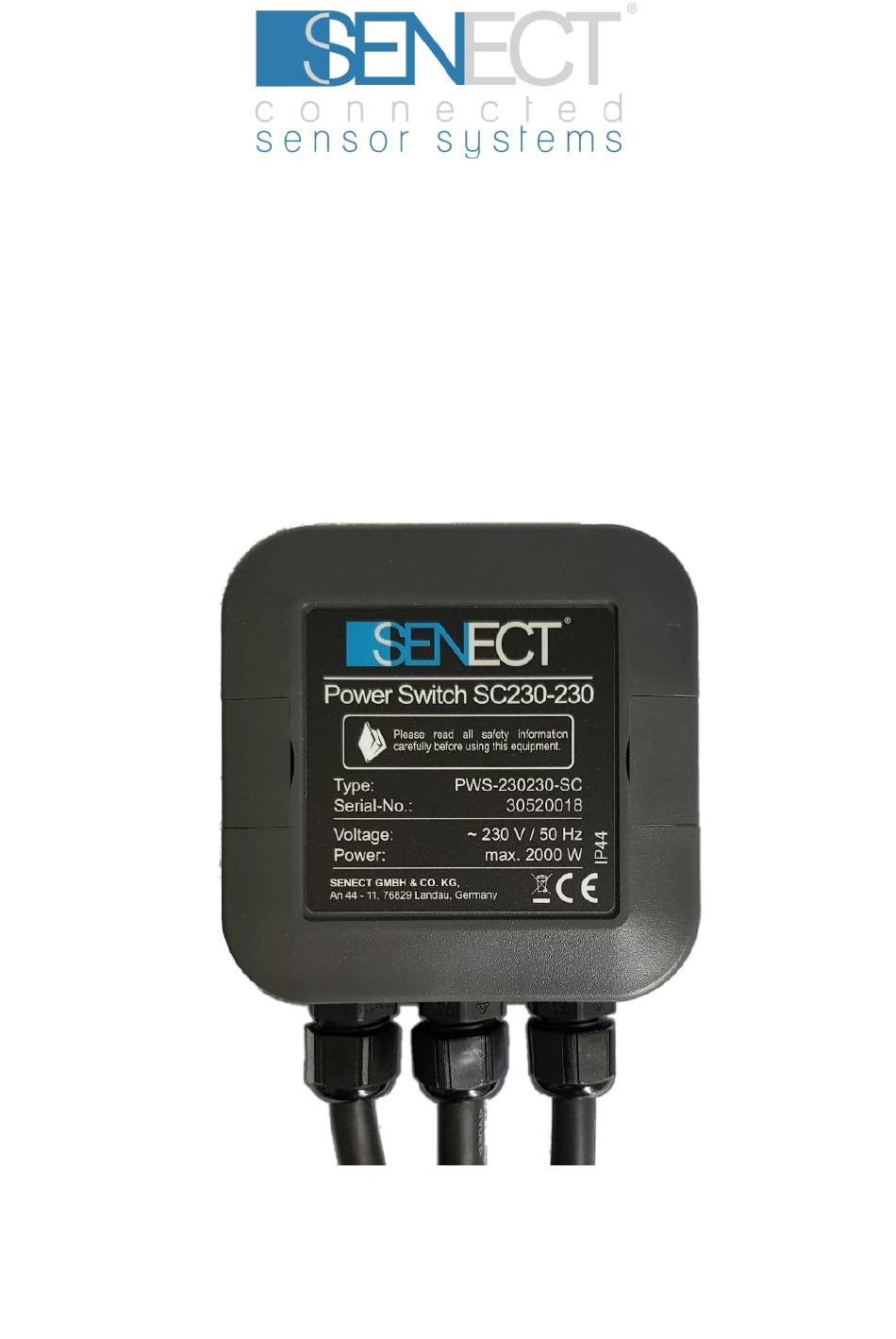

- Page 1 SENECT Power Switch SC230-230 Manual...
-
Page 2: Product Type
Read the warning and safety notes attentive. More information and latest software releases or documents can be downloaded from: www.senect.de Further information, application descriptions and answers to frequently asked questions can be also found on the SENECT Forum: http://forum.senect.de © Version 1.0 - FW00.90... -
Page 3: Table Of Contents
Table of contents Table of contents Product type .................. 2 Table of contents ................3 Used symbols and wording ............4 General Security Notes ..............5 Intended use .................. 7 Getting started ................8 Scope of delivery ............... 8 Note ................... 8 Installation and start-up ............ -
Page 4: Used Symbols And Wording
Used symbols and wording Used symbols and wording DANGER! Warning of life threatening dangers. WARNING! Warning possible life threatening and / or severe irreversible injuries. ATTENTION! Warning of possible medium or slight injury. ATTENTION! Follow the notes to avoid damage of equipment NOTE! Further information for the use of the device! -
Page 5: General Security Notes
General Security Notes General Security Notes The SENECT Power Switch SC 230-230 is used to switch 230 V AC consumers via the socket outlets of SENECT control units. As this is an electrical product, the usual requirements, as with all electrical appliances, must be met. - Page 6 General Security Notes Use only original SENECT® or SENECT® supplied or approved extension, replacement, or accessory parts. The Power Switch is not intended to be used by persons (including children) with limited physical, sensory or mental abilities or for lack of experience and/or knowledge, unless they are supervised or instructed by a person responsible for their safety on how to operate the device.
-
Page 7: Intended Use
Intended use Intended use The SENECT Power Switch SC 230-230 is used to switch 230 V AC consumers (max. 2000 W) via the socket outlets of SENECT control units and is intended for use in industrial fish farming and holding systems. The Power Switch can only be used in combination with compatible SENECT control units. -
Page 8: Getting Started
Getting started Getting started Scope of delivery o 1 x Power Switch SC230-230 o 1 x Manual Note Please check directly after delivery, that the package is not destroyed or damaged or was opened before. Please check also, that all parts as listed above are included. - Page 9 Connect the Schuko socket to your consumer and plug the mains plug (label "socket") into the socket. The Power Switch is now ready for operation and switches the consumer when the signal is activated at the socket output of your SENECT controller.
- Page 10 Getting started Quick Start Guide 1. open the fastening flaps. 2. attach the Power Switch. 3. connect the cable ( label " controller ") to the control unit (switchable 230 V socket on the underside). 4. connect the mains cable socket to the consumer. 5.
-
Page 11: Technical Data
Technical data Technical data Dimensions housing: 125 x 100 x 40 mm Cable length: each 1 m Voltage: 230 V AC Power consumption: << 2 W Temperature range: 0° to 40 °C Max. switching power: 2000 W Ingress protection: IP44... - Page 12 Technical data Fig. 1: Technical sketch of the Power Switch SC230-230...
-
Page 13: Information About The Correct Disposal
Alternatively, you can also send the product back to the producer. The SENECT GmbH & Co. KG is member of the Stiftung Elektro-Altgeräte Register and the products are registered (WEEE-Reg.-Nr.: DE37193510). -
Page 14: Guarantee
In case of any claims, contact us immediately per email or phone (info@senect.de or +49- 6341 - 95 95 210). Please describe your claim as detailed as possible so that we can provide a solution as fast as possible.
