Allegion LCN 8310-845 Installation Instructions

DESCRIPTION

TECHNICAL SPECIFICATIONS

Power supply:
Operating frequency:
Power consumption:
Output:
Max. voltage (relay contact):
Max. current (relay contacts):

PRECAUTIONS

‰ Shut off all power going to header before attempting any wiring procedures.
‰ Maintain a clean and safe environment when working in public areas.
‰ Constantly be aware of pedestrian traffic around the door area.
‰ Always stop pedestrian traffic through the doorway when performing tests that may result in
unexpected reactions by the door.
‰ ESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge.
Before handling any board, ensure you dissipate your body's ESD charge.
‰ Always check placement of all wiring before powering up to ensure that moving door parts will not
catch any wires and cause damage to equipment.
‰ Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of
installation.
‰ DO NOT attempt any internal repair of the components. Unauthorized disassembly or repair:
75.5306.02 ALLEGION TIME-DELAY MODULE 8310-845 20180702 75.5306.02 ALLEGION TIME-DELAY MODULE 8310-845 20180702

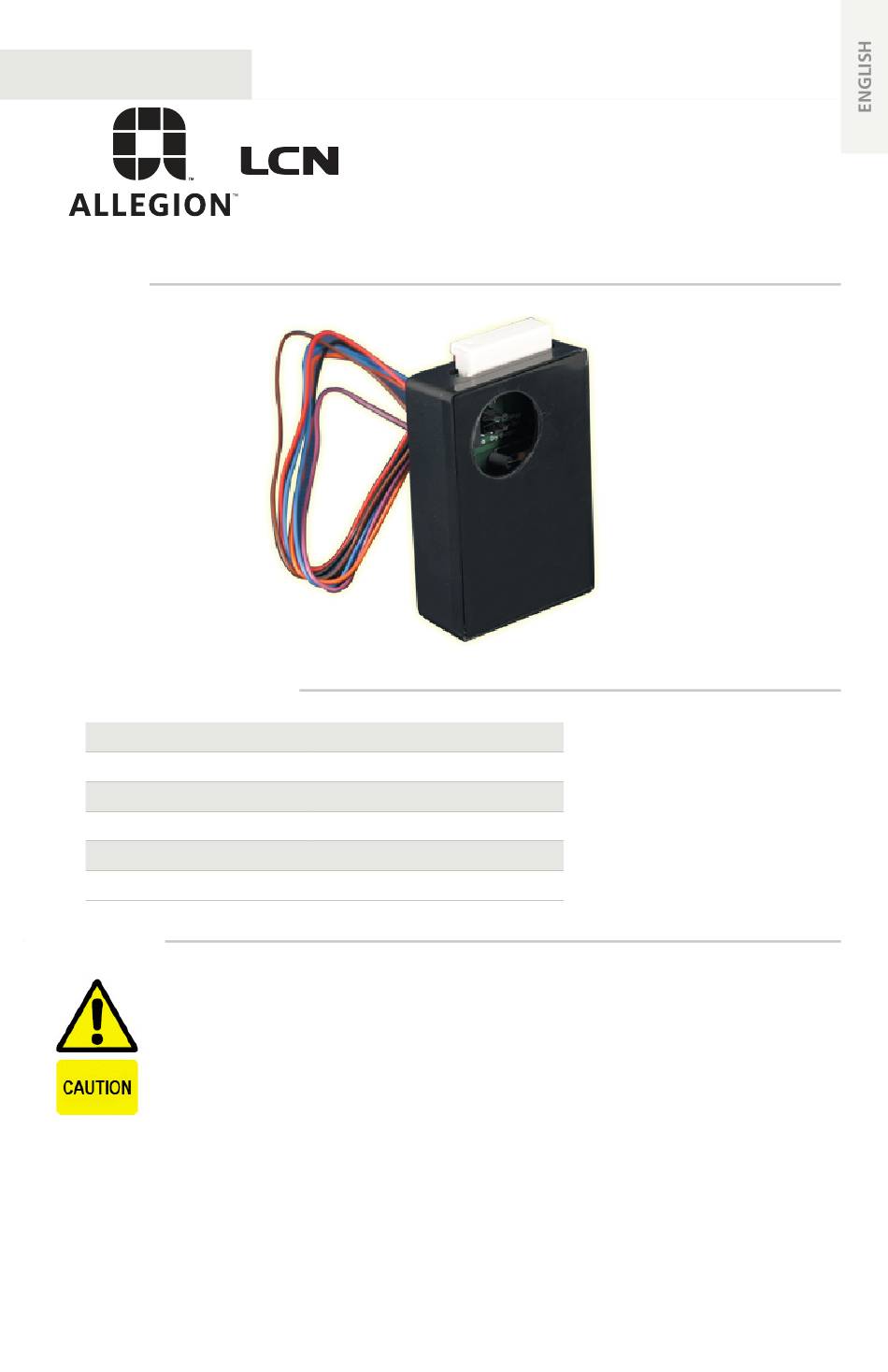

8310-845 TIME-DELAY MODULE
15 – 24 VAC/VDC -5 – 10%
4 MHz (microprocessor)
10 mA at rest; 50 mA max.
2 SPST relays
30 VDC / 120 VAC
1.0A DC / 0.5A AC
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided
warranty.
Delay-on-make / Delay-on-break time relay
Specifications are subject to change without
All values measured in specific conditions.
prior notice.
Page 1 of 4 Page 1 of 4
